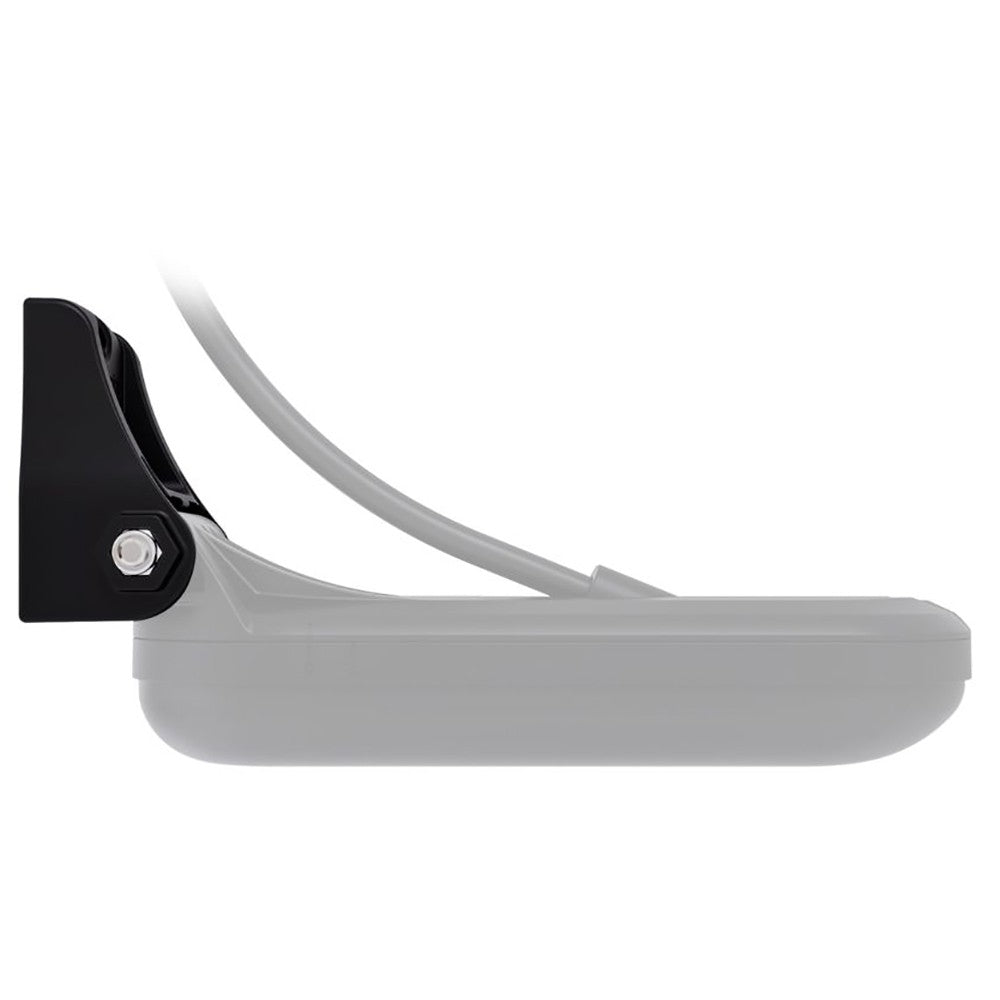

Raymarine Transom Mount Bracket For HV-100

Product Description

Raymarine Transom Mount Bracket for HV-100 provides secure transom attachment for the HV-100 HyperVision sonar transducer. This stainless steel bracket enables precise 3D sonar installation on planing hulls with impact protection.

Product Overview

Anglers and sportfishing boat operators use this bracket to mount HV-100 transducers for HyperVision 3D SideVision, DownVision, and conical scanning. The adjustable design optimizes sonar performance during high-speed trolling and structure scanning.

Key Specifications

• Stainless steel transom bracket with ratchet adjustment system.

• Includes hanger bracket, pivot hardware, and self-tapping screws.

• Fits 15-30° transom deadrise angles on fiberglass hulls.

• Compact boxed dimensions: 4"H x 8"W x 9"L; weight 0.6 lbs.

Technical Specifications

• Compatible exclusively with Raymarine HV-100 transducer module.

• Adjustment slots for 0.5-inch vertical and 10° angle positioning.

• A4 stainless steel hardware resists marine corrosion and vibration.

• Supports 6m transducer cable routing through transom or gunwale.

What's in the Box

• Single R70651 HV-100 Transom Mounting Bracket kit.

• Complete mounting hardware and adjustment washers included.
