Raymarine Wireless Station Kit for Ray90.

Raymarine Ray90 Modular VHF Radio System – Multi‑Station Wireless Kits
Expandable Black‑Box VHF with Full RayMic Control and Integrated DSC Safety

The Raymarine Ray90 VHF brings ultra‑clear communications and multi‑station control to both cruising and commercial vessels. Featuring a powerful 25‑watt Class D DSC transceiver and modular design, the Ray90 can operate either as a single station or a two‑station radio system when paired with a second wireless kit.

The black‑box transceiver mounts below deck while up to two wired RayMic handsets and speakers provide full access to radio functions anywhere onboard. With built‑in loudhailer and fog signal capabilities, the Ray90 offers professional‑grade audio clarity, solid aluminum construction, and NMEA 2000 / 0183 network integration.

---

Model Numbers

- Raymarine Wireless 1st Station Kit for Ray90 – Model: T70433
- Raymarine Wireless 2nd Station Kit for Ray90 – Model: T70434

---

Key Features

- Modular black‑box VHF design: Mount the transceiver below‑deck for a clean helm.
- Expandable system: Supports up to two RayMic handsets for multi‑station control.
- 25‑Watt  Class D Digital Selective Calling (DSC): meets global safety standards.
- Built‑in loudhailer and fog signal generator (30 W audio output with 2‑way talkback).
- Position tracking for up to 5 vessels via DSC and Raymarine MFD integration.
- Optional external GPS input via GA150 sensor for precise position reporting.
- Supports NMEA 2000 and NMEA 0183 networking.
- RayMic handsets with high‑brightness displays and backlit keypads.
- Aluminum transceiver housing: shock‑resistant and thermally efficient.
- Full Channel Scan, Dual/Tri‑Watch, and Weather Alert modes.
- ATIS support (for European inland waterways).

---

Model Comparison

---

Technical Specifications

- Frequency Channels: USA, International, Canada, and WX (weather band).
- Transmit Power: 25 W / 1 W selectable.
- Supply Voltage: 12 V DC (10.8 – 15.6 V).
- Networking: NMEA 2000 DeviceNet + NMEA 0183 data interface.
- Operating Temperature: –25 °C to +55 °C (–13 °F to 131 °F).
- Humidity: Up to 93% @ 40 °C.
- Waterproof Rating: IPX6 (handset / speaker assembly).
- Nominal Audio Output: 30 W via loudhailer / 4 W internal speaker.

---

What’s in the Box

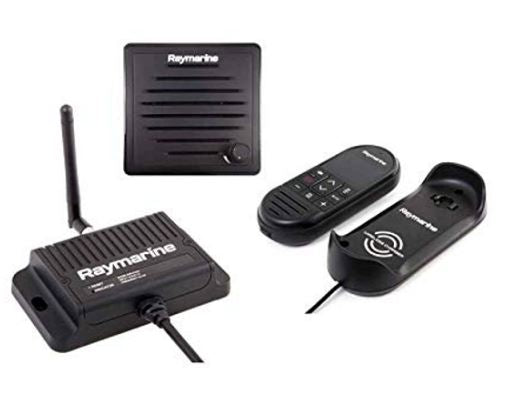

Wireless 1st Station Kit (T70433):
- Ray90 VHF Transceiver (black box unit)
- Primary RayMic wired handset
- Passive external speaker with mounting kit
- NMEA 2000 / 0183 connection cables
- Mounting hardware + documentation

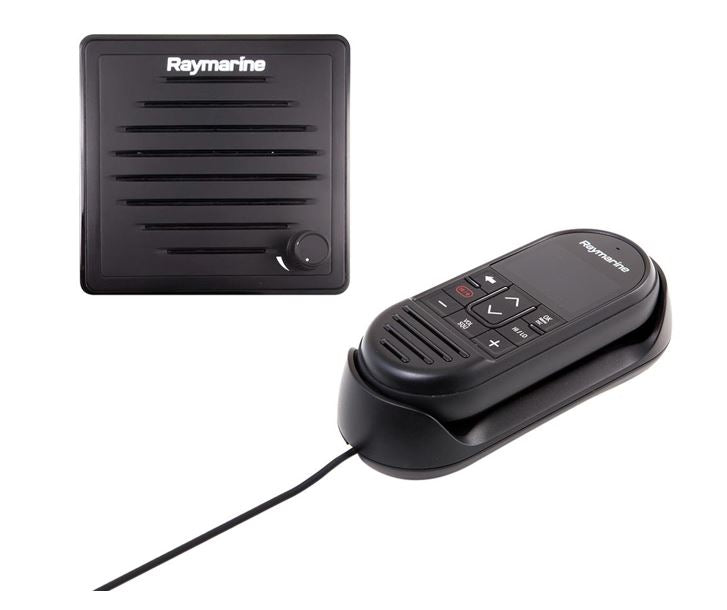

Wireless 2nd Station Kit (T70434):
- Secondary RayMic handset
- Speaker kit and cabling for multi‑station operation
- Mounting hardware + installation guide
