Seaview CG2090 90D Cable Seal Up To 13.5mm Wire Size Plastic Cover.

Seaview CG2090 Horizontal 90 Degree Cable Seals

Model Numbers

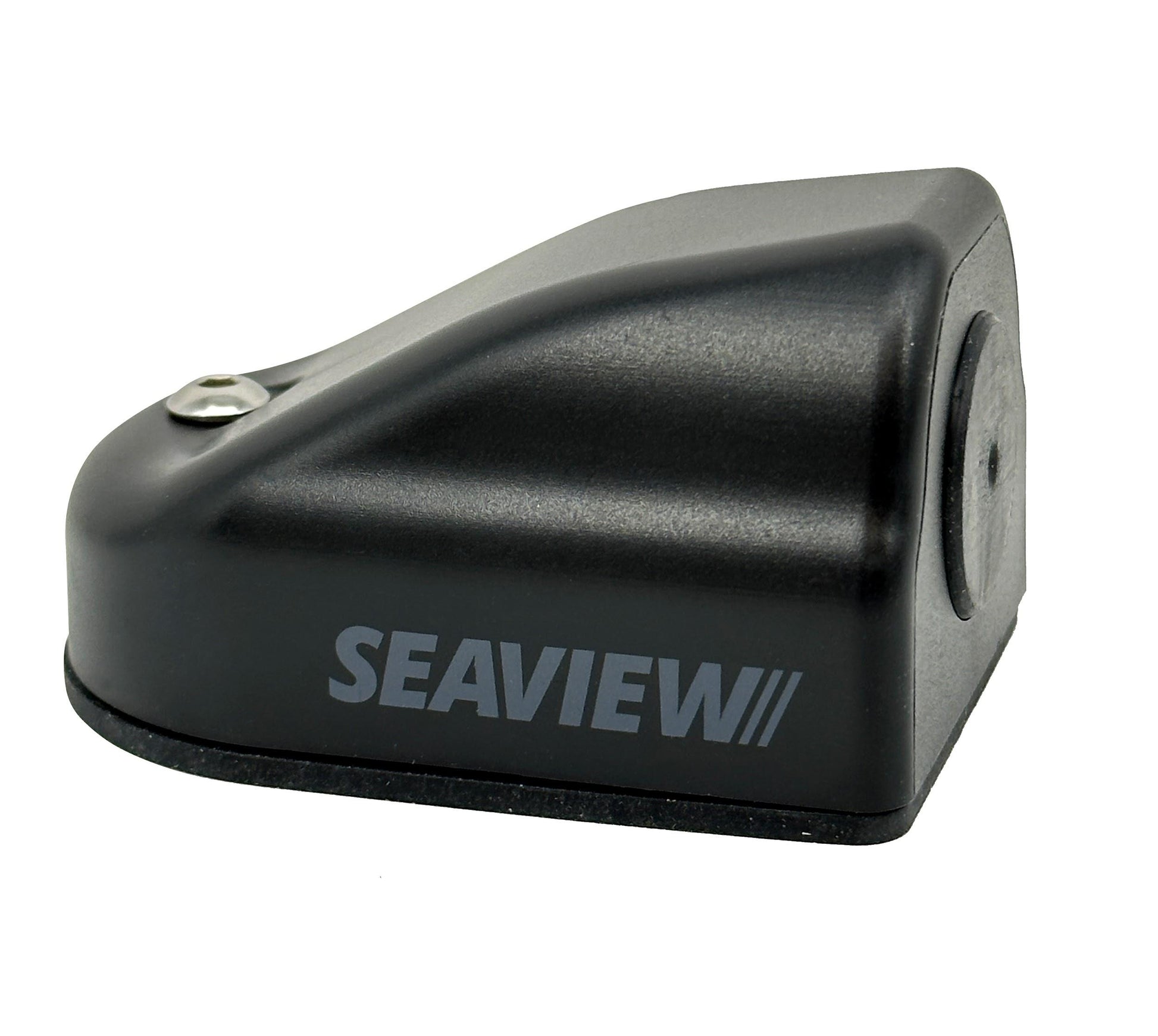

• CG2090: Black horizontal cable seal

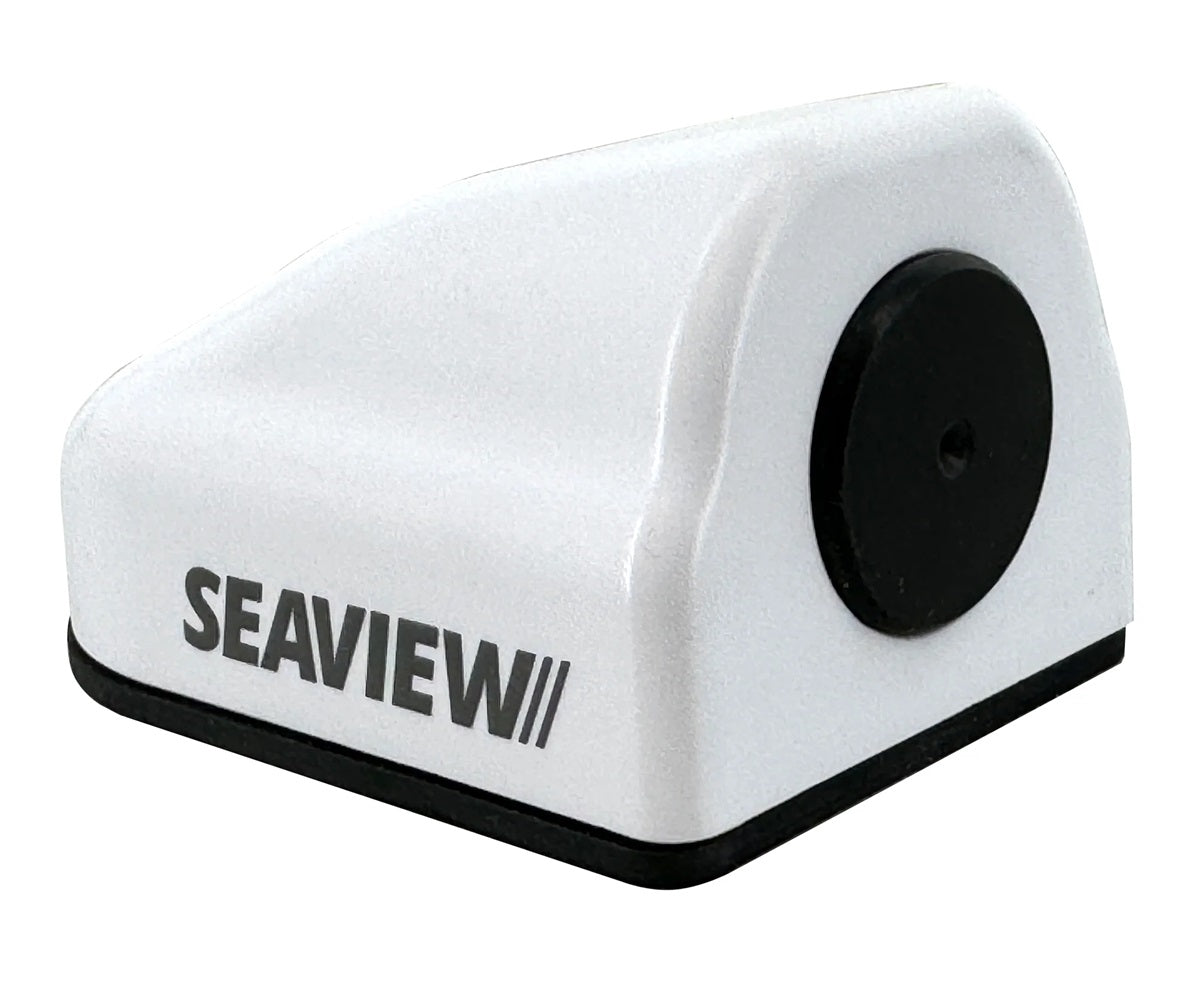

• CG2090W: White horizontal cable seal

Product Description

The Seaview CG2090 series are horizontally oriented, streamlined waterproof cable seals designed to protect cable penetrations with a 90-degree angle. These seals fit cable diameters up to 0.53" (13.5mm) and have a robust, impact-resistant plastic housing with a captive nut at the base for easy and secure assembly. The tapered rubber bung forms a watertight seal, ensuring IPX6 and IPX8 level protection against water ingress. Each seal includes a thick rubber base gasket and a set of drill tubes allowing you to drill custom-sized holes for cables during installation. These cable seals accommodate multiple cables as long as each has its own drilled hole with a minimum of 0.125" rubber spacing around the holes to maintain the seal's integrity. This design prevents the need to remove cable connectors during installation, simplifying the process. Stainless steel fasteners are included.

Key Features

• Fits cable diameters up to 0.53" (13.5mm)

• Horizontal 90-degree cable orientation

• Strong, impact-resistant plastic housing with captive base nut

• Tapered rubber bung and thick rubber base gasket for watertight seal (IPX6/IPX8)

• Comes with reusable brass drill tubes (6, 8, 10, 12mm) for custom hole sizing

• Accommodates multiple cables with individual holes spaced by at least 0.125" rubber

• Installation without removing cable connectors

• Includes stainless steel fasteners for assembly

Comparison Table

What’s In The Box

• One Seaview CG2090 or CG2090W horizontal cable seal

• Blank rubber tapered seal with molded drill points

• Set of brass drill tubes for hole drilling (6, 8, 10, 12mm)

• Thick rubber base gasket

• Stainless steel fasteners
