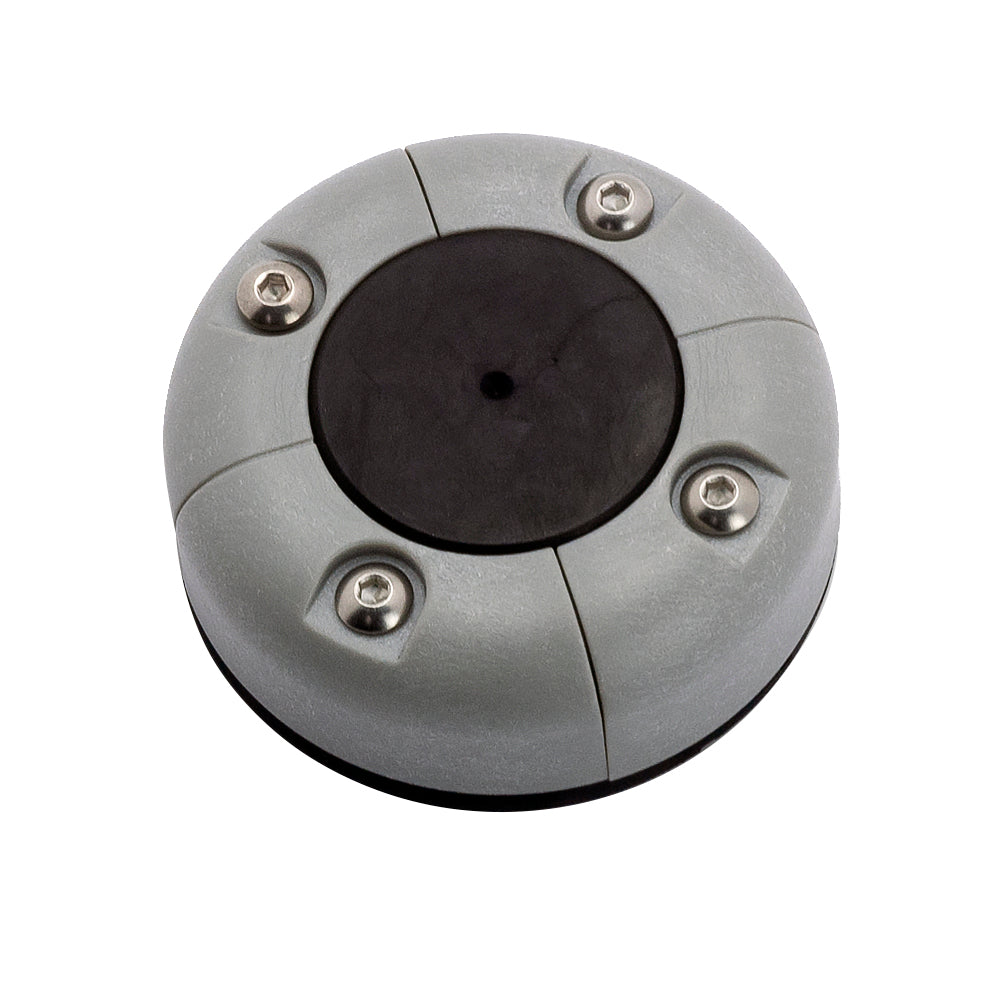

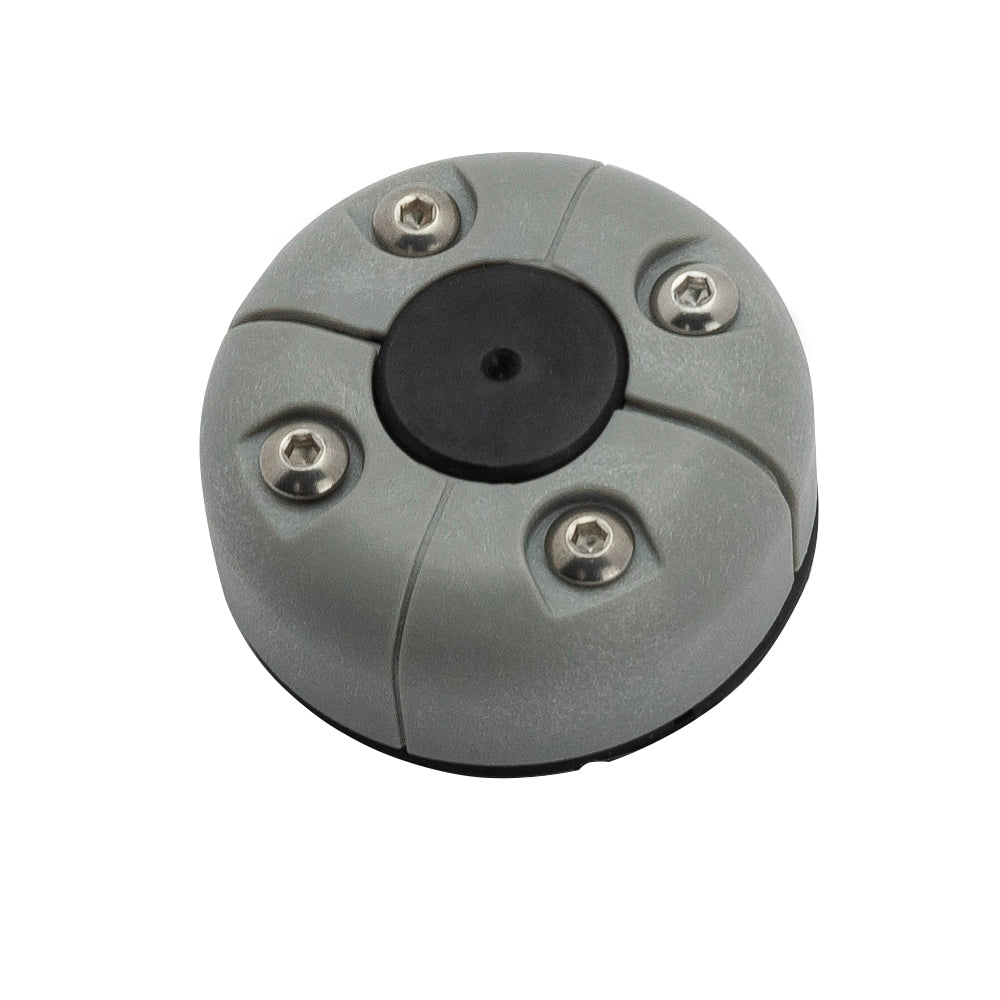

Seaview Retrofit Cable Seal Wire Size Grey Plastic Cover.

Seaview CG20PG2 and CG30PG2 Retrofit Cable Seals

Model Numbers

• CG20PG2: Retrofit Cable Seal for 2-10mm wire size (Grey Plastic Cover)

• CG30PG2: Retrofit Cable Seal for 2-15mm wire size (Grey Plastic Cover)

Product Description

The Seaview Retrofit Cable Seals are designed to provide a guaranteed watertight installation for cables already installed on marine vessels and other applications. These seals create a waterproof pass-through for antenna, transducer, lighting, power, and other cables without needing to remove factory-installed cable connectors, saving time and effort. These seals fit cable sizes from 2-10mm for CG20PG2 and 2-15mm for CG30PG2. The robust split-seal design and included hardware ensure secure, clean, and impact-resistant installation. Each cable seal includes a thick rubber base gasket and tapered rubber bung for a watertight seal, with IPX6/IPX7 certification for protection against heavy water exposure. Multiple cables can be installed as long as each cable has its own drilled hole with a minimum 0.125" rubber separation for proper sealing.

Key Features

• Allows waterproof installation on already installed cables without connector removal

• Fits cables from 2-10mm (CG20PG2) and 2-15mm (CG30PG2) wire diameter

• Split-seal design with tapered rubber bung ensures watertight seal

• Includes thick rubber base gasket to prevent water ingress

• IPX6 and IPX7 rated for heavy exposure to water and submersion

• Impact-resistant grey plastic housing

• Accommodates multiple cables with proper hole spacing and rubber buffer

• Includes all hardware for easy installation

Comparison Table

What’s In The Box

• One Seaview CG20PG2 or CG30PG2 retrofit cable seal (model specific size)

• Split rubber seal with molded drill locations

• Thick rubber base gasket

• Mounting hardware including captive nuts
