Seaview CG30 Series Cable Seals.

Seaview CG30 Series Cable Seals

Model Numbers

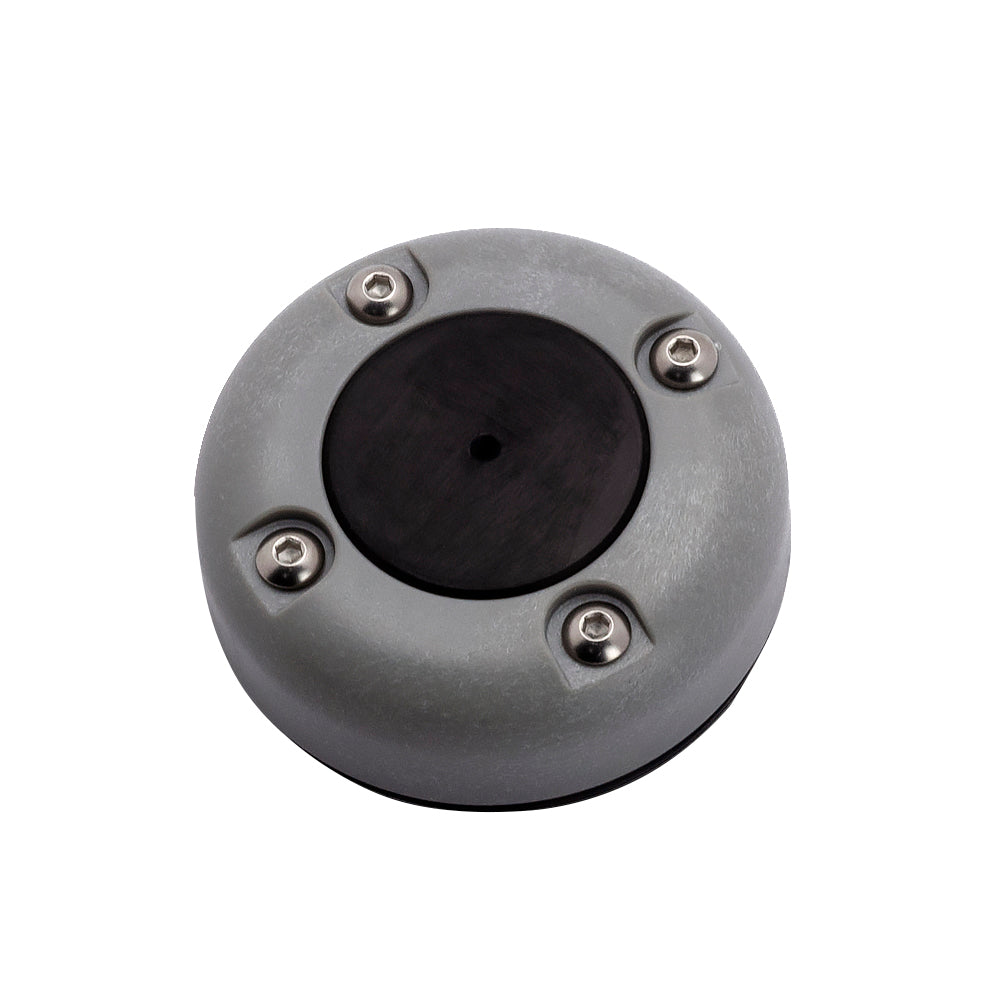

• CG30PG: Grey Plastic Cover, 2-15mm Wire Size

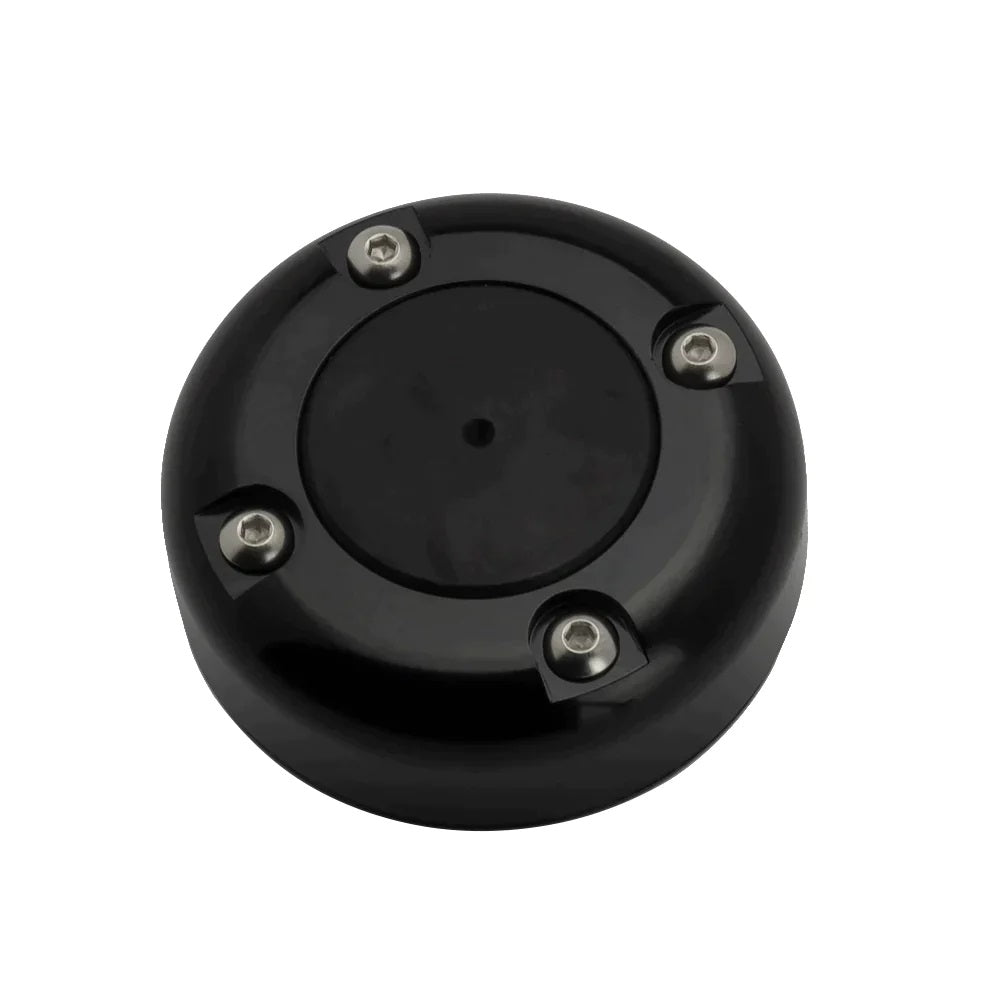

• CG30PB: Black Plastic Cover, 2-15mm Wire Size

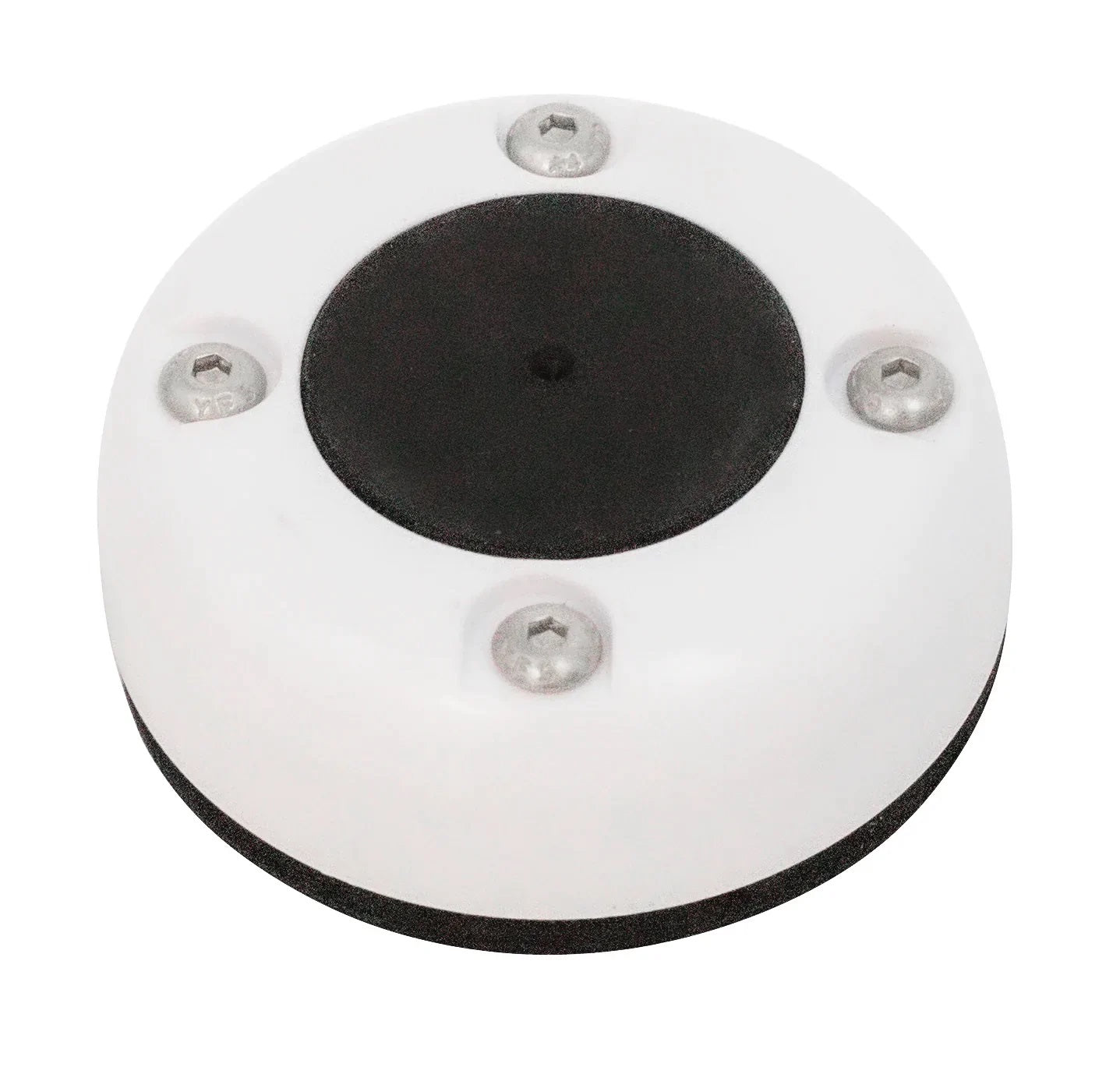

• CG30PW: White Plastic Cover, 2-15mm Wire Size

• CG30SB: Black Powder Coated Stainless Steel Cover, 2-15mm Wire Size

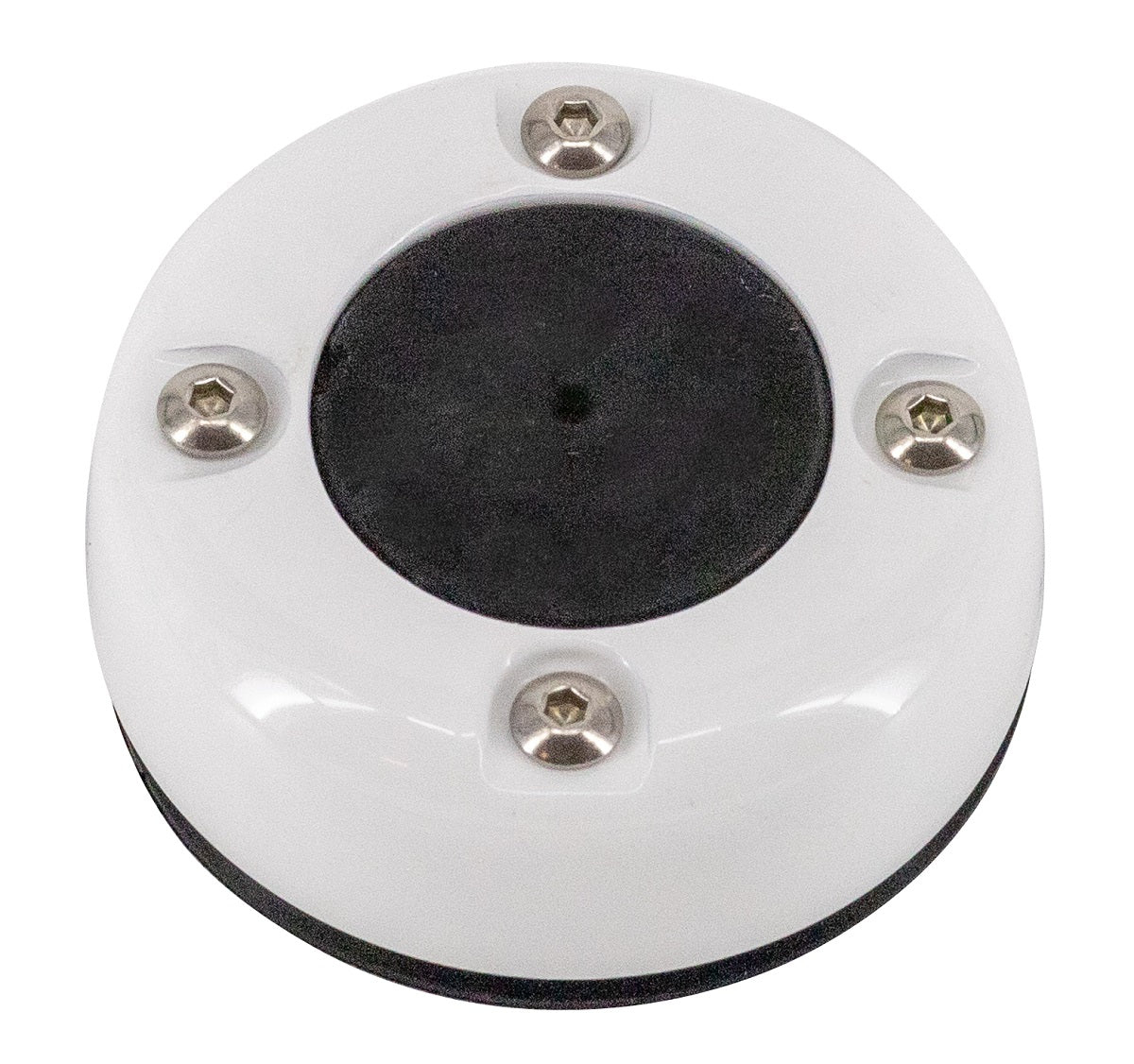

• CG30SW: White Powder Coated Stainless Steel Cover, 2-15mm Wire Size

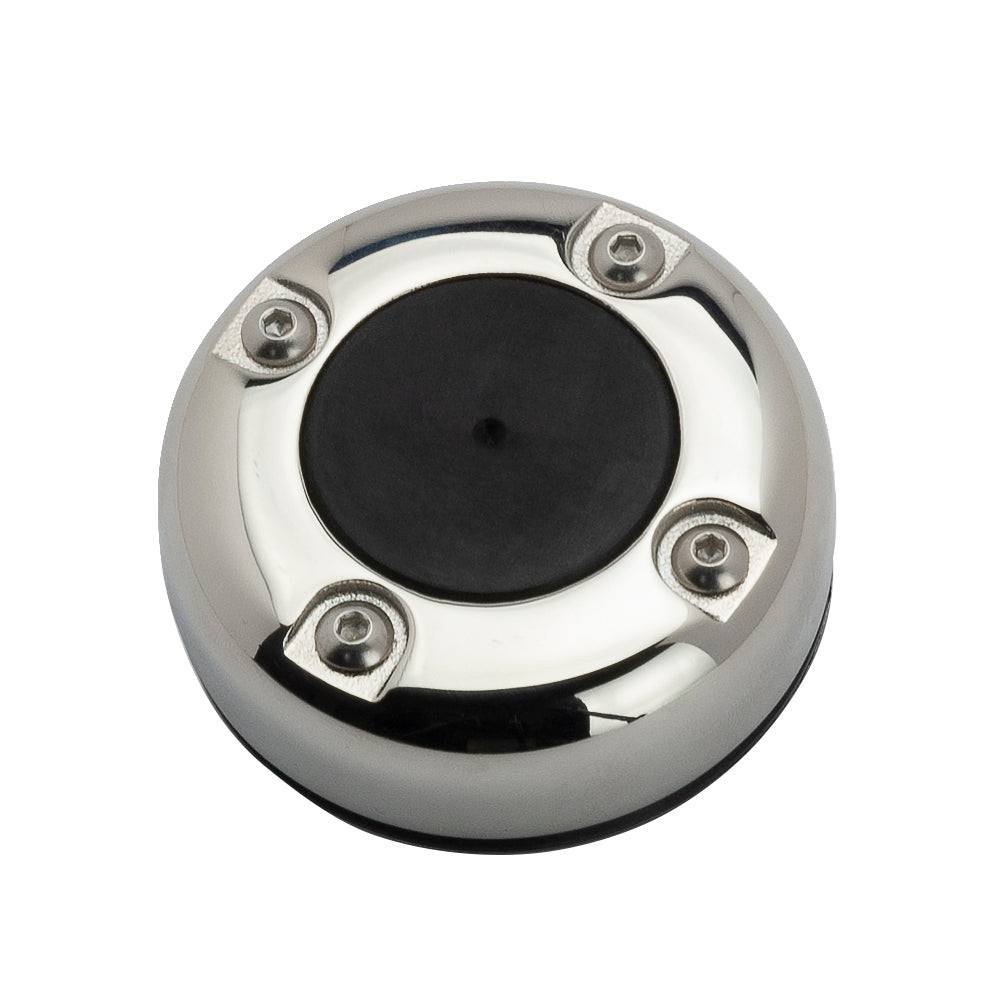

• CG30SS: Polished Stainless Steel Cover, 2-15mm Wire Size

Product Description

The Seaview CG30 Series cable seals provide guaranteed watertight installations for existing cables without the need to remove their factory connectors. These seals accommodate cable wire sizes from 2 to 15mm. The split seal design forms a watertight pass-through with a tapered rubber bung and thick rubber base gasket, offering IPX6 and IPX7 waterproof ratings. Seaview's design emphasizes a low-profile, impact-resistant housing available in plastic or marine-grade 316 stainless steel with multiple finishes to suit different vessel aesthetics. Included are four brass drill tubes (6, 8, 10, 12mm) enabling precise hole drilling. They support multiple cable installations, provided each cable is in its own hole, spaced with at least 0.125" of rubber to maintain sealing integrity. These cable seals are ideal for antennas, transducers, lighting, power, and other marine cable applications.

Key Features

• No removal of connectors required for installation

• Fits cable wire sizes 2-15mm

• IPX6/IPX7 rated tapered rubber seal with base gasket for watertight protection

• Low-profile, impact-resistant plastic or 316 stainless steel housings

• Multiple colors/finishes: grey, black, white, powder-coated, polished stainless steel

• Comes with 4 brass drill tubes for custom hole sizing

• Supports multiple cables with individual holes spaced by rubber buffer

• Marine-grade durability for harsh environments

Comparison Table

What’s In The Box

• One Seaview CG30 series cable seal (model specific)

• Four brass drill tubes (6, 8, 10 & 12mm)

• Tapered rubber bung and thick rubber base gasket

• Mounting hardware
