Seaview CGM17 Cable Seal Multi Cable up to 2-17mm Covers.

Seaview CGM17 Series Cable Seal Multi Cable 2-17mm

Model Numbers

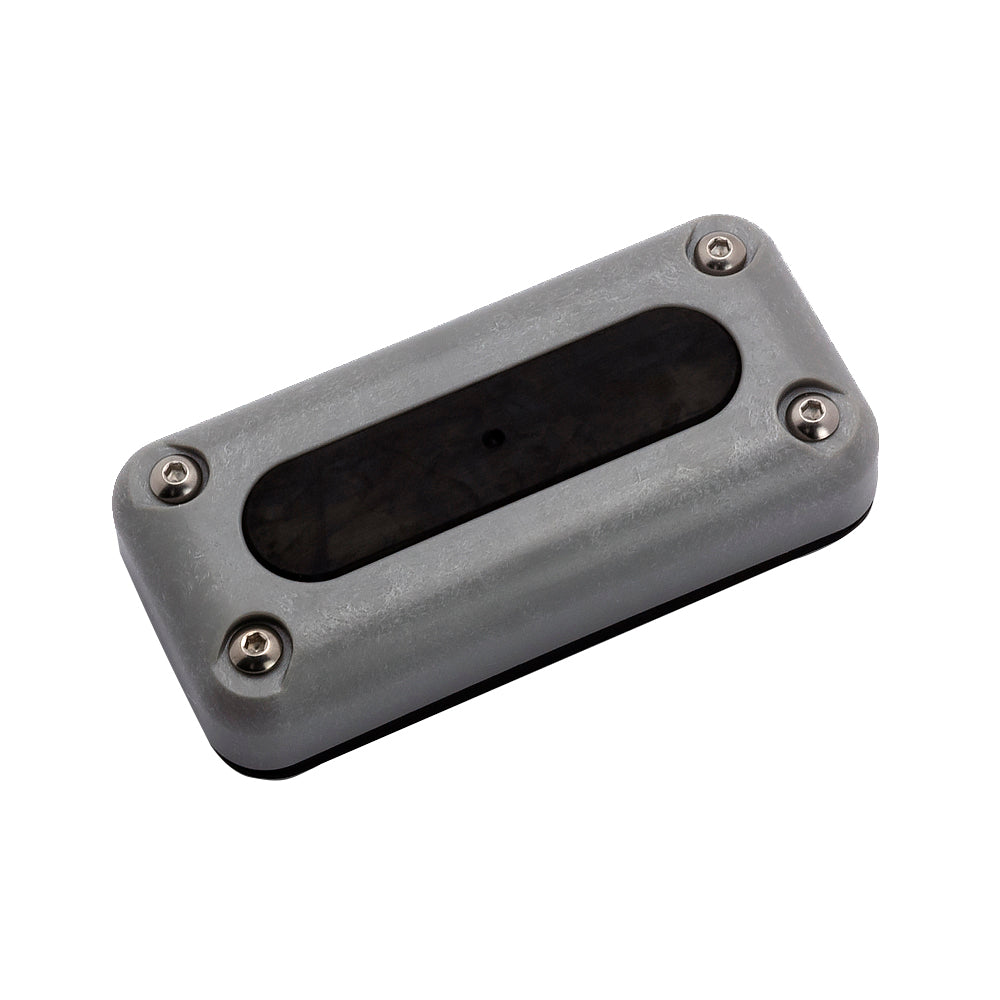

• CGM17PG: Grey Plastic Cover

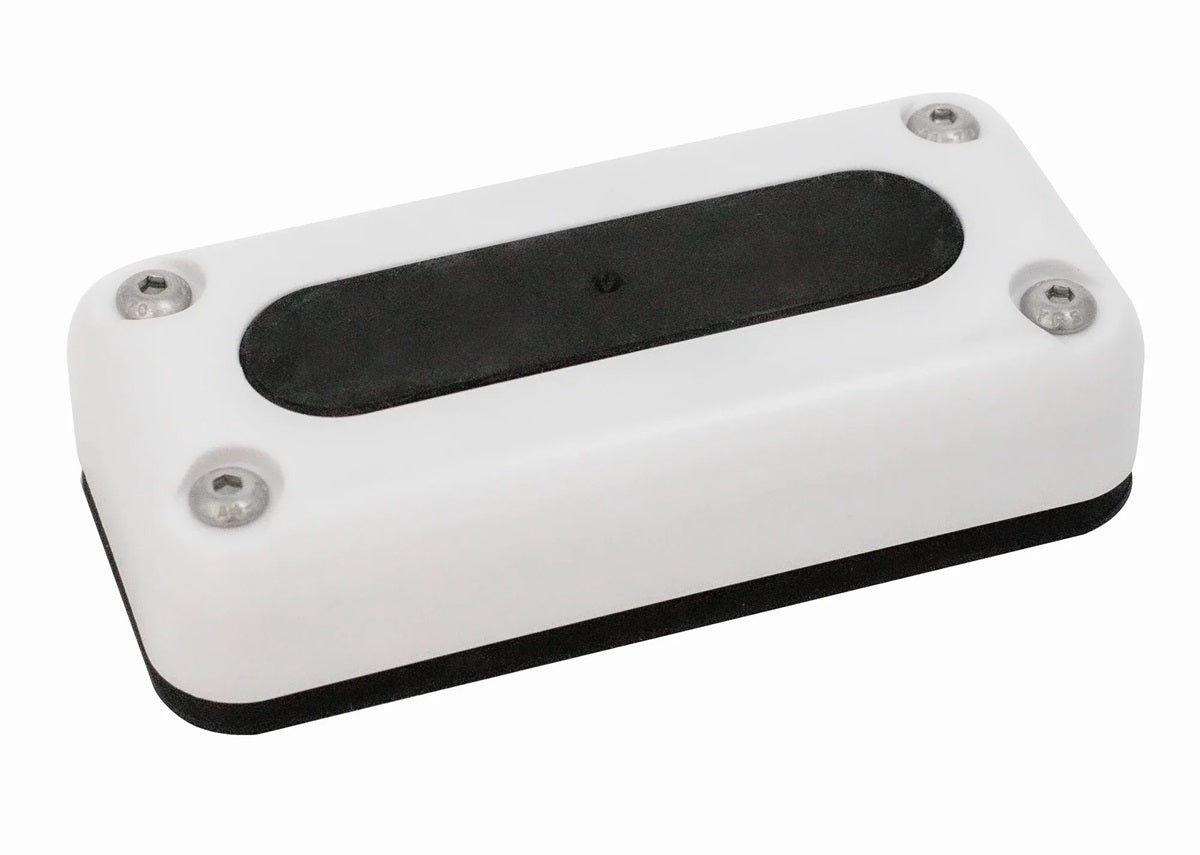

• CGM17PW: White Plastic Housing

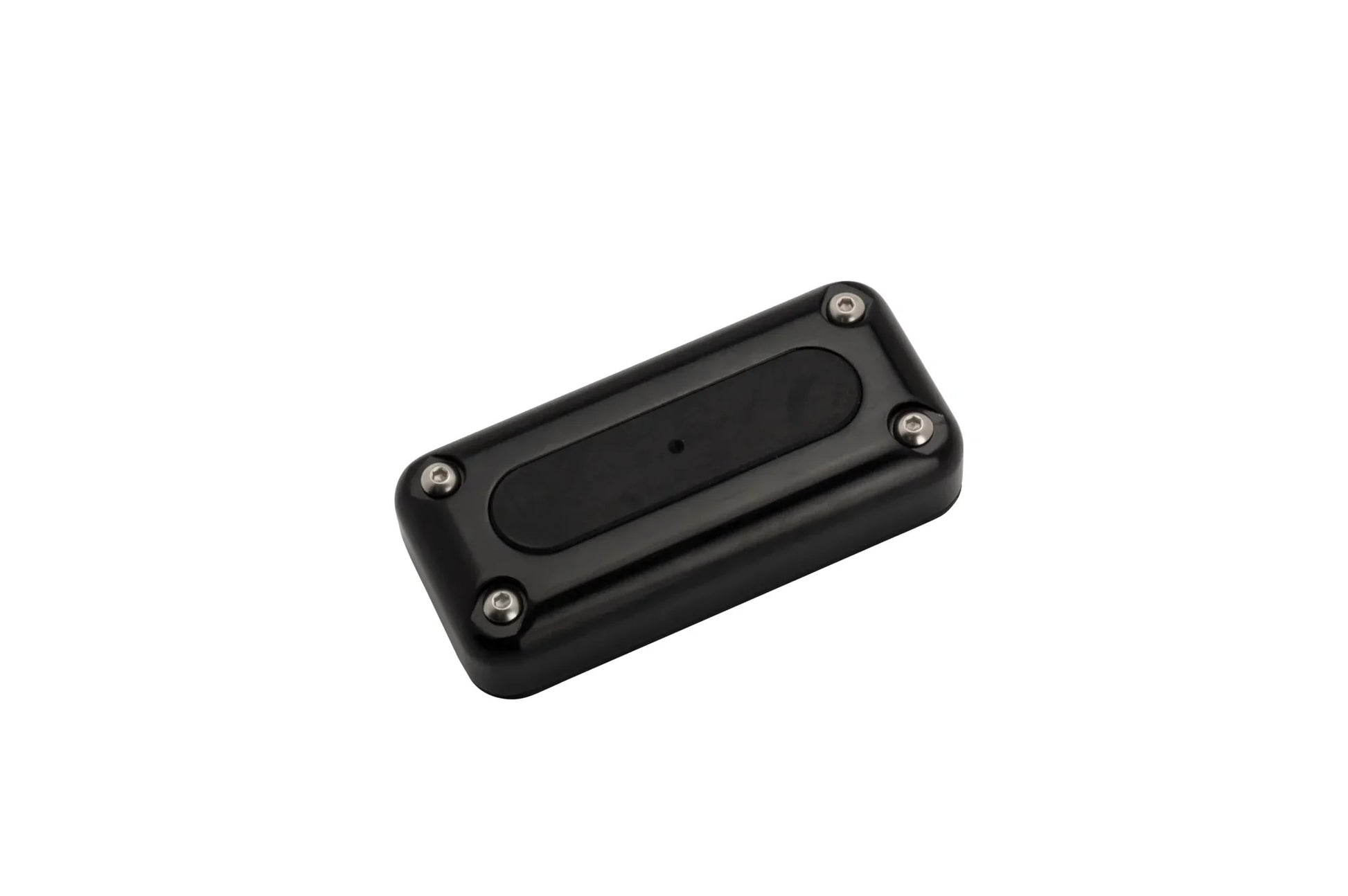

• CGM17PB: Black Plastic Housing

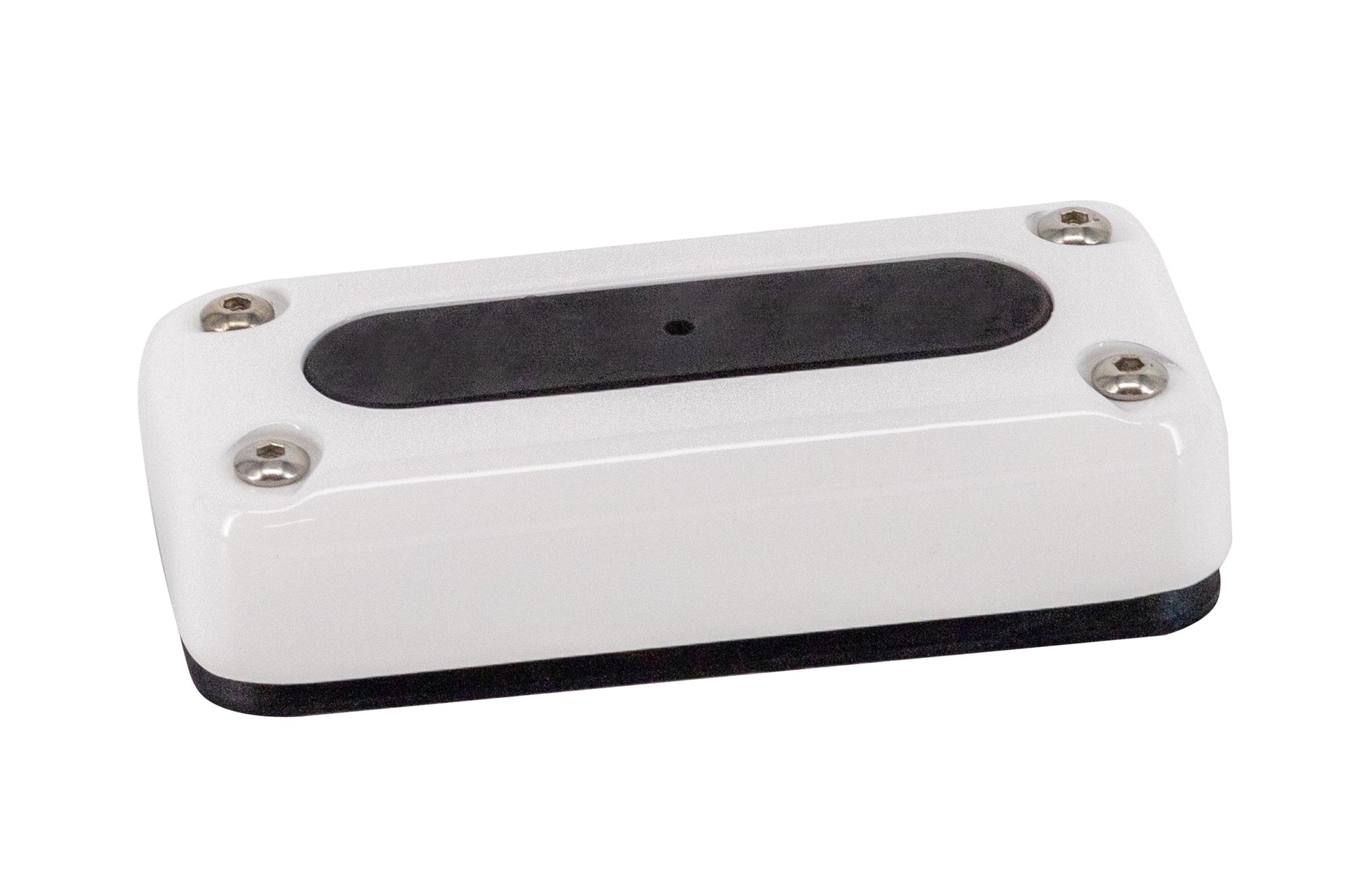

• CGM17SW: White Powder Coated Stainless Steel Cover

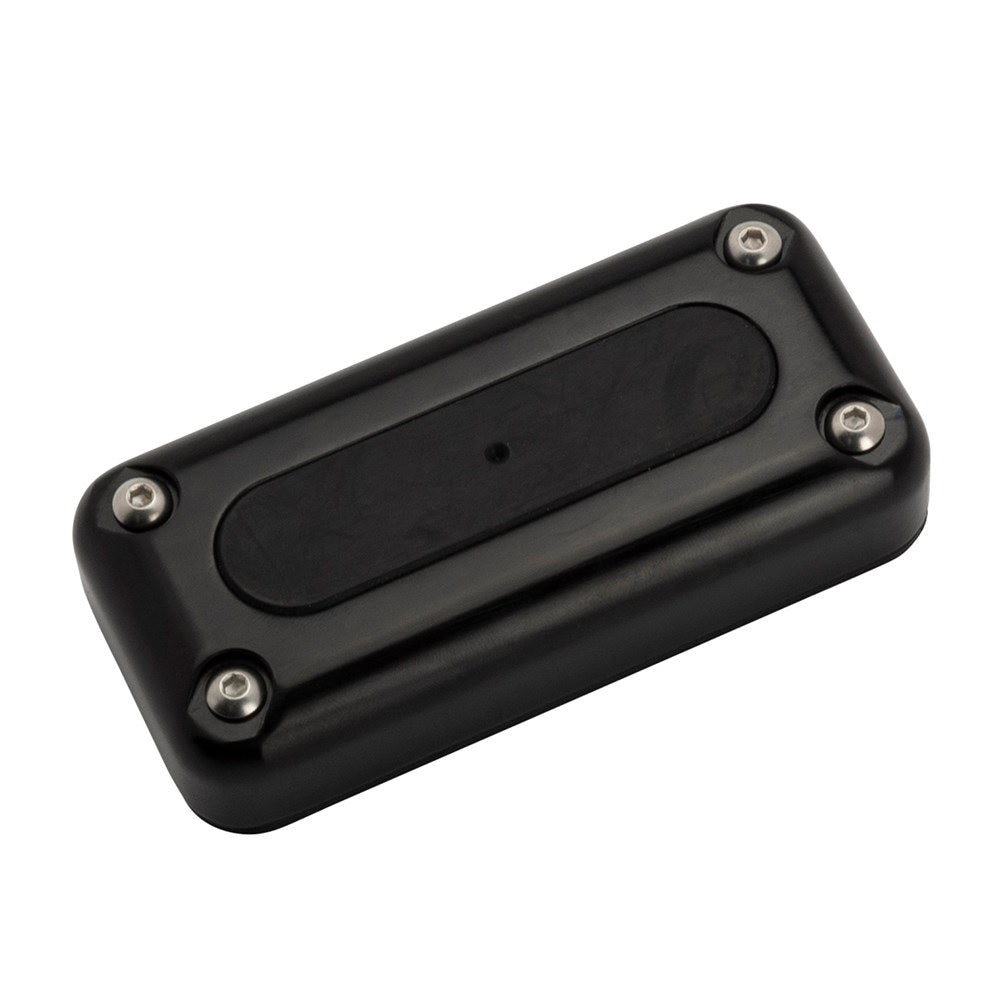

• CGM17SB: Black Powder Coated Stainless Steel Cover

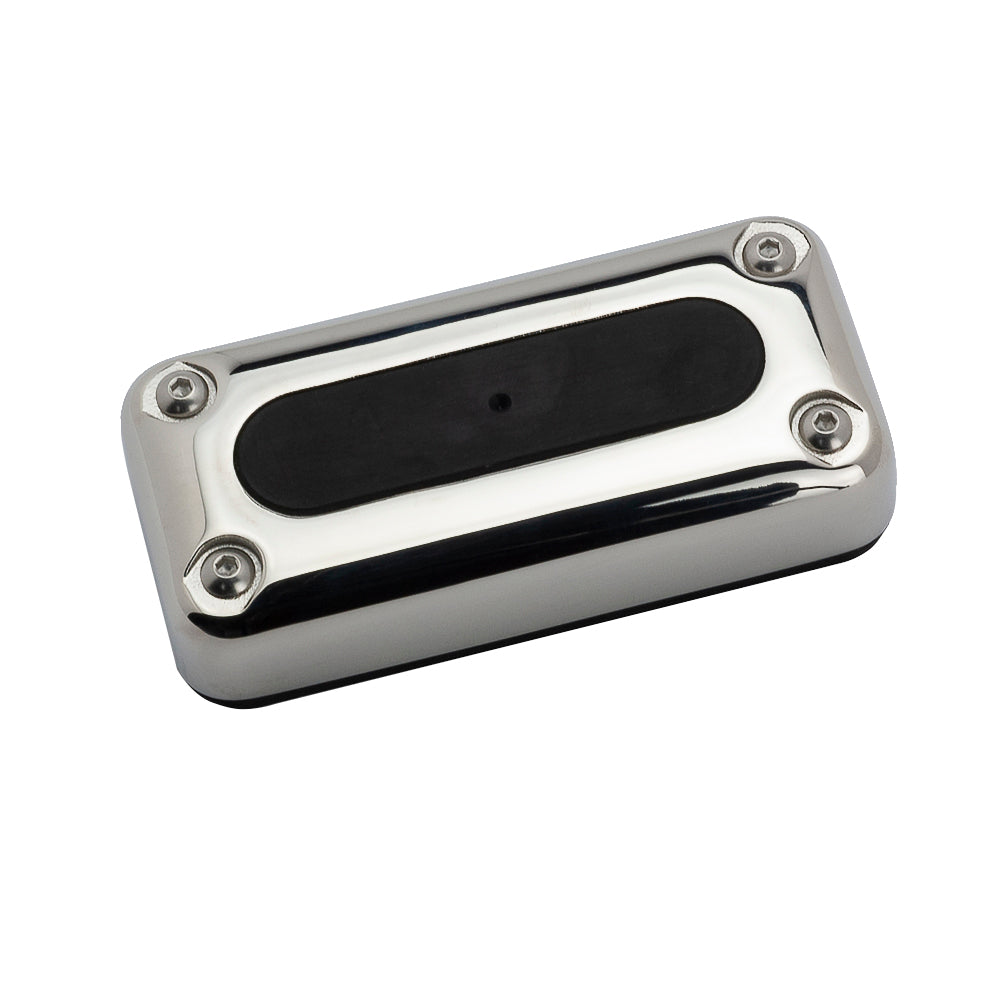

• CGM17SB Polished:  Polished Stainless Steel Cover

Product Description

The Seaview CGM17 series cable seals feature a low-profile, split-seal design that eliminates the need to remove cable connectors during installation. These waterproof cable seals provide a durable, watertight seal using a tapered rubber bung and thick rubber base gasket, rated IPX6 and IPX7 for marine-grade protection. Designed for cables ranging from 2mm to 17mm in diameter, these seals accommodate connectors from 17mm up to 34mm (0.67" to 1.38"), making them suitable for almost every installation. Each unit includes four brass drill tubes (6, 8, 10, 12mm) that enable clean and easy drilling of custom cable holes, avoiding the wasteful pre-drilled rubber pads used by some competitors. The plastic and stainless steel housings are impact-resistant and available in multiple colors and finishes. Seaview cable seals support multiple cables provided each has its own hole spaced with at least 0.125" of rubber between them for a secure, sealed installation.

Key Features

• Split seal design allows installation without removing connectors

• Tapered rubber seal and base gasket ensure waterproof IPX6/IPX7 rating

• Low-profile, impact-resistant housing in plastic or marine-grade 316 stainless steel

• For cables 2-17mm diameter with connector sizes 17-34mm (0.67"-1.38")

• Includes four brass drill tubes (6, 8, 10, 12mm) for precise hole drilling

• Multiple color and finish options including grey, white, black, powder coated, and polished stainless steel

• Supports multi-cable installations with properly spaced holes and rubber buffer

• Durable for marine and industrial environments

Comparison Table

What’s In The Box

• One Seaview CGM17 series cable seal (model specific)

• Four brass drill tubes (6, 8, 10, 12mm) for hole drilling

• Tapered rubber seal and base gasket for watertight installation

• Stainless steel or metal fasteners (depending on model)
