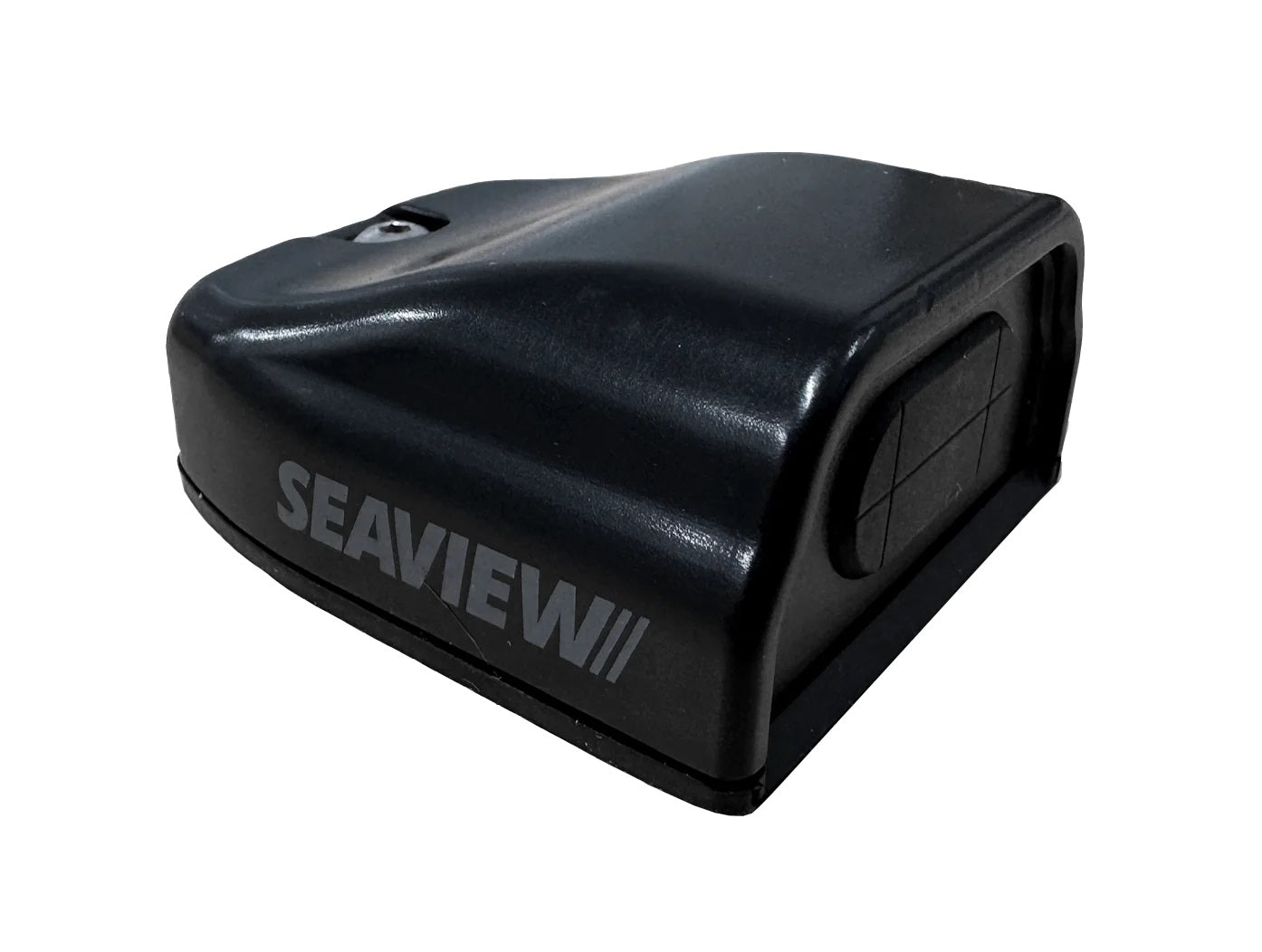

Seaview CGM90 Cable Seal Multi Cable up to 6.35mm Plastic Cover.

Seaview CGM90W & CGM90 Horizontal Cable Seal Multi Cable up to 6.35mm

Model Numbers

• CGM90W (White plastic cover)

• CGM90 (Black plastic cover)

Product Description

The Seaview CGM90W and CGM90 are horizontal 90-degree cable seals designed to provide a low-profile, strong, and watertight cable entry solution for marine and industrial applications. Constructed with a robust plastic housing—white for CGM90W and black for CGM90—these cable glands accommodate cable diameters up to 0.25" (6.35mm) with maximum connector sizes ranging from approximately 0.3125" to 0.375" (7.94mm to 9.53mm) depending on connector length and type. The design features a tapered rubber bung that forms a waterproof seal, complemented by a thick rubber base gasket, achieving IPX6 and IPX7 waterproof ratings. Each gland includes a blank rubber tapered seal with molded drill locations and metal drill tubes for clean custom hole sizes, easing installation without the need to remove cable connectors. Captive nuts and stainless steel fasteners simplify assembly, while the smooth low-profile design prevents snagging and impact damage. These cable seals support multiple cables provided each has its own hole with at least 0.125" of rubber around the hole for a tight seal.

Key Features

• Low-profile, impact-resistant plastic housing (white for CGM90W, black for CGM90)

• Fits cables up to 0.25" (6.35mm) diameter with connectors up to 0.375" (9.53mm) max

• Tapered rubber seal and thick rubber gasket ensure waterproof installation (IPX6/7 certified)

• Blank rubber seal supplied with molded drill points and drill tubes for custom hole sizing

• Captive nuts, stainless steel fasteners included for easy assembly without removing connectors

• Horizontal 90-degree orientation for streamlined cable routing

• Supports multiple cables if each has a separate hole and minimum rubber buffer of 0.125"

• Durable, corrosion-resistant materials suitable for marine environments

Comparison Table

What’s In The Box

• One Seaview CGM90W or CGM90 horizontal cable seal unit (model specific color)

• Blank rubber tapered seal with molded drill points

• Set of brass drill tubes for custom hole drilling

• Stainless steel fasteners for assembly

• Thick rubber base gasket for watertight installation
