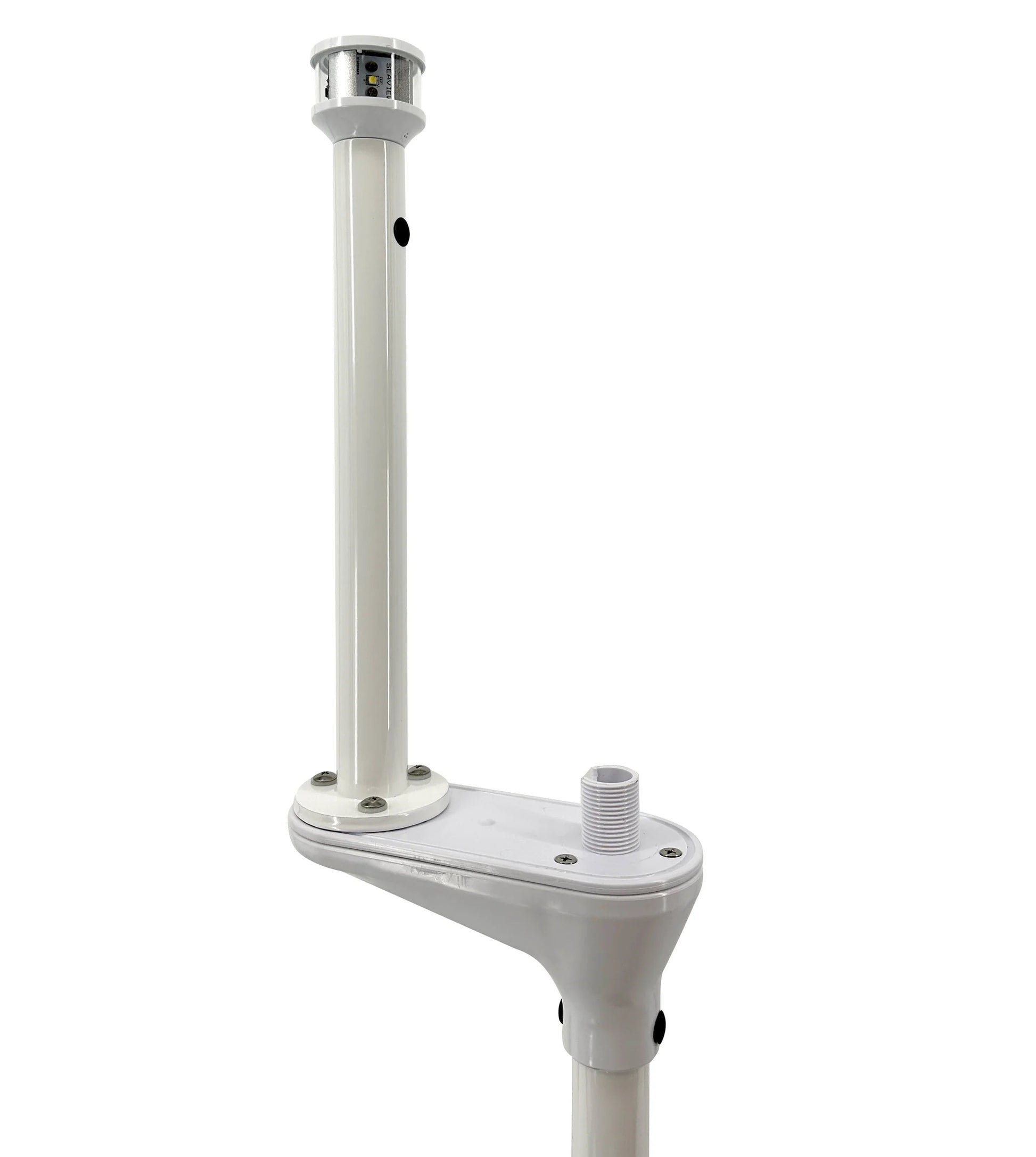

Seaview LTBU1ALED12C5 12in Light Post with LTBLED12C5 and Universal Top

Product Description

The Seaview LTBU1ALED12C5 is a complete 12-inch marine light post assembly featuring powder-coated aluminum construction, an integrated C5-certified LTBLED12C5 LED navigation light, and universal top plate for GPS/radar domes.

Product Overview

In boating applications, this modular light post mounts on radar brackets or stanchions to elevate GPS antennas, radar domes, or wind transducers above obstructions while providing USCG-approved 3NM white all-around/masthead navigation lighting for vessels up to 65.6 feet.

Key Specifications

• Height: 12 inches (SVLTP12 post)

• Light: LTBLED12C5 3NM LED (12V, IP67, USCG C5 certified)

• Top plate: Universal 1"-14 threaded adapter for GPS/wind instruments

• Material: 1.25" powder-coated aluminum post, 2.75" base

Technical Specifications

• LED light: Combination masthead/all-round white (225° visibility), 7ft wiring, suitable for power/sail vessels <20m.

• Mounting: Fits Seaview Modular Light Bar systems; stainless hardware resists corrosion.

• Environmental: IP67 waterproof light, -15°C to +55°C operation for saltwater exposure.

What's in the Box

• 12" powder-coated aluminum light post (SVLTP12)

• LTBLED12C5 white LED nav light

• LTBU1A universal light bar top/adapter

• Mounting hardware
