Seaview PMA Series Aft Rake Mounts Series (Requires Top Plate).

Seaview PMA Series Aft Rake Mounts (Requires Top Plate)

Model Numbers

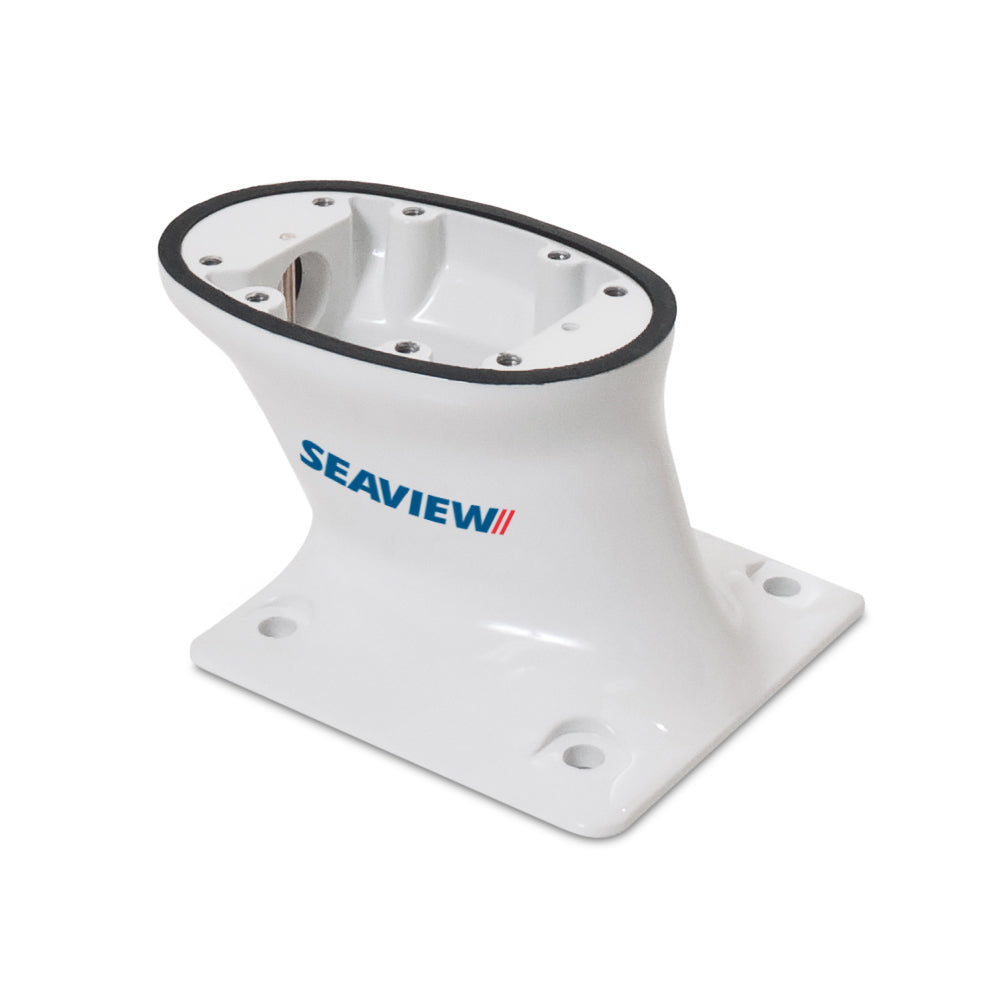

• PMA57M1: 5" Closed Dome Radars, Satdomes Aft Rake Mount, White, Requires Top Plate

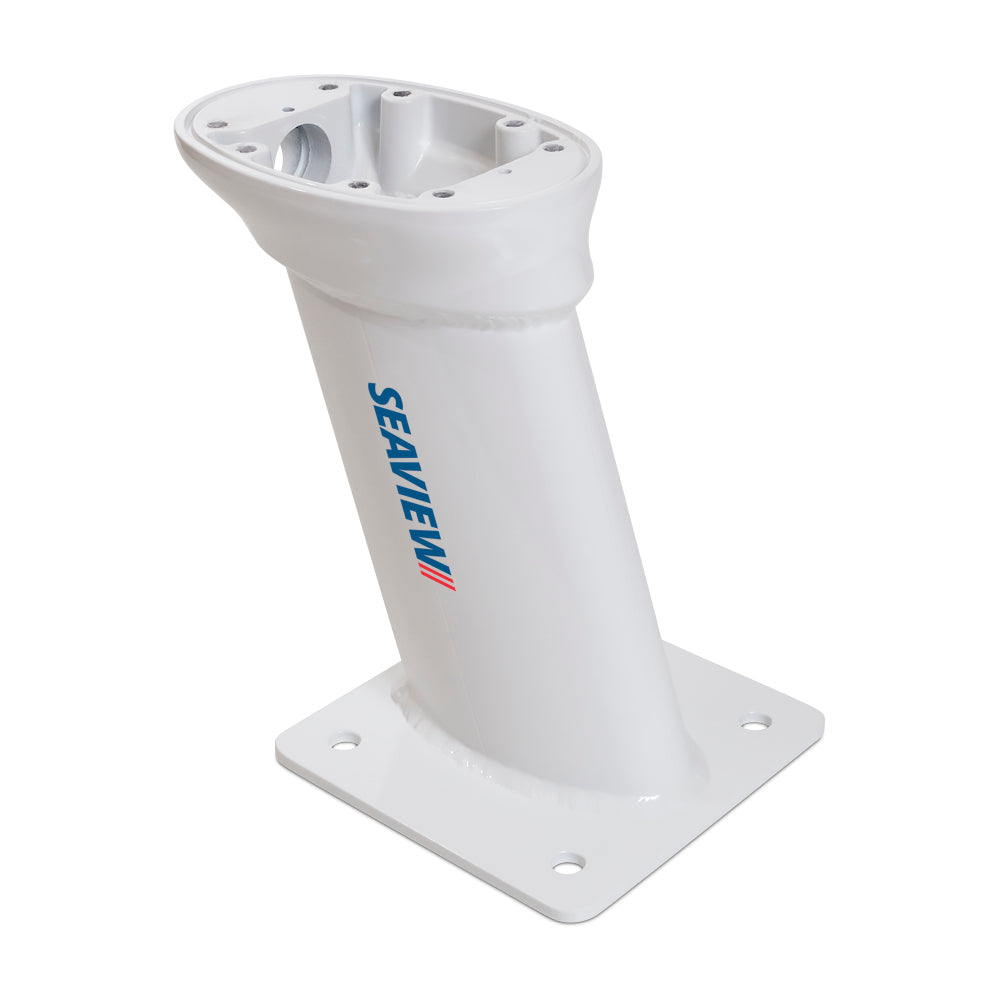

• PMA107M1: 10"Closed Dome Radars, Satdomes Aft Rake Mount, Requires Top Plate

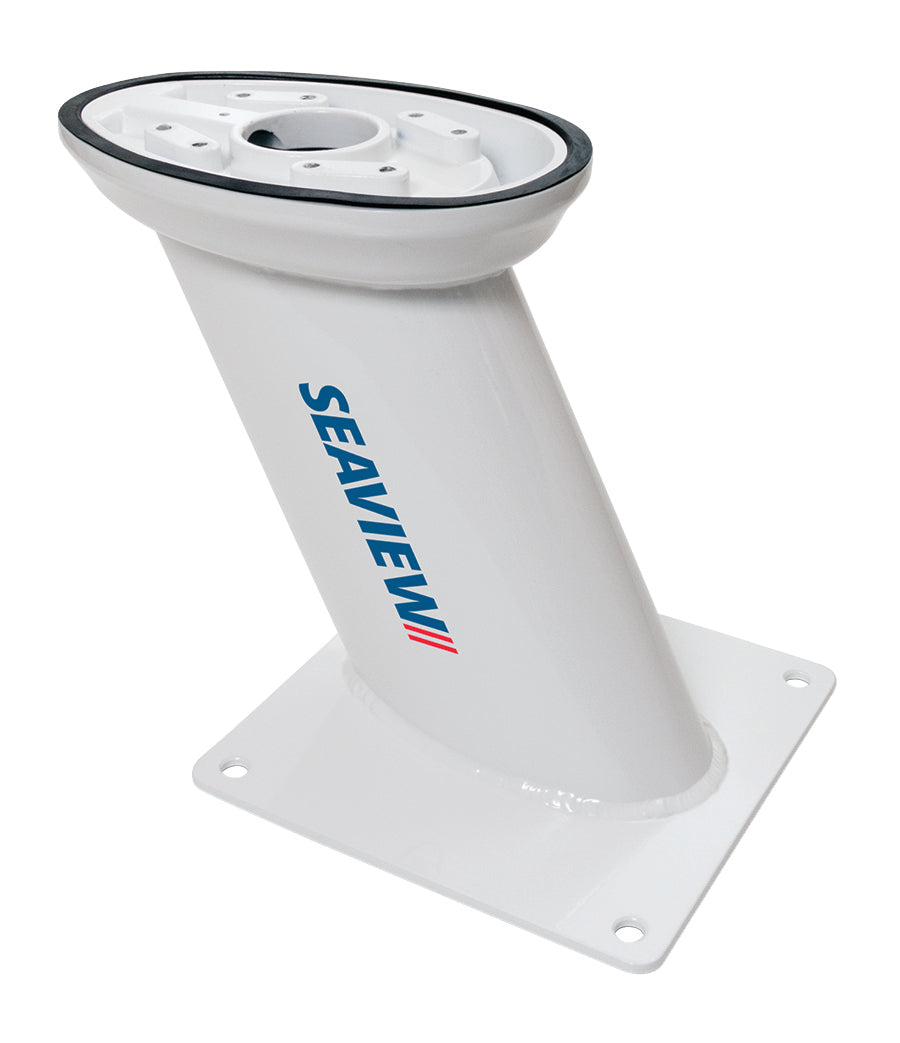

• PMA1210M2: 12" Satdomes Aft Rake Mount, Requires Top Plate

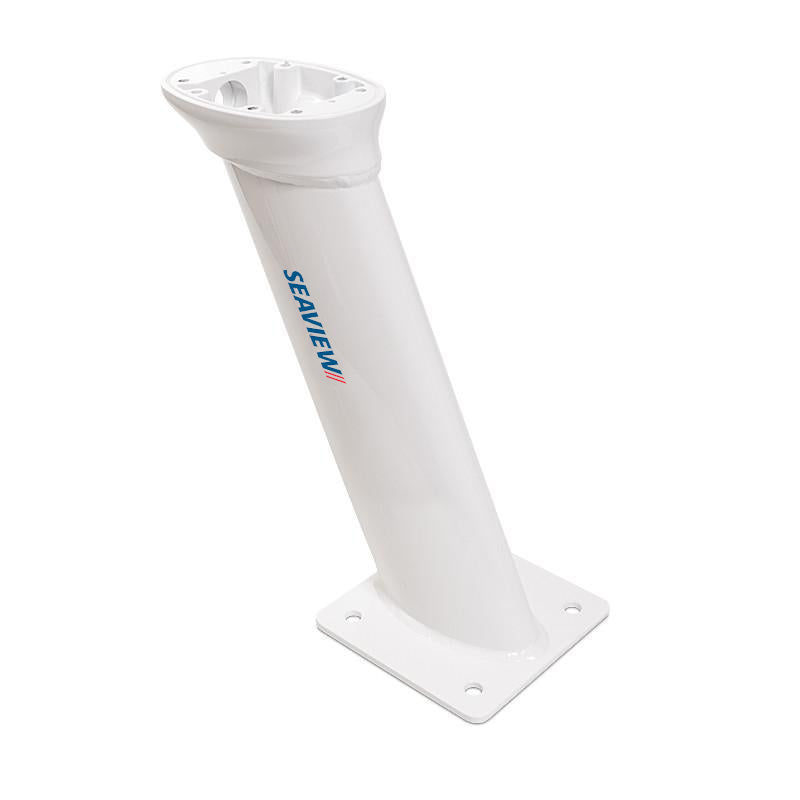

• PMA167M1: 16"Closed Dome Radars, Satdomes Aft Rake Mount, Requires Top Plate

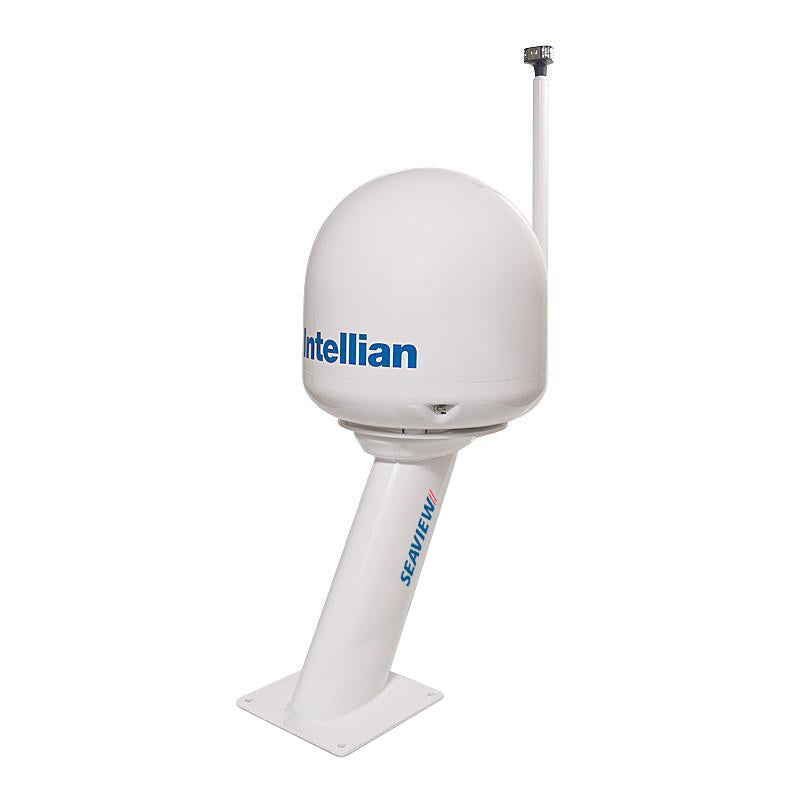

• PMA1810M2: 18" Satdomes Aft Rake Mount, Requires Top Plate

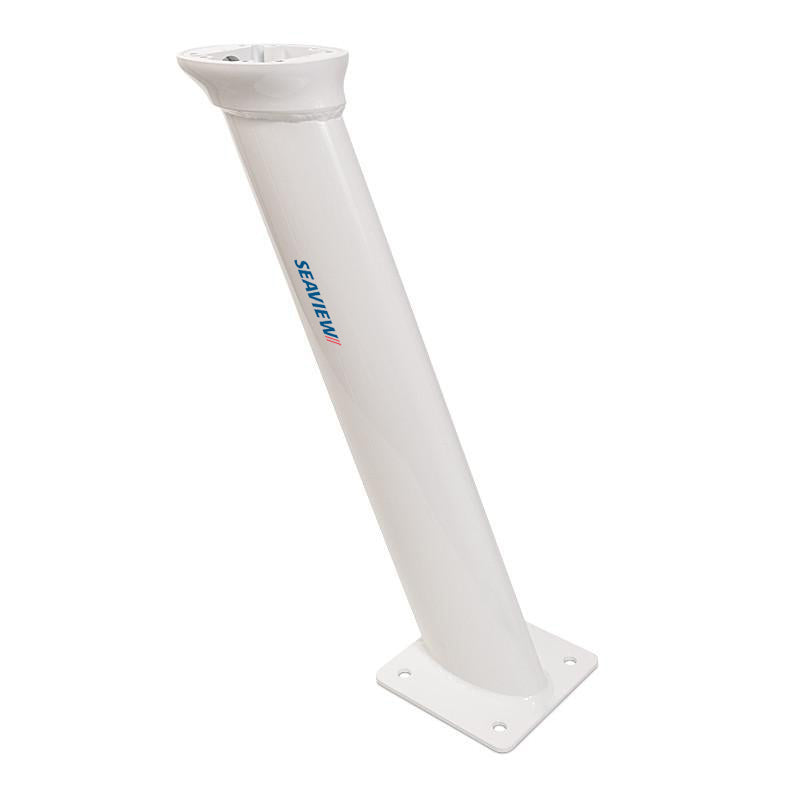

• PMA247M1: 24"Closed Dome Radars, Satdomes Aft Rake Mount, Requires Top Plate

Product Description

Seaview PMA series aft rake mounts are modular, space-efficient mounting solutions designed for open array radars, closed dome radars, and satdomes. These mounts feature an oval hollow mast section that facilitates easy and tidy cable management. Footprint options are 7" x 7" for mounts designed primarily for smaller radars and satdomes (16" diameter or less) and 10" x 10" for larger satdomes ranging from 18" to 24" diameter. Each mount supports light bars and a wide range of accessories including wedges, hinges, spreaders, and floodlights for versatile installation setups. The mounts are intended for use with a compatible top plate (sold separately) to secure the electronics. The design is optimized for installations where deck or arch space is limited, providing secure and neat mounting of essential marine electronics.

Key Features

• Modular aft-raked design for open array and dome radar/satdome mounting

• Oval hollow mast section promotes clean cable management

• Small footprint: 7" x 7" or 10" x 10" based on mount size

• Light bar compatible for additional lighting options

• Compatible with numerous accessories such as wedges, hinges, spreaders, light bars, and floodlights

• Top plate required and sold separately for complete installation

• Heights available from 5" to 24" to fit varied radar and satdome sizes

• Ideal for restricted space installations

Comparison Table

What’s In The Box

• One Seaview PMA Series Aft Rake Mount (model dependent height and footprint)

• Mounting hardware for the base

• Top plate sold separately
