Seaview Wedge Base For Starlink with Light Bar and 3nm LED.

Seaview SVSLWBBKLED and SVSLWBLED Angled Wedge Base and LED Light for Starlink

Model Numbers

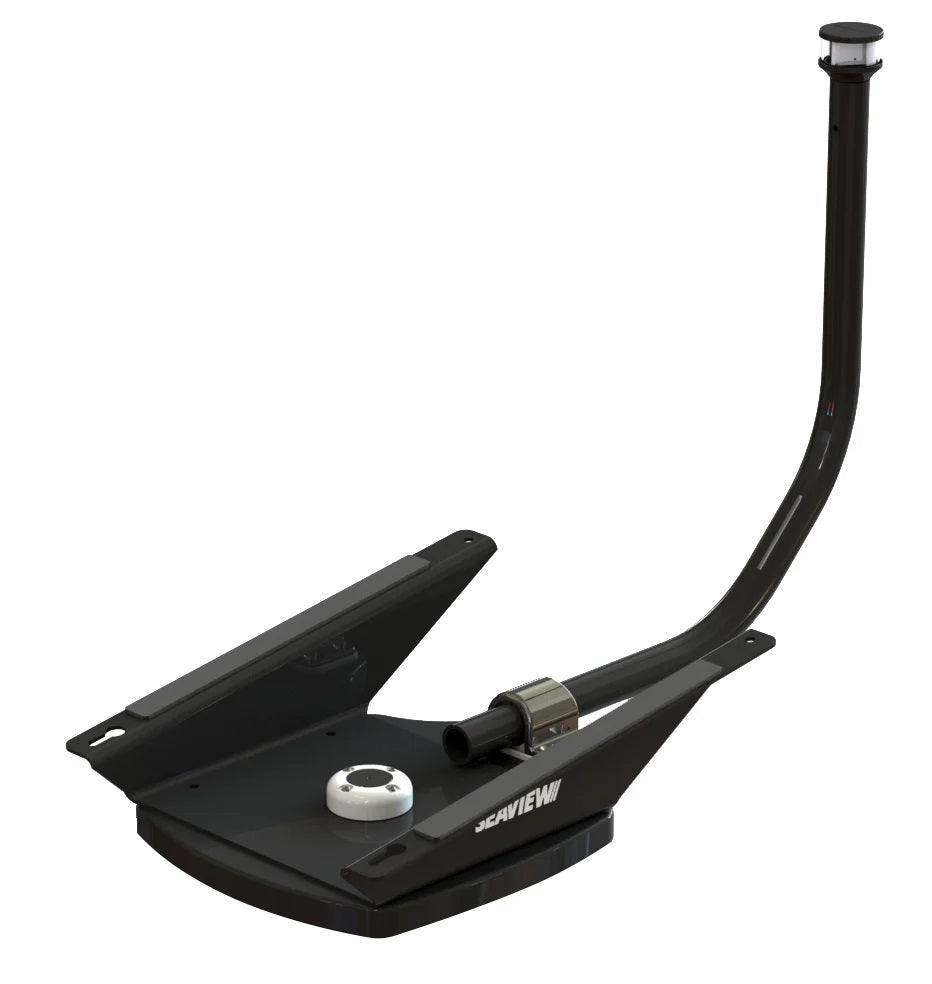

• SVSLWBBKLED: Black angled wedge base with LED light

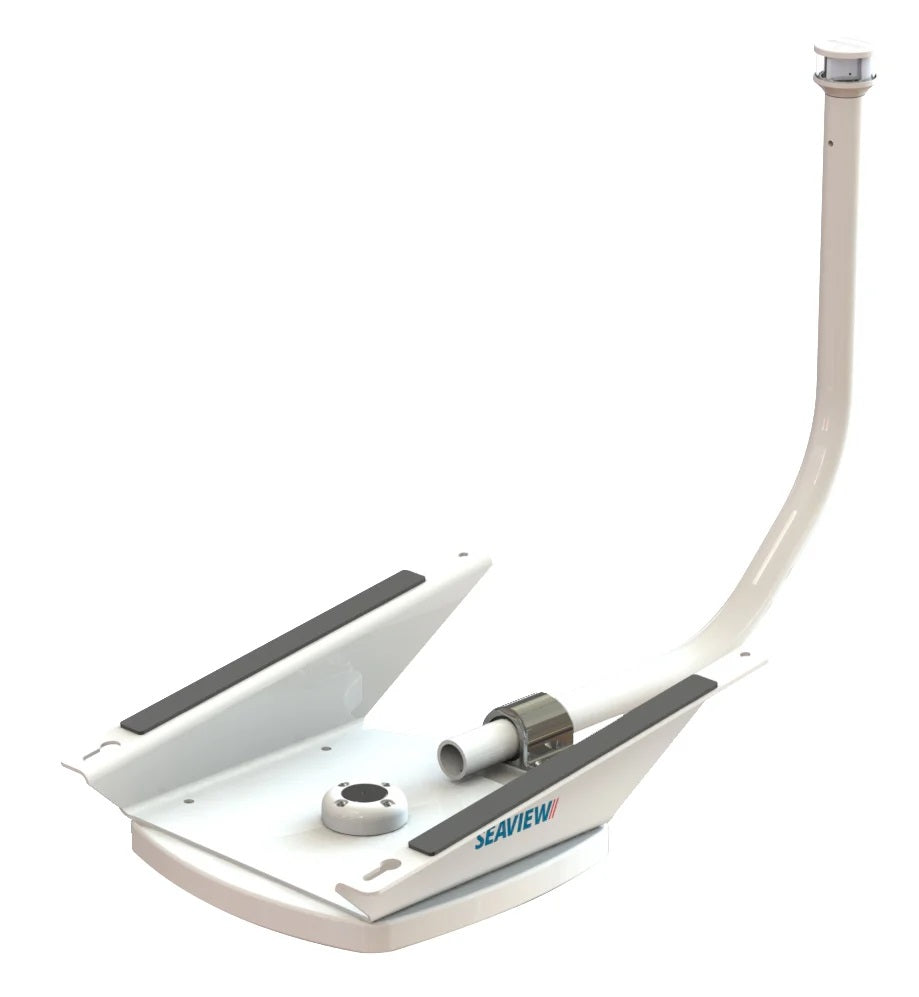

• SVSLWBLED: White angled wedge base with LED light

Product Description

The Seaview SVSLWBBKLED and SVSLWBLED kits are designed specifically to fit the Starlink Flat High Performance Antenna. Featuring an 8° angled wedge base, these mounts are ideal for installations where space is limited and additional height is not required but having an LED navigation light is essential. The wedge base includes pre-drilled mounting holes for easy hardware installation and is drilled and tapped for the cable seal models CG30PB (black) or CG30PW (white), allowing a secure, watertight cable entry without the need to cut Starlink connectors. The included LED navigation light is a 3NM combination mast head all-round light, USCG approved for boats up to 20 meters (65.6 feet) long, IP67 rated for water resistance, and comes with 7 feet of 12V wiring. The aluminum light bar and wedge base are finished with a three-part polyurethane primer and powder coat to ensure superior corrosion resistance in marine environments.

Key Features

• Designed for Starlink Flat High Performance Antenna

• 8° angled wedge base with pre-drilled mounting holes

• Compatible with CG30PB (black) or CG30PW (white) cable seals

• No need to cut Starlink connectors for installation

• Includes IP67 watertight 3NM LED combination mast head all-round light with 7’ of 12V wire

• USCG approved for boats up to 20 meters (65.6 feet)

• Powder coated aluminum construction with polyurethane primer for corrosion resistance

• Ideal for installations with limited vertical space that require navigation lighting

Comparison Table

What’s In The Box

• One angled wedge base (black or white, model specific)

• One aluminum LED light bar (matching color)

• One 3NM LED combination mast head all-round navigation light

• One CG30 cable seal (model specific color)
