Shakespeare VHF Marine Band Antennas.

$65.95

~~$99.99~~ $65.95

Sold out

-34%

Shipping calculated at checkout.

Low stock: 8 left

Mount Type: Black magnetic base Black L-bracket (mast) Black magnetic base

Description

Shakespeare Style 5216 and 5218 VHF Marine Band Antennas

Models

Style 5216: 1.25 ft (15") VHF Marine Band Antenna, Unity Gain
Style 5218: 1.6 ft (19") VHF Marine Band Antenna, Unity Gain

Product Description

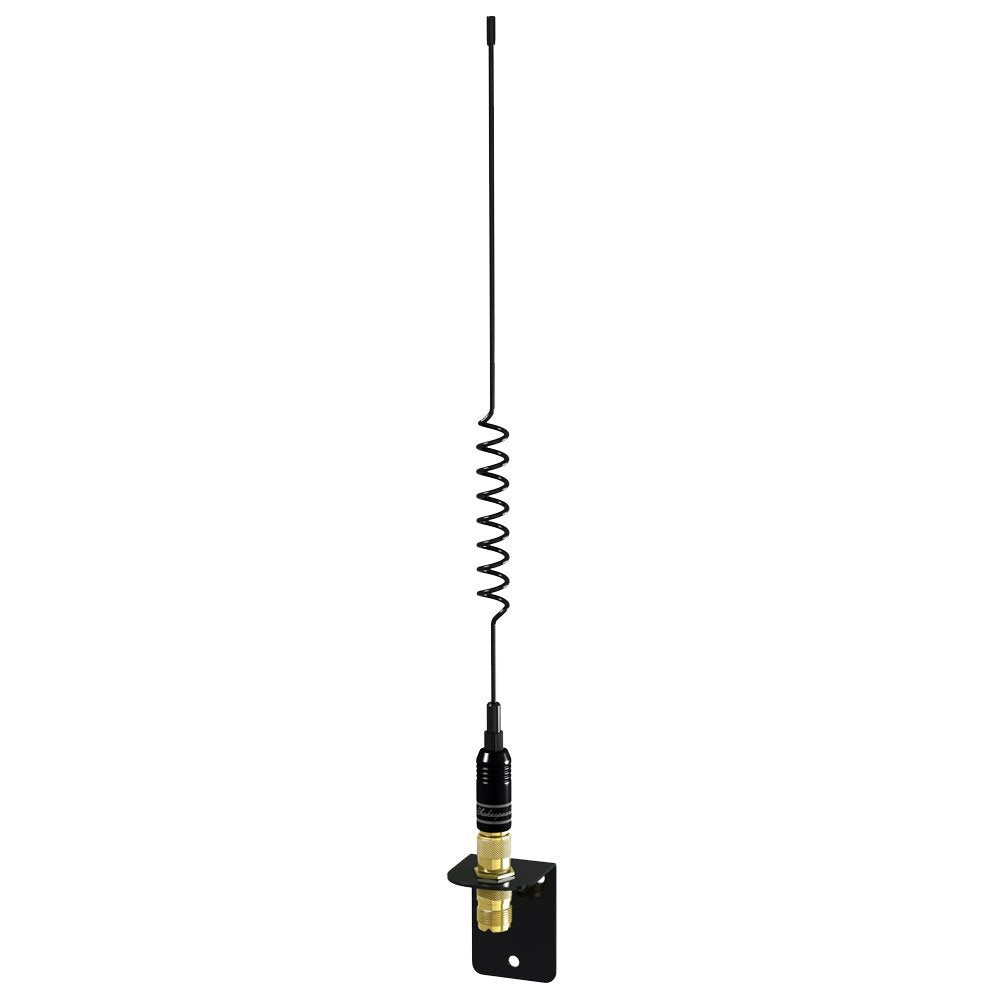

The Shakespeare Style 5216 is a compact, lightweight, end-fed center-loaded stainless steel whip antenna designed specifically for sailboat racers and vessels where weight and size matter. It features a 15" stainless steel whip with a black finish, included black L-bracket for mast mounting, and a gold-plated connector for enhanced conductivity and corrosion resistance. The antenna offers unity gain, suitable for reliable VHF marine communication with a maximum input power of 25 watts. Its bandwidth encompasses 5 MHz within 2.0:1 VSWR, with a nominal SWR of 1.5:1 at 156.8 MHz, vertical polarization, 50-ohm impedance, and no DC ground (continuity reads open).

The Style 5218 features a black stainless steel whip and includes a black magnetic mount, enabling fast, easy setup on magnet-friendly surfaces. It comes with 15 feet of RG-58 A/U coax cable and a PL-259 connector for plug-and-play use. It offers similar performance to the 5216, with a slightly longer whip length (19") and a broader 7 MHz bandwidth.

Both antennas carry a 2-year limited warranty and are optimized for short-range marine VHF communication where compactness, ease of installation, and performance are critical.

Key Features

Short, lightweight stainless steel whip antennas ideal for sailboats and quick installs
Style 5216 includes black L-bracket for mast mounting; 5218 includes magnetic base for temporary mounting
Unity gain, 25-watt max input power for reliable VHF reception
Nominal SWR around 1.5:1 at 156.8 MHz
Bandwidth: 5 MHz (5216), 7 MHz (5218) within 2.0:1 VSWR
Vertical polarization with 50-ohm impedance
Gold-plated connector (5216) and PL-259 (5218) for corrosion resistance
5218 supplied with 15' RG-58 A/U coax cable; 5216 cable sold separately
2-year limited warranty

Comparison Table

Feature	Style 5216	Style 5218
Length	1.25 ft (15")	1.6 ft (19")
Gain	Unity (0 dB)	Unity (0 dB)
Max Input Power	25 watts	25 watts
Bandwidth	5 MHz (within 2.0:1 VSWR)	7 MHz (within 2.0:1 VSWR)
Connector	Gold-plated (SO-239 base)	PL-259
Cable	Not supplied	15 ft RG-58 A/U
Mount Type	Black L-bracket (mast)	Black magnetic base
Polarity	Vertical	Vertical
Impedance	50 Ohms	50 Ohms
DC Ground	No (Open continuity)	No (Open continuity)
Warranty	2 years	2 years

What’s in the Box

Style 5216: 15" stainless steel whip antenna, black L-bracket for mast mounting (cable sold separately)
Style 5218: 19" stainless steel whip antenna with black magnetic mount, 15' RG-58 coax cable, and PL-259 connector
