Shakespeare Quickconnect Stainles Steel Ratchet Mount.

$104.95

~~$109.99~~ $104.95

Sold out

-5%

Shipping calculated at checkout.

59 in stock

Mount Type: Ratchet Mount Ratchet Mount Ratchet Rail Mount

Description

Shakespeare QuickConnect Stainless Steel Ratchet Mounts

Models:

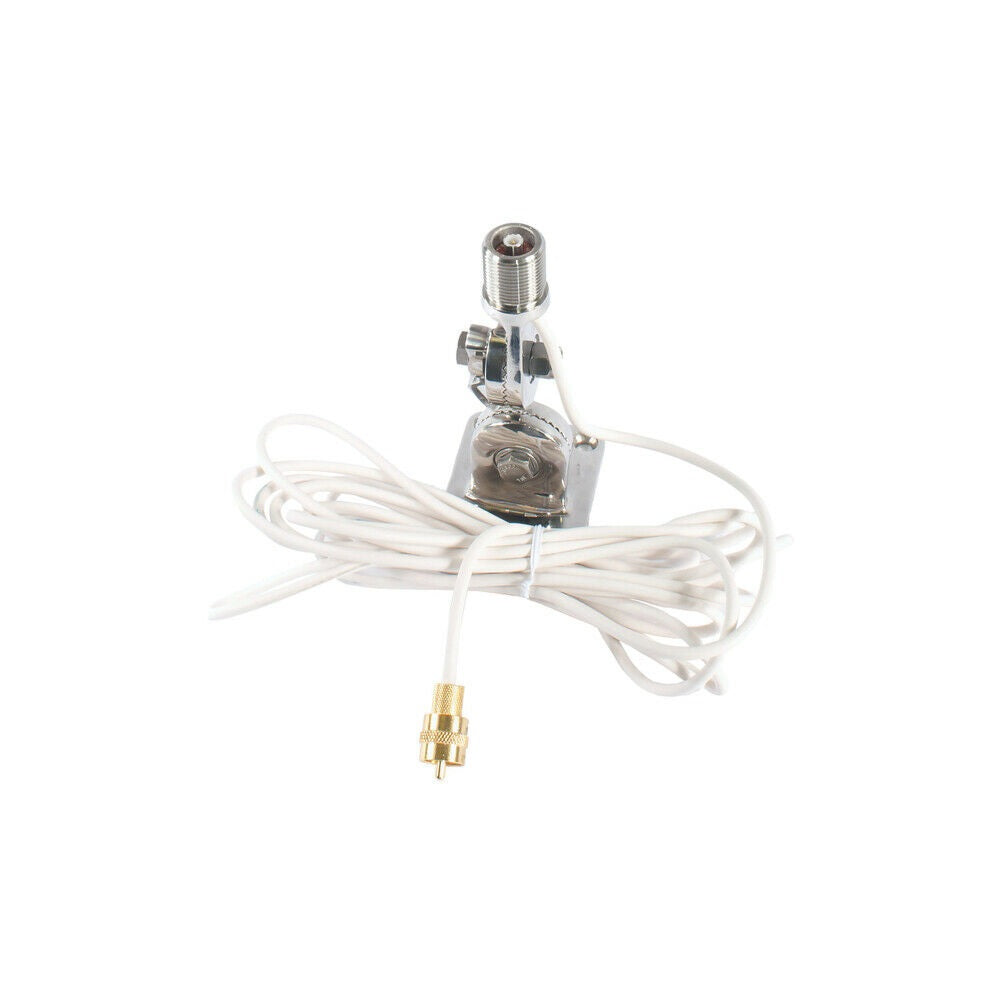

QCM-S: Stainless Steel Ratchet Mount

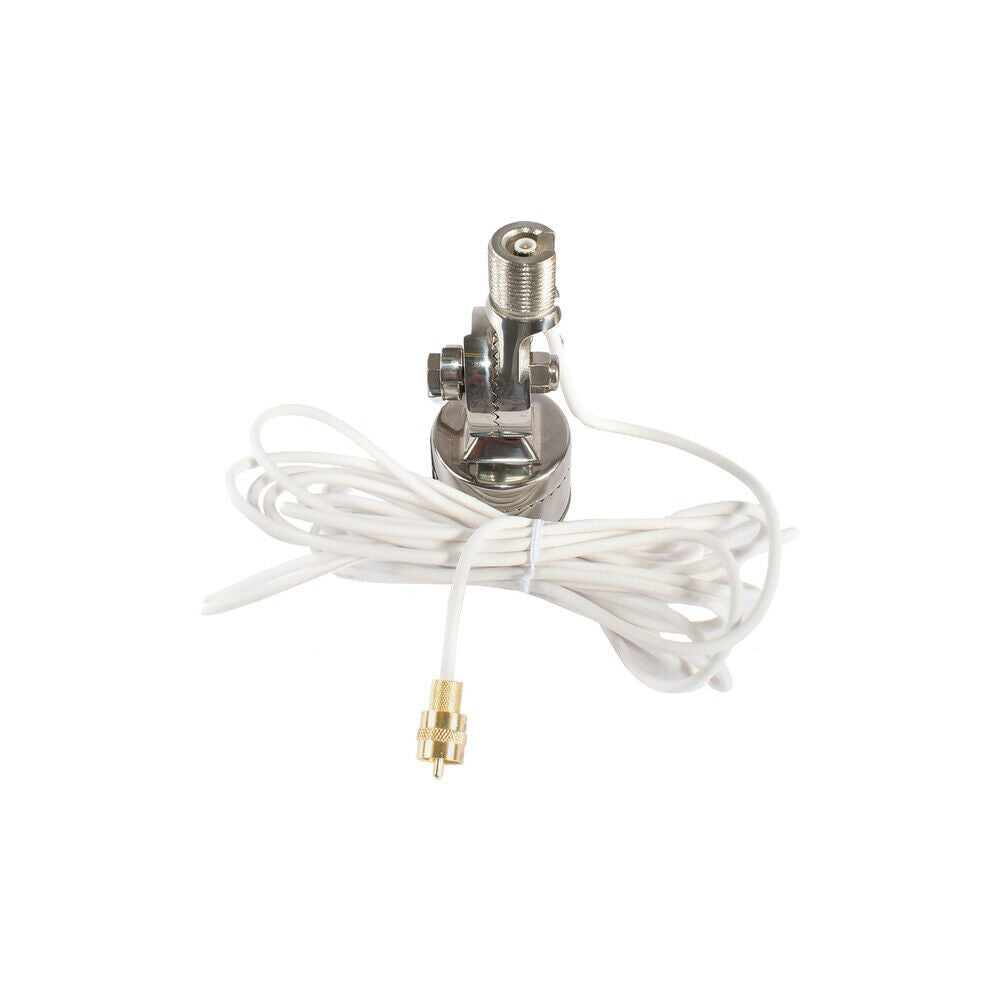

QCM-SR: Stainless Steel Ratchet Rail Mount

Product Description

The Shakespeare QuickConnect stainless steel ratchet mounts offer versatile solutions for mounting QuickConnect antennas with high-quality corrosion resistance and easy operation. Both mounts feature the QuickConnect system for secure, noise-free antenna connections with vibration resistance. The QCM-S model provides a four-way ratchet design suitable for deck or side mounting with a quick-action handle for simple laydown or setup. The QCM-SR offers a ratchet rail mount designed to fit 1" to 1-1/4" vertical or horizontal rails, providing fast and easy antenna installation and removal on railings.

Both mounts include stainless steel construction, splash protection caps to protect connectors when antennas are disconnected, and are designed to upgrade easily with Shakespeare's high-end antennas without replacing mounts. They come supplied with 20 feet of marine-grade RG-58 coax cable and Centerpin® PL-259 crimp-on type connectors (not attached). Bolt holes for QCM-S are 5/16-inch diameter, spaced 3" x 1½" on center, and both mounts feature standard 1-inch 14-thread male fittings for broad compatibility.

Key Features

QuickConnect system for vibration-free, secure antenna connection
Made of corrosion-resistant stainless steel for durability
Four-way ratchet design (QCM-S) and ratchet rail mount (QCM-SR) options
Splash protection cap protects mount connectors when antennas are disconnected
Includes 20 ft RG-58 coax cable (connector not attached)
Compatible with 1"-14 threaded antennas and mounts
Easy upgrade path for Shakespeare QuickConnect antennas
Suitable for deck, side, and rail mounting depending on model

Comparison Table

Feature	QCM-S Ratchet Mount	QCM-SR Ratchet Rail Mount
Mount Type	Four-way ratchet, deck or side	Ratchet rail mount
Construction	Stainless steel	Stainless steel
Mounting Location	Deck or side	1" to 1-1/4" vertical or horizontal rail
Bolt Holes	5/16 in diameter, 3" x 1.5" spacing	N/A (rail mount clamps)
Thread	Standard 1" -14 male	Standard 1" -14 male
Cable Supplied	20 ft RG-58	20 ft RG-58
Connector Supplied	Centerpin® crimp-on PL-259 (not attached)	Centerpin® crimp-on PL-259 (not attached)
QuickConnect Compatible	Yes	Yes
Operation Mechanism	Quick-action handle for ratchet	Ratchet action, fast release design

What’s in the Box

QCM-S:

Stainless steel ratchet mount
20 ft RG-58 coaxial cable
Documentation (typical)

QCM-SR:

Stainless steel rail mount
20 ft RG-58 coaxial cable
Documentation (typical)

These Shakespeare mounts provide reliable, corrosion-resistant hardware for securing QuickConnect antennas on marine vessels with flexible mounting options and easy installation/removal.
