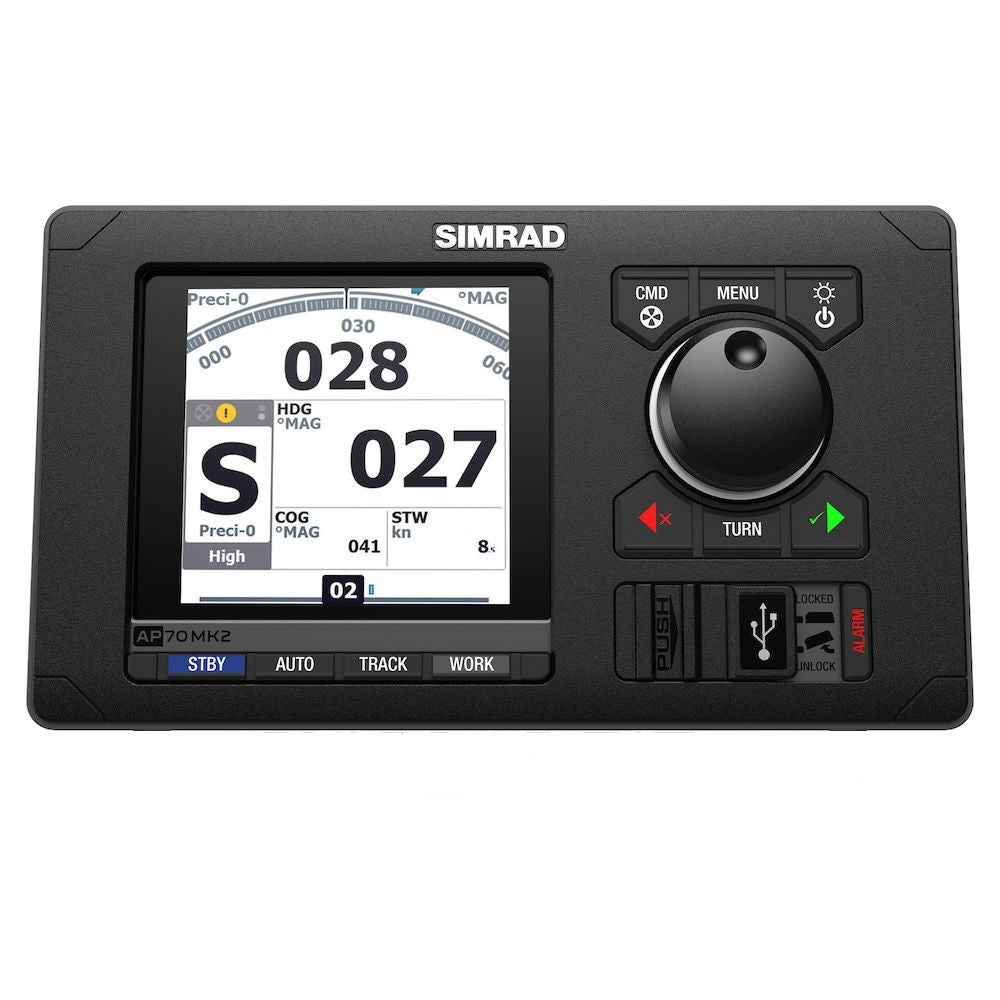

Simrad AP70 MK2 Basic Pack & AP70 MK2 Control Unit.

Simrad AP70 MK2 Basic Pack & AP70 MK2 Control Unit

Product Description

The Simrad AP70 MK2 is a professional-grade autopilot controller designed to meet the stringent demands of commercial vessels, including compliance with SOLAS (IMO, MED-B) regulations. It replaces the AP70 and AP80 models, offering a modernized interface combined with reliable, advanced steering capabilities. The system supports up to six rudders and/or thrusters, including heavy-duty rudder feedback for robust control in complex vessel configurations.

The AP70 MK2 features configurable work modes, low and high-speed settings, No Drift steering for maintaining course against wind and tide, and navigation steering for route following from Simrad or third-party chartplotters. Command transfer allows multiple control stations to manage the autopilot seamlessly, enhancing flexibility and operational safety. The unit supports a wide variety of drive types including water jet, azimuth pods, Voith-Schneider, rudder, and outboard systems.

Model Numbers

• 000-15039-001 — AP70 MK2 Basic Pack (Includes AP70 MK2 Controller, AC70 Autopilot Computer, RF300 Rudder Feedback)  Requires Drive Unit

• 000-14958-001 — AP70 MK2 Control Unit (Controller Only)

Key Features

• Wheelmarked and MED-B certified for SOLAS-compliant commercial vessels

• Supports up to six rudders/thrusters integration including dual rudders and fore/aft thrusters

• Heavy-duty rudder feedback compatibility (RF300, RF45X, RF25N, RF70, RF14XU)

• Configurable work modes for optimal steering response (low-speed, high-speed, and user-defined Work modes)

• No Drift steering maintains a straight ground track by compensating for wind and tide effects

• Navigation steering supports route following via Simrad or third-party ECDIS/MFDs

• Command transfer feature for multi-controller installations and flexible control management

• Suitable for a wide variety of drive types: hydraulic pumps, solenoids, analog signals, CAN bus (SG05Pro)

• Preprogrammed maneuver patterns including U-turn and S-turn for efficient vessel handling

• Robust, modern display with 170° viewing angle, IPx6-rated for exposed installation

• Advanced interface combining rotary dial and keypad for instant mode selection and operation

• Supply voltage: 12/24V DC, with low power consumption




  Comparison Table

  Feature	AP70 MK2 Basic Pack (000-15039-001)	AP70 MK2 Control Unit (000-14958-001)
  Included Components	Autopilot Controller, AC70 Computer, RF300 Rudder Feedback	Autopilot Controller Only
  Rudder/Thruster Support	Up to 6 (including dual rudders and fore/aft thrusters)	Not included; used with existing hardware
  Rudder Feedback Compatibility	Heavy-duty rudder feedback supported	Not included
  Work Modes	Configurable low-speed, high-speed, and user-defined modes	Configurable work modes via control interface
  Steering Features	No Drift steering, Navigation steering, Route following	No Drift steering, Navigation steering, Route following
  Command Transfer	Supports multiple control stations	Supports multiple control stations
  Control Interface	Rotary dial + keypad	Rotary dial + keypad
  Display Resolution	480 x 480 pixels	480 x 480 pixels
  Power Consumption Typical	0.7 A (12V), 0.4 A (24V)	0.7 A (12V), 0.4 A (24V)
  Operating Temperature	-30°C to +55°C (-22°F to +131°F)	-30°C to +55°C (-22°F to +131°F)
  Weight	1.4 kg (3.1 lbs)	1.4 kg (3.1 lbs)
  Mounting Type	Flush or bracket mount	Flush or bracket mount
  Certifications	Wheelmark, MED-B, HCS, HSC, USCG, CCS, RMRS	Wheelmark, MED-B, HCS, HSC, USCG, CCS, RMRS





  What’s in the Box

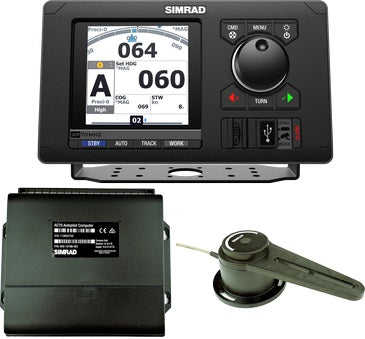

  AP70 MK2 Basic Pack (000-15039-001):

  • AP70 MK2 Autopilot Controller

  • AC70 Autopilot Computer

  • RF300 Rudder Feedback (Frequency)

  AP70 MK2 Control Unit Only (000-14958-001):

  • AP70 MK2 Autopilot Controller

  • N2K-T-RD Network T-Connector

  • N2KEXT-15RD 15ft Network Extension Cable

  • 4-Pin Power Cable
