Simrad Bronze Thru-Hull Transducer 9-Pin.

Simrad Thru-Hull Transducers: B258 Bronze and xSonic Airmar B45

Product Description

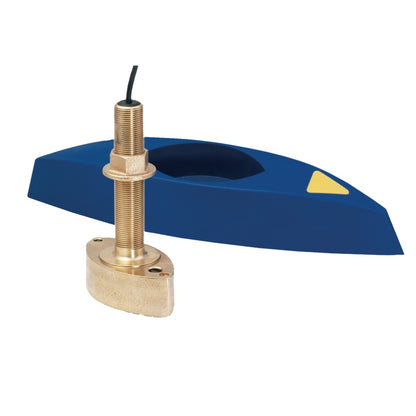

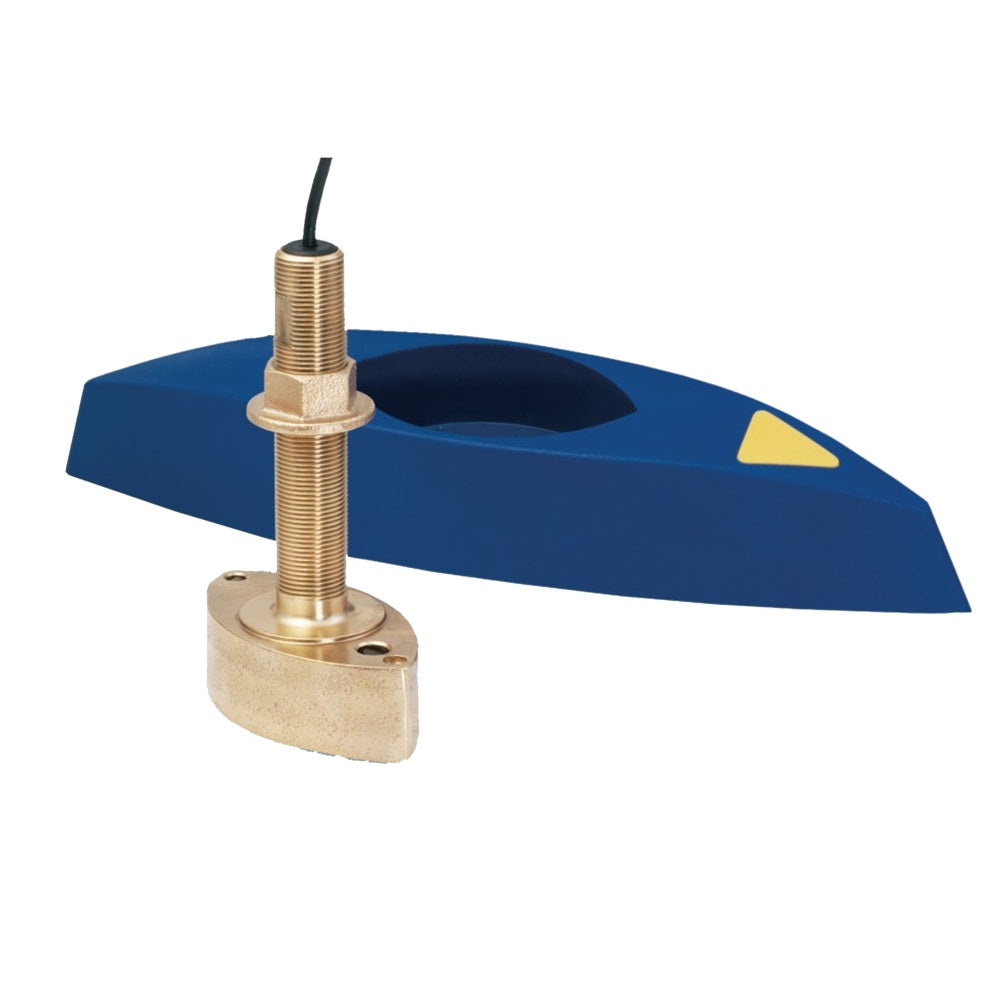

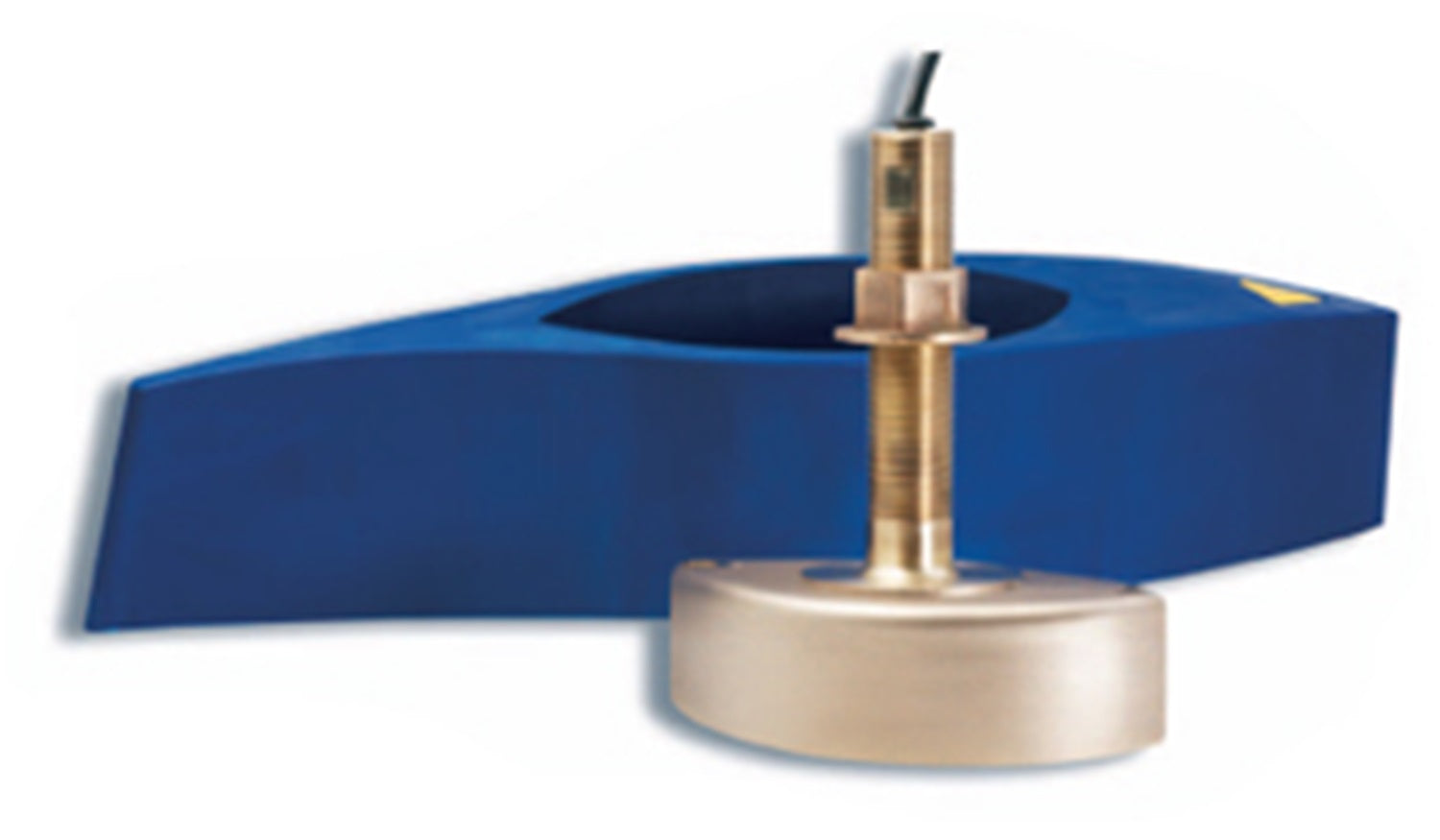

Simrad’s B258 Bronze Thru-Hull transducer is a powerful 1kW RMS depth and temperature sensor designed for fast sportfishing vessels that can accommodate a thru-hull transducer with a fairing. It operates on dual frequencies, 50 kHz and 200 kHz, enabling excellent bottom and structure fishing capabilities in both shallow and deep waters, up to 500 meters (1640 feet). It provides highly accurate echosounding data even at speeds over 30 knots, with depth and temperature calculations from a compact bronze housing built to withstand harsh marine environments.

The Simrad xSonic Airmar B45 is another bronze thru-hull depth/temperature transducer operating at 50/200 kHz sonar frequencies, suitable for similar marine applications requiring precise water depth and temperature measurements.

Model Numbers

• 000-13964-001 — Simrad B258 Bronze Thru-Hull Transducer, 1kW RMS, 50/200 kHz

• 000-13946-001 — Simrad xSonic Airmar B45 Bronze Thru-Hull Transducer, 50/200 kHz

Key Features

• Dual-frequency operation at 50 kHz and 200 kHz for detailed target resolution

• Accurate depth and temperature sensing

• Suitable for fast vessels traveling between 1 and 45 knots

• Depth range for excellent bottom tracking up to 500m (1640 feet)

• Durable bronze construction designed to endure marine environments

• Compact thru-hull installation with fairing for optimal hydrodynamic performance

Comparison Table

What’s in the Box

• Transducer unit with bronze housing

• Accessories for thru-hull installation (specifics depend on model)
