Simrad NAC-1 Outboard Pilot Hydraulic Pack, MKII PUMP-1.

$1,829.00

~~$1,829.00~~ $1,829.00

Sold out

Shipping calculated at checkout.

Low stock: 6 left

Model: Precision-9 Heading Sensor Precision-9 Heading Sensor Point-1 AP Heading and GPS Sensor

Description

Simrad Outboard Pilot Hydraulic Pack with MKII Pump-1 and Precision-9 Heading Sensor

Product Description

The Simrad Outboard Pilot Hydraulic Pack is designed as an MFD Autopilot add-on system suited for boats up to 30 feet with single outboard motors. It offers easy installation with NAC-1 plug & socket connectors requiring no screw terminals or wire stripping, combined with a dash-mount button for quick Auto/Standby activation. The system supports steering to heading, course, or route with automatic turn patterns and allows adding a second helm station using the MFD Power steer commands, eliminating the need for extra hydraulics or a second steering wheel.

The pack features the high-efficiency, super-quiet 0.8L hydraulic gear Pump-1 MKII and includes either the Precision-9 Compass or the Point-1 AP Heading and GPS Sensor, depending on the model.

Model:

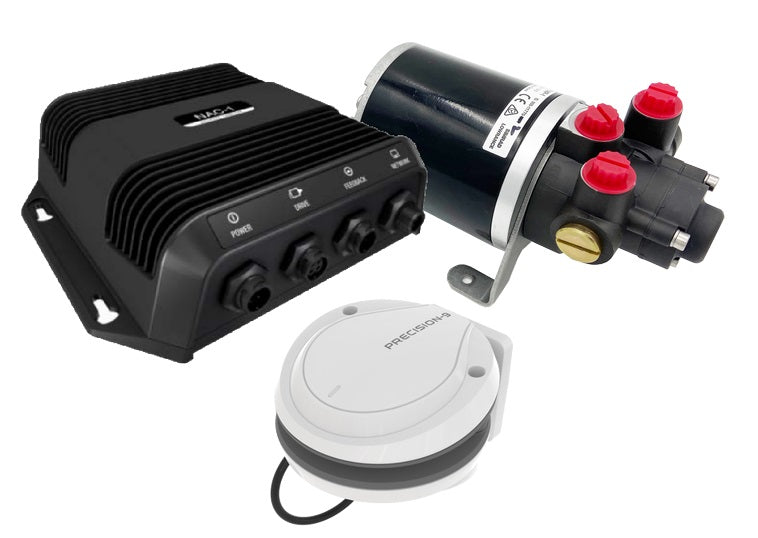

000-15951-001 — Outboard Pilot Hydraulic Pack with MKII Pump-1 and Precision-9 Heading Sensor

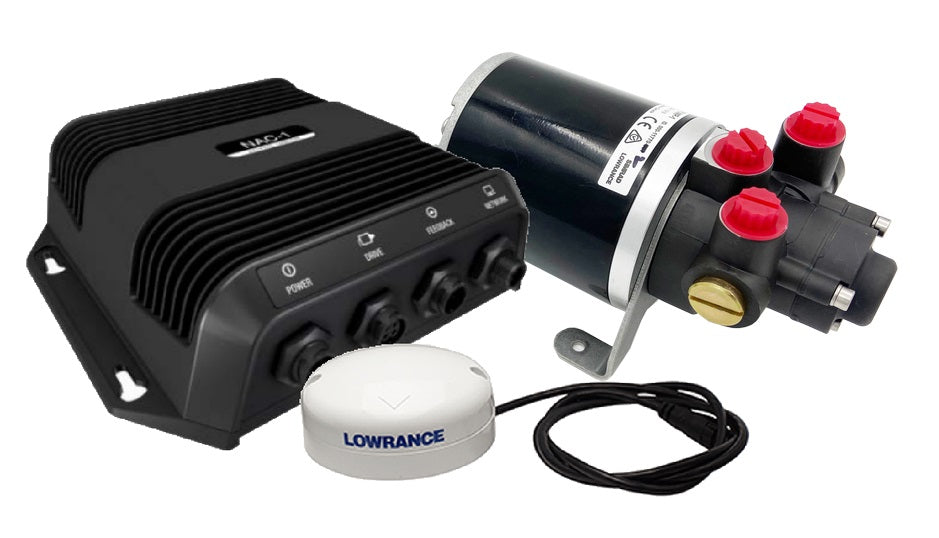

000-15952-001 — Outboard Pilot Hydraulic Pack with MKII Pump-1 and Point-1 AP Heading and GPS Sensor

Key Features

Easy installation with plug & socket NAC-1 connectors (no wire stripping)
Dash-mount button for one-touch Auto/Standby activation
Steer to heading, course, or route with automatic turn patterns
High-efficiency, quiet 0.8L hydraulic gear Pump-1 MKII
Add second helm station via MFD Power steer commands without extra hydraulics or steering wheel
Designed for boats up to 30 ft with single outboard motors
Certified NMEA 2000® connectivity with multiple cable options
Includes advanced heading sensors for accurate navigation (Precision-9 or Point-1 AP)

Comparison Table

Specification	Model 000-15951-001	Model 000-15952-001
Heading Sensor	Precision-9 Compass	Point-1 AP Heading and GPS Sensor
Hydraulic Pump	Pump-1 MKII (0.8L)	Pump-1 MKII (0.8L)
Supported Boat Length	Up to 30 feet	Up to 30 feet
Power Supply	12V DC	12V DC
Max Drive Output	8A continuous, 16A peak	8A continuous, 16A peak
Network Interface	1x Micro C	1x Micro C

What’s in the Box

NAC-1 Autopilot Computer
Pump-1 MKII — 12V 0.8L hydraulic gear pump for outboard pilot
Autopilot pump fitting kit for ORB steering system
Metal Auto-Standby button
N2KEXT-2RD (0.61 m / 2 ft) NMEA 2000® cable
N2KEXT-6RD (1.82 m / 6 ft) NMEA 2000® cable
N2KEXT-15RD (4.55 m / 15 ft) NMEA 2000® cable
TR-120-KIT (set of 1 male and 1 female NMEA 2000® terminators)
Micro-C power cable
Low loss NMEA2000 4-way joiner
Precision-9 Compass (Model 000-15951-001) / Point-1 AP Heading and GPS Sensor (Model 000-15952-001)
