Simrad NAC VRF (Virtual Rudder Feedback). Core Pack.

Simrad NAC-3 and NAC-2 VRF Core Packs

---

Product Description

Simrad’s NAC-3 and NAC-2 VRF Core Packs are the essential control modules for marine autopilot systems, designed to serve different vessel sizes and power requirements. Both packs feature the advanced Precision-9 compass and a NMEA 2000 backbone starter kit for seamless integration with existing navigation electronics. Each NAC autopilot computer contains sophisticated algorithms for reliable helming across a wide range of sea states, and the ability to directly manage hydraulic or mechanical drive units, as well as solenoid valves.

The NAC-3 VRF Core Pack is intended for larger boats (10 meters/33 feet and above) with high-current hydraulic drives, mechanical drives, or solenoids, offering 30A continuous (50A peak) current capability. The NAC-2 VRF Core Pack is optimized for vessels up to 10 meters (33 feet), perfectly supporting low-current drives at 8A continuous (16A peak).

Both units support NMEA 2000® and NMEA 0183 networking, and feature variable voltage or resistive rudder feedback input, alarm outputs, and clutch or bypass actuation.

---

Model:

---

Key Features

• Sophisticated autopilot control with Continuum steering algorithms

• NAC-3: High-current output (30A continuous, 50A peak) for large vessels

• NAC-2: Low-current output (8A continuous, 16A peak) for smaller vessels

• Includes Precision-9 magnetic compass for accurate heading

• NMEA 0183 and NMEA 2000 network connectivity

• Variable voltage/resistive rudder feedback support

• On/off solenoid and clutch outputs for direct drive unit integration

• Waterproof/water-resistant housing (NAC-3: IPX7, NAC-2: IPX5)

• Compatible with mechanical, hydraulic, and solenoid valve drive types

• Comprehensive electrical interfacing for external alarms, mode selection, and feedback

---

Comparison Table

---

What’s in the Box

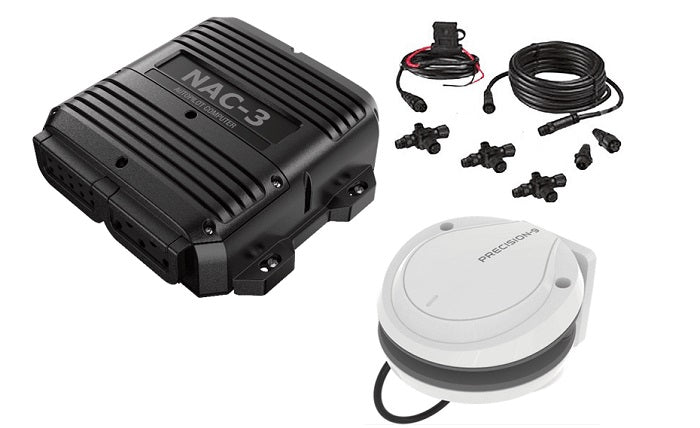

NAC-3 Core Pack (000-13338-001):

• NAC-3 Autopilot Computer

• Precision-9 Compass

• N2K Backbone Starter Kit

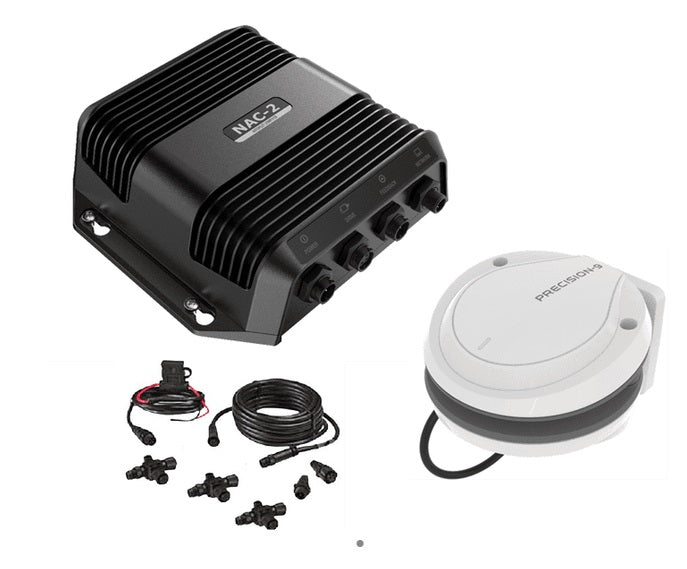

NAC-2 Core Pack (000-13337-001):

• NAC-2 Autopilot Computer

• Precision-9 Compass

• N2K Backbone Starter Kit
