Simrad NSX30 Radar Bundle with Active Imaging Transducer Halo 20+.

$4,799.00

~~$4,799.00~~ $4,799.00

Sold out

Shipping calculated at checkout.

Low stock: 1 left

Screen Size: 12 inch 12 inch 9 inch

Description

Simrad NSX Radar Bundles - NSX 12" & NSX 9" With Active Imaging Transducer Halo 20+

Models: 000-15378-001 | 000-15377-001

Product descriptions

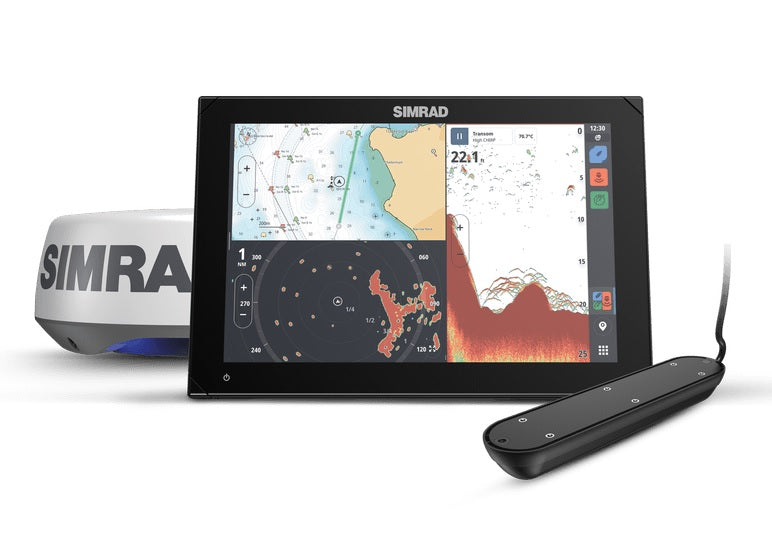

Simrad NSX 12" Radar Bundle (Model: 000-15378-001) — A 12" SolarMax™ IPS touchscreen MFD bundled with ActiveImaging™ 3-in-1 transducer, C-MAP® DISCOVER™ X chart (North America), and a HALO20+ radar. Designed for boaters who want a larger, sunlight-readable display plus high-performance sonar and short-range/long-range radar coverage in one package. Full Simrad system integration (autopilot, radar, NMEA2000, Simrad App) and easy Setup Wizard get you fishing and navigating fast.

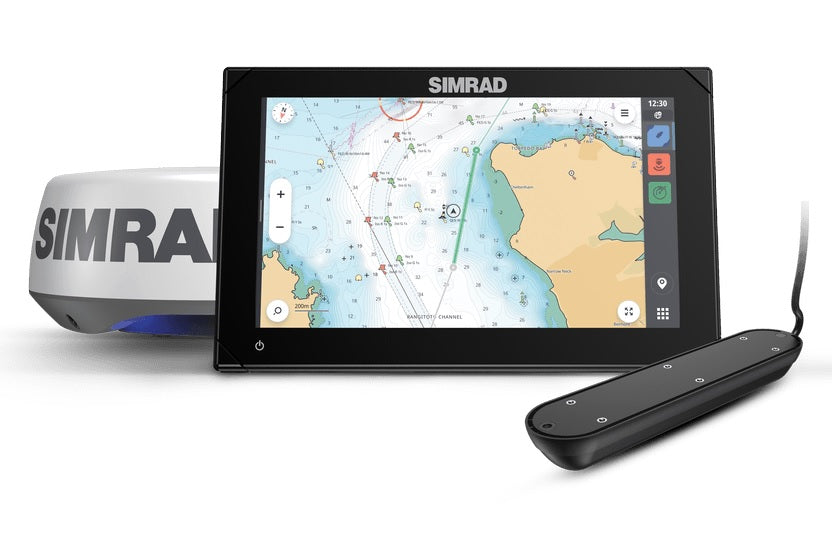

Simrad NSX 09" Radar Bundle (Model: 000-15377-001) — A 9" SolarMax™ IPS touchscreen MFD bundled with ActiveImaging™ 3-in-1 transducer, C-MAP® DISCOVER™ X chart (North America), and a HALO20+ radar. Compact, powerful, and ideal for boats that need a smaller helm footprint without sacrificing charting, sonar, or radar capability.

Key features.

SolarMax™ IPS multi-touch sunlight-readable display (viewable with polarized sunglasses)
ActiveImaging™ 3-in-1 sonar (CHIRP, SideScan, DownScan) with included transducer (1 kW capable)
C-MAP® DISCOVER™ X chart included (North America)
HALO20+ radar included (short/long range pulse compression performance)
Built-in 10 Hz GNSS (32 channels) - smooth, accurate position updates
Ethernet, Wi-Fi, Bluetooth, NMEA2000 networking; Halo radar compatible
FishReveal™, Setup Wizard, Simrad App integration, autorouting with compatible charts
IPX6 / IPX7 waterproof rating; rugged shock, vibration and damp-heat specs

Combined comparison table

Spec / Feature	NSX 12" Radar Bundle (000-15378-001)	NSX 9" Radar Bundle (000-15377-001)
Display size & type	12" SolarMax™ IPS touchscreen	9" SolarMax™ IPS touchscreen
Resolution	1280 × 800 px	1280 × 720 px
Brightness / viewing	>1200 nits; 85° viewing angles	>1200 nits; 85° viewing angles
Sonar bundle	ActiveImaging™ 3-in-1 transducer (included)	ActiveImaging™ 3-in-1 transducer (included)
Radar bundle	HALO20+ + 10 m cable + RJ45->5-pin adapter	HALO20+ + 10 m cable + RJ45->5-pin adapter
Sonar ports / capability	1 × 9-pin Xsonic (1 kW capable); CHIRP/ActiveImaging	1 × 9-pin Xsonic (1 kW capable); CHIRP/ActiveImaging
Internal GPS	10 Hz, 32 channels	10 Hz, 32 channels
Ethernet	1 × 5-pin port	1 × 5-pin port
NMEA-2000	1 × Micro-C (1 LEN)	1 × Micro-C (1 LEN)
Wi-Fi / Bluetooth	802.11b/g/n ; BT 4.0	802.11b/g/n ; BT 4.0
USB / external storage	1 × USB-A (5 V / 1.5 A), microSD	1 × USB-A (5 V / 1.5 A), microSD
Power (supply)	12 V DC (10–17 V) — max ~29.7 W	12 V DC (10–17 V) — max ~18.8 W
Recommended fuse	3 A	3 A
Mounting	Bracket (supplied), panel or flush	Bracket (supplied), panel or flush
Dimensions (with bracket)	W: 319.5 × H: 215.1 × D: 86.0 mm	W: 263.0 × H: 172.6 × D: 80.6 mm
Environmental	IPX6/7; −15°C to +55°C; IEC damp-heat & shock/vibration	IPX6/7; −15°C to +55°C; IEC damp-heat & shock/vibration
Charts included	C-MAP DISCOVER X (NA)	C-MAP DISCOVER X (NA)
Best for	Larger helms or primary MFD wanting radar + sonar + chart	Smaller helms or secondary station wanting radar + sonar + chart
