Simrad Reversible Hydraulic Pumpset Series.

$1,499.00

~~$1,499.00~~ $1,499.00

Sold out

Shipping calculated at checkout.

Low stock: 2 left

Model: Pump-5 (24V 3.0L Pumpset) Pump-5 (24V 3.0L Pumpset) Pump-4 (12V 3.0L Pumpset) Pump-3 (12V 1.6L Pumpset) Pump-2 ( 12V 0.8L Pumpset) Pump-1 (12V 0.8L Pumpset)

Description

Simrad Hydraulic Pumpsets – Pump-5 MKII, Pump-4 MKII, Pump-3, Pump-2 MKII, and Pump-1 MKII

Product Description

Simrad's hydraulic pumpsets deliver reliable and efficient hydraulic power for marine autopilot and steering systems. Designed for seamless integration with SteadySteer autopilots, these reversible gear pumps provide varying flow rates and voltage options to meet the needs of different vessel sizes and steering systems. Compatible with NAC autopilot computers, the pumps feature O-Ring Boss (ORB) connections and include necessary fittings for quick installation. They are built to provide consistent pump flow and smooth steering assistance, along with quiet operation for enhanced onboard comfort.

Model Numbers

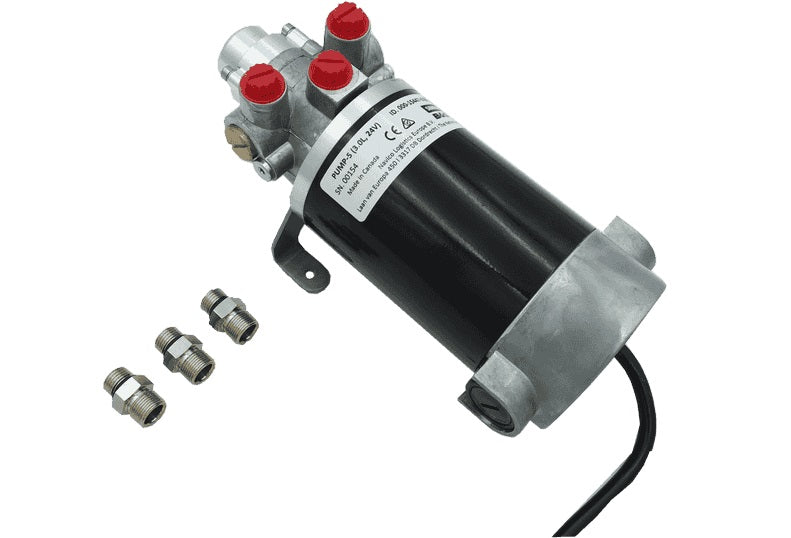

000-15447-002 — Pump-5 MKII, 24V Hydraulic 3.0L Pumpset
000-15446-002 — Pump-4 MKII, 12V Hydraulic 3.0L Pumpset

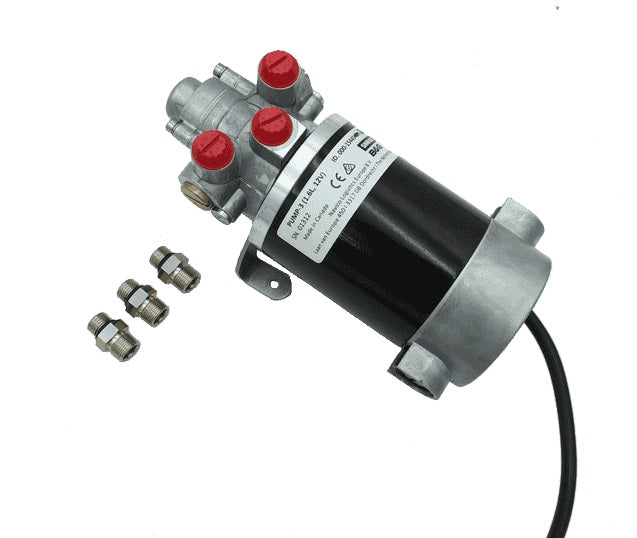

000-15445-001 — Pump-3, MKII 12V Hydraulic 1.6L Pumpset
000-15444-002 — Pump-2 MKII, 12V Hydraulic 0.8L Pumpset

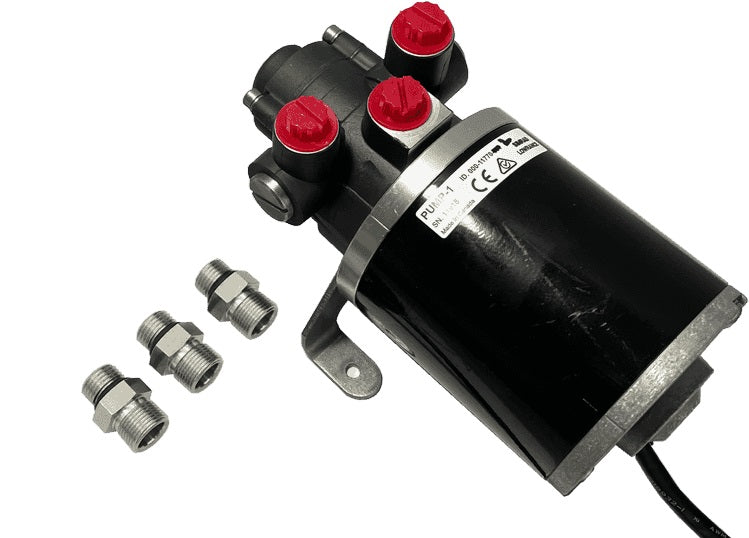

000-11770-002 — Pump-1 MKII, 12V Hydraulic 0.8L Pumpset

Key Features

High-efficiency reversible hydraulic gear pumps designed for marine autopilot and steering systems
Designed for SteadySteer compatibility with NAC autopilot computers (NAC-3/NAC-2/AC42/AC12)
Variety of flow rates for different vessel sizes and steering requirements (from moderate to high flow rates)
O-Ring Boss (ORB) connections with included fittings for straightforward installation
Quiet operation suitable for comfortable onboard environments
Compatible with hydraulic systems using cylinder displacements ranging from 80 cc to 960 cc
Robust build quality ensuring reliable performance under marine conditions
Voltage options: 12 V DC for Pump-1, Pump-2, Pump-3, Pump-4; 24 V DC for Pump-5
Reversible operation allowing for precise control of hydraulic steering direction

Comparison Table

Feature	Pump-5 MKII (24V)	Pump-4 MKII (12V)	Pump-3 (12V)	Pump-2 MKII (12V)	Pump-1 MKII (12V)
Voltage	24V DC	12V DC	12V DC	12V DC	12V DC
Flow Rate	3.0 L/min (183 cu.in./min)	3.0 L/min (183 cu.in./min)	1.6 L/min (98 cu.in./min)	0.8 L/min (49 cu.in./min)	0.8 L/min
Cylinder Displacement	290 - 960 cc (17.7 - 58.5 cu.in.)	290 - 960 cc (17.7 - 58.5 cu.in.)	160 - 550 cc (9.8 - 33.5 cu.in.)	80 - 250 cc (4.9 - 15.2 cu.in.)	Up to 14 cu.in. (SeaStar compatible)
Reversible Pump	Yes	Yes	Yes	Yes	Yes
ORB Connections	3 x ORB-5 to 9/16 UNF fittings included	3 x ORB-5 to 9/16 UNF fittings included	3 x ORB-5 to 9/16 UNF fittings included	3 x ORB-5 to 9/16 UNF fittings included	3 x ORB-5 to 9/16 UNF fittings included
SteadySteer Compatibility	NAC-3 / AC42 required	NAC-3 / AC42 required	NAC-3 / AC42 required	NAC-2/AC12 required	Compatible
