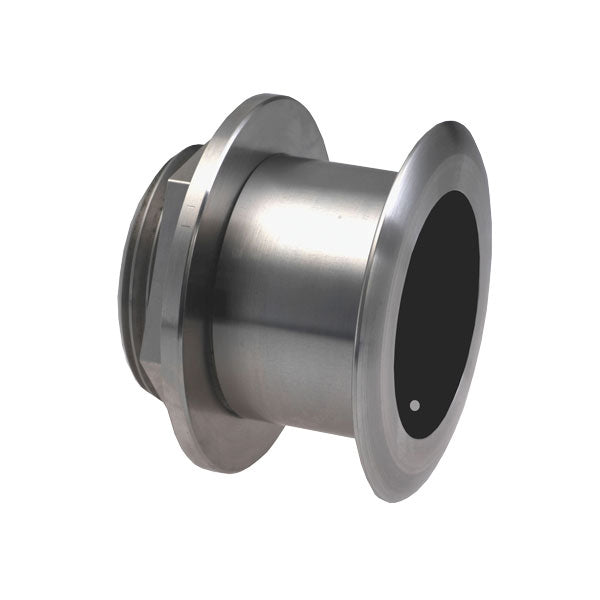

Simrad SS164 Stainless Steel Transducers Tilt 50/200Khz KHZ 9-PIN Thru Hull.

$1,428.00

~~$1,428.00~~ $1,428.00

Sold out

Shipping calculated at checkout.

Low stock: 1 left

Tilt Angle: 20deg 20deg 12deg 0deg

Description

Simrad XSONIC SS164 50/200 kHz Stainless Steel Transducers

Product Description

The Simrad XSONIC SS164 transducers are high-performance stainless steel models specifically designed for metal-hulled boats such as fast tournament-sportfishing vessels without the need for a high-performance fairing. Utilizing innovative Tilted Element™ technology, these 1 kW RMS transducers deliver powerful and accurate depth and temperature readings with minimal hull protrusion (less than 6.35 mm or 0.25 inches), allowing safe contact with trailer rollers and bunks without damage.

The ceramic arrays inside the housing are tilted to provide a perfectly vertical beam with maximum energy directed directly below the boat, optimizing fish detection and bottom imaging. The SS164 models operate on a frequency range of 50/200 kHz, offering broad coverage ideal for both shallow and deeper waters.

Available in 0°, 12°, and 20° tilt options, these transducers offer flexibility to suit different hull shapes and installation requirements.

Model:

000-13918-001 — SS164 50/200 kHz Stainless Steel 20° Tilt with 9-Pin Connector
000-13917-001 — SS164 50/200 kHz Stainless Steel 12° Tilt with 9-Pin Connector
000-13916-001 — SS164 50/200 kHz Stainless Steel 0° Tilt with 9-Pin Connector

Key Features

Depth and fast-response water temperature sensing
Dual-frequency operation at 50/200 kHz
1 kW RMS power for enhanced target detection and fishfinder performance
Stainless steel flush-mount housing with minimal hull protrusion (0.25 inches)
Suitable for metal hulls, allowing contact with trailer rollers and bunks
Tilted Element™ technology for vertical beam with maximum energy below boat
Available in 0°, 12°, and 20° tilt configurations for diverse hull compatibility
Durable ceramic arrays and robust construction for marine use

Comparison Table

Feature	20° Tilt (000-13918-001)	12° Tilt (000-13917-001)	0° Tilt (000-13916-001)
Frequency Range	50/200 kHz	50/200 kHz	50/200 kHz
Power	1 kW RMS	1 kW RMS	1 kW RMS
Housing	Stainless steel flush mount	Stainless steel flush mount	Stainless steel flush mount
Housing Protrusion	Less than 6.35 mm (0.25")	Less than 6.35 mm (0.25")	Less than 6.35 mm (0.25")
Hull Compatibility	Metal hulls	Metal hulls	Metal hulls
Tilt Angle	20°	12°	0°
Application	Sportfishing, tournament boats	Sportfishing, tournament boats	Sportfishing, tournament boats
