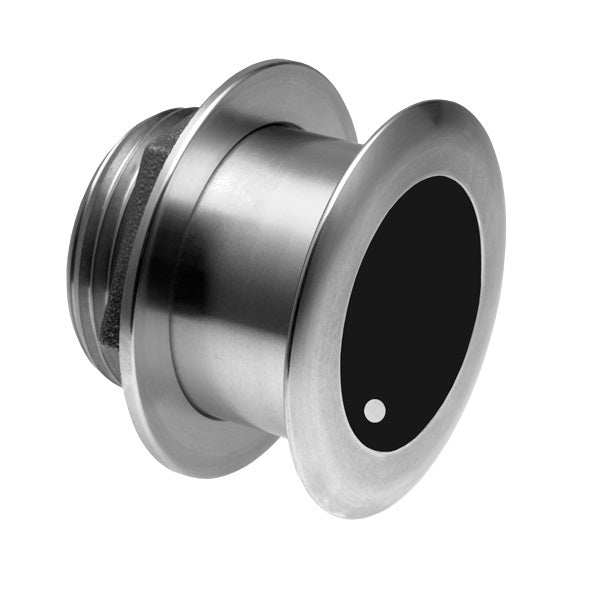

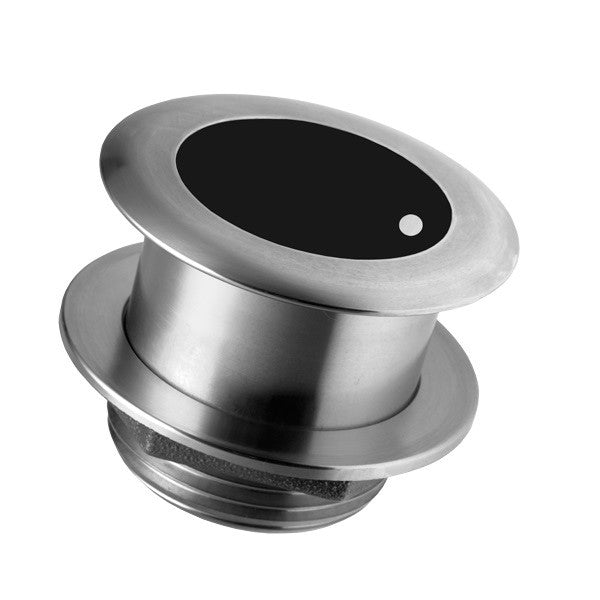

Simrad SS175H-W Tilt 130-210KHZ Stainless SteelThru-Hull Transducers.

Simrad SS175H-W Stainless Steel CHIRP Thru-Hull Transducers with Tilted Element

Product Description

The Simrad SS175H-W series consists of stainless steel CHIRP thru-hull transducers ideal for sportfishing and commercial vessels up to 8 meters (25 feet) in size. Operating in a high CHIRP frequency range of 130-210 kHz, these transducers feature a wide 25° beam for excellent fish target detection and coverage in shallow to medium depths. They offer depth detection up to 310 meters (1,000 feet) with high resolution and coverage.

Constructed with stainless steel housings, these transducers are suitable for fiberglass and wood hulls. The single internal broadband ceramic element is tilted at angles of 0°, 12°, or 20° to provide optimal deadrise compensation and tailored performance depending on the hull characteristics of the vessel.

Model:

• 000-13782-001 — SS175H-W Stainless Steel CHIRP Thru Hull, 20° Tilted Element

• 000-13781-001 — SS175H-W Stainless Steel CHIRP Thru Hull, 12° Tilted Element

• 000-13780-001 — SS175H-W Stainless Steel CHIRP Thru Hull, 0° Tilted Element

Key Features

• High CHIRP frequency range: 130-210 kHz

• Wide 25° beam width for improved fish detection

• Depth capability of up to 310 meters (1,000 feet)

• Single internal broadband ceramic element

• Stainless steel thru-hull design for durability

• Suitable for fiberglass and wood hulls

• Tilted element available in 0°, 12°, or 20° for hull deadrise compensation

• Ideal for sportfishing and commercial applications on vessels up to 8m (25ft)

Comparison Table

What’s in the Box

• SS175H-W transducer with specified tilt angle

• 10-meter cable with 9-pin black connector (typically included with product)
