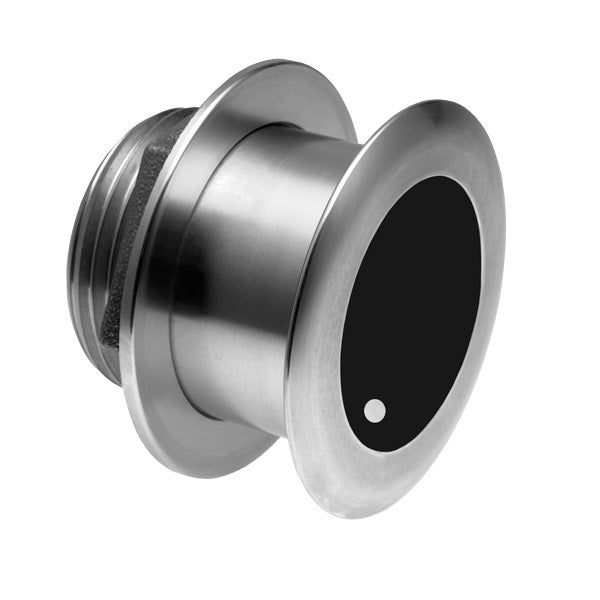

Simrad SS175L Tilt 40-75KHZ Stainless Steel CHIRP Thru-Hull Transducers 9-Pin Connectors.

Simrad SS175M Stainless Steel CHIRP Thru-Hull Transducers for Steel or Aluminum Hulls

Product Description

The Simrad SS175M stainless steel CHIRP thru-hull transducers are designed specifically for steel or aluminum hull boats, such as commercial fishing vessels, charter boats, and tournament anglers' vessels. Operating on low CHIRP frequencies from 40 to 75 kHz, these transducers provide a total bandwidth of 35 kHz from one unit, covering popular fishing frequencies including 50 kHz. The broadband CHIRP technology offers bottom detection down to 3,000 meters (10,000 feet) with 5 to 10 times greater detail and resolution, allowing precise differentiation between baitfish, gamefish, and underwater structures.

Constructed with durable steel housing, these transducers come with a 9-pin black connector and offer depth and fast-response water temperature sensing. They are available in three tilted element configurations (0°, 12°, and 20°) to accommodate different hull shapes and optimize sonar performance.

Model:

• 000-13776-001 — SS175M Stainless Steel CHIRP Thru Hull with 20° Tilted Element

• 000-13775-001 — SS175M Stainless Steel CHIRP Thru Hull with 12° Tilted Element

• 000-13774-001 — SS175M Stainless Steel CHIRP Thru Hull with 0° Tilted Element

Key Features

• Low CHIRP frequency range: 40-75 kHz with 35 kHz total bandwidth

• Covers popular 50 kHz fishing frequency plus full bandwidth

• Depth and fast-response water temperature sensor

• Steel transducer housing suitable for steel and aluminum hulls

• 9-pin black connector for straightforward installation

• Broadband CHIRP enables detailed bottom detection up to 3,000 m (10,000 ft)

• Tilted ceramic element for hull deadrise compensation available in 0°, 12°, or 20° tilt options

Comparison Table

What’s in the Box

• SS175M transducer with specified tilt angle

• 9-pin black connector cable
