Simrad SS60 Stainless Steel 600 W 50/200KHZ 9-PIN Thru Hull.

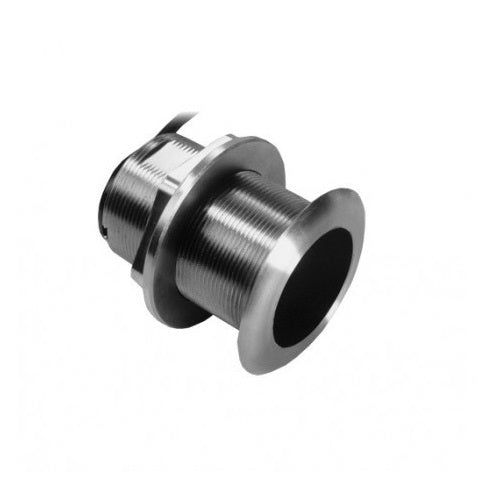

Simrad SS60 Stainless Steel 600 W Thru-Hull Depth/Temperature Transducers

Product Description

The Simrad SS60 transducers are stainless steel, thru-hull, dual-frequency depth and temperature sensors designed for reliable and accurate underwater measurement. Operating at 50 kHz and 200 kHz frequencies, these transducers provide detailed target information in shallow water and excellent bottom tracking in deep water. The ceramic element inside the transducer is tilted to offer built-in hull deadrise compensation, improving echo returns and accuracy of depth readings.

Two models are available: one with a 20° tilt suitable for boats with 16° to 24° hull deadrise, and another with a 0° tilt ideal for boats with 0° to 14° hull deadrise. Both feature a low-profile housing with only 5 mm protruding outside the hull to minimize drag. They are compatible with systems like Simrad NSSevo3 and Lowrance HDS G3, and come with a durable black 9-pin connector and a 10-meter cable for straightforward installation.

Model:

• 000-13786-001 — SS60 Stainless Steel 600 W Thru-Hull Depth/Temperature Transducer, 20° Tilt

• 000-13784-001 — SS60 Stainless Steel 600 W Thru-Hull Depth/Temperature Transducer, 0° Tilt

Key Features

• Dual frequency operation at 50/200 kHz for versatile depth and target detection

• Integrated temperature sensor for accurate water temperature readings

• Tilted ceramic element for hull deadrise compensation (20° and 0° tilt options)

• Low profile stainless steel housing with minimal drag (5 mm hull protrusion)

• 600 W power rating for reliable signal strength

• 10-meter cable with 9-pin black connector included

• Compatible with Simrad NSSevo3 and Lowrance HDS G3 systems

• Suitable for various hull deadrise configurations (0° to 24°)

Comparison Table

What’s in the Box

• SS60 transducer with specified tilt angle

• 10-meter cable with 9-pin black connector
