Sionyx CRV-500C Nightwave Low Light Fixed Mount Camera Housing.

Sionyx Nightwave CRV-500C Series

Models:

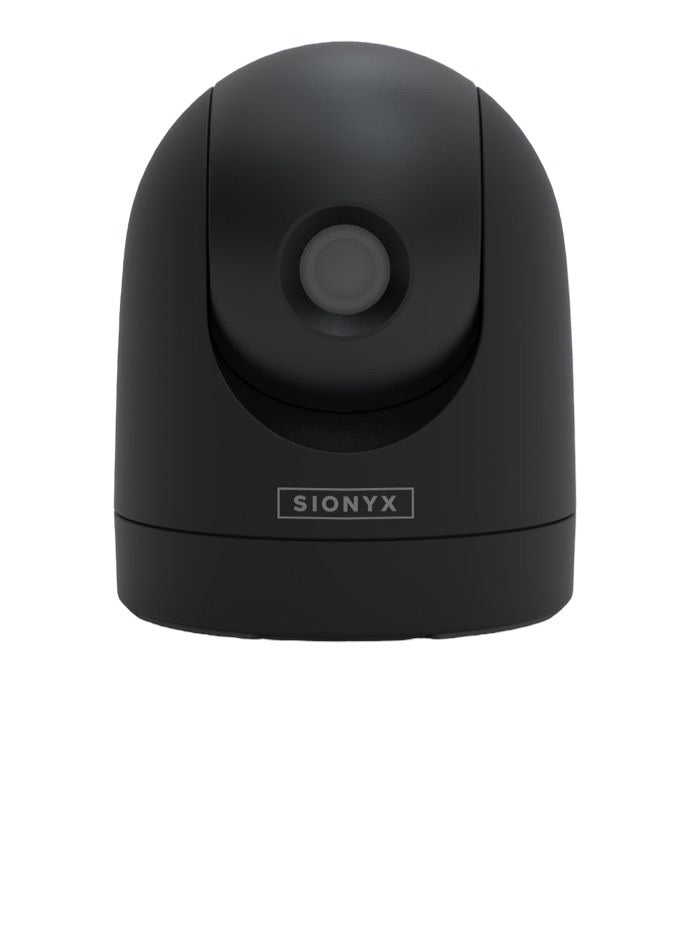

C014900 – Nightwave Ultra Low-Light Marine Camera (Black Housing)

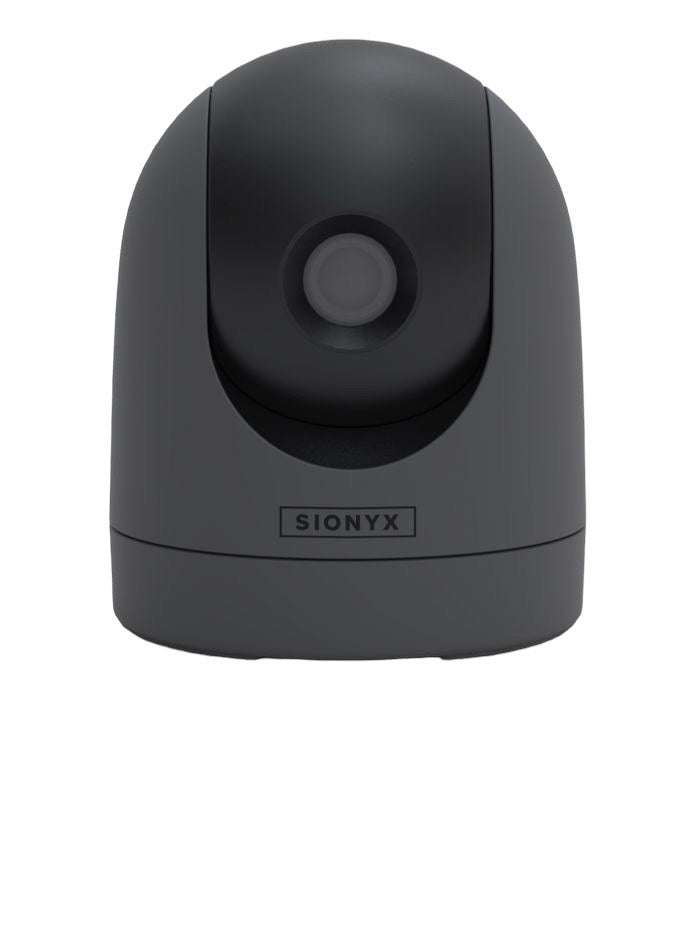

C014700 – Nightwave Ultra Low-Light Marine Camera (Gray Housing)

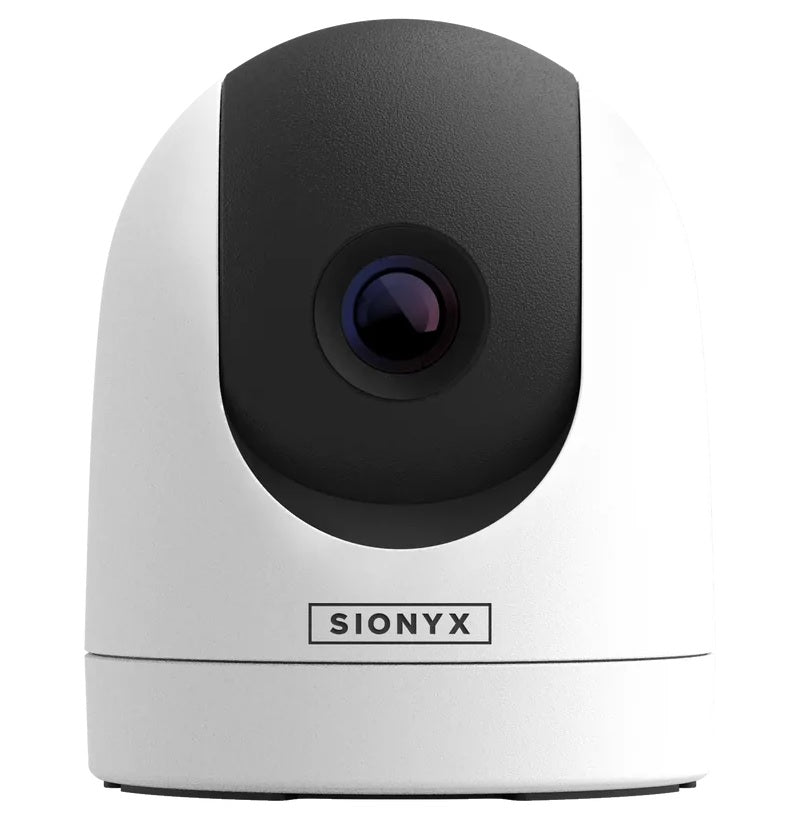

C012800 – Nightwave Ultra Low-Light Marine Camera (White Housing)

Product Description

Sionyx Nightwave ultra low-light marine cameras utilize patented Black Silicon BSI CMOS sensors for <1 millilux moonless starlight night vision, detecting man-sized objects at 150m under 1/4 moon conditions. Featuring 1280x1024 resolution at 60Hz, 44° horizontal FOV, IP67 water/dust resistance, and direct analog video connection (NTSC, SMA/BNC/RCA) to major MFD brands, these cameras offer flexible permanent or temporary mounting (1/4"-20 tripod/RAM mount compatible, manual tilt), Wi-Fi/Bluetooth app control, 12VDC fused power, and rugged construction for safe night navigation, fishing, and docking.

Key Features

• XQE1350 BSI CMOS sensor: 1280x1024 @ 60Hz, <1 millilux sensitivity, 400-1200nm spectrum

• 44° horizontal FOV, fixed focus 10m-infinity, 16mm f/1.4 lens

• IP67 rated (submersible 3ft/30min), -20°C to +50°C operation, IEC60945 shock/vibration

• NTSC analog video out (SMA/BNC/RCA), Wi-Fi/Bluetooth app control (iOS App Store)

• 12VDC fused power (tinned copper wires), UV-resistant polycarbonate housing (870g, 5x5x6")

• Flexible mounting: permanent flat surface, upside-down T-top, tripod/RAM mount

Comparison Table

What's in the Box

• Sionyx Nightwave camera (Black, Gray, or White housing)

• Power/video cable

• BNC to RCA adapter

• 2A inline fuse

• Removable mounting base

• Mounting hardware

• Mounting gasket

• Mounting template
