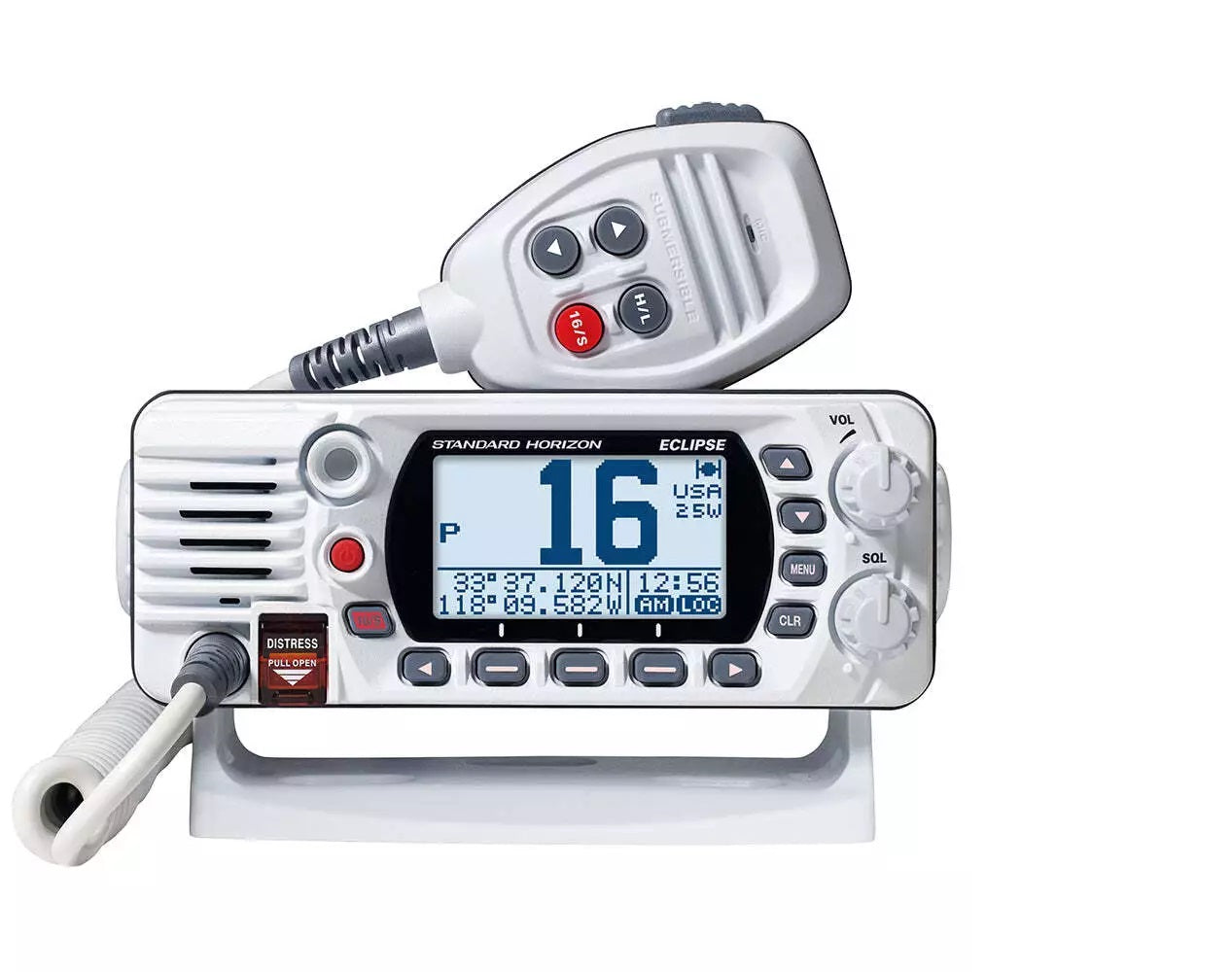

Standard Horizon Eclipse Class D 25 Watt VHF Series.

Standard Horizon Eclipse Series GX1410

Models:

GX1410B – 25W Fixed Mount VHF Black (No GPS)
GX1410W – 25W Fixed Mount VHF White(No GPS)
GX1410GB – 25W Fixed Mount VHF/GPS Black
GX1410GW – 25W Fixed Mount VHF/GPS White

Product Description

Standard Horizon Eclipse Series GX1410 fixed mount VHF radios deliver affordable Class D DSC functionality in ultra-compact designs with intuitive E2O menu systems, oversized full dot-matrix displays (31x55mm), and IPX8 submersible ratings (1.5m/30min). Featuring separate CH70 receivers for uninterrupted DSC calls, radio controls on the microphone, NOAA weather alerts, programmable scans, and NMEA0183 connectivity, the base GX1410 models require external GPS while GX1410G versions include built-in 66-channel WAAS GPS for instant DSC positioning without wiring. All support 25W transmit power across USA/International/Canadian channels with distress MAYDAY, individual, urgency, safety, and position report capabilities.

Key Features

• ITU-R M493-16 Class D DSC with test calls and auto channel change

• Separate CH70 receiver for DSC even during voice communications

• E2O Easy-to-Operate icon/menu system with programmable soft keys

• Oversized 31x55mm full dot-matrix display with adjustable backlight

• IPX8 waterproof (1.5m/30min) and all marine channel coverage

• NOAA weather alerts, 10 favorite channel presets, priority/dual scan

• Built-in 66-channel WAAS GPS on G models (GX1410GB/GW)

• NMEA0183 in/out for GPS/chartplotter integration and position polling

Comparison Table

What's in the Box

• GX1410 VHF radio (color/model specific)

• Mounting bracket and knobs

• Power cord

• DSC warning sticker

• Owner's manual
