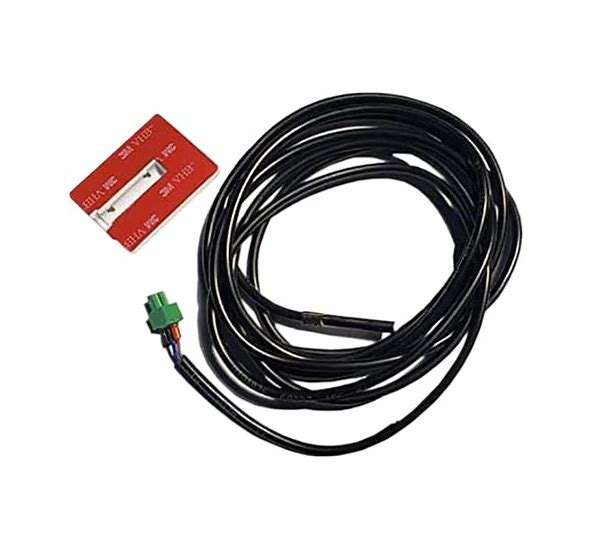

Xantrex 708-0080 Remote Battery Temperature Sensor

Product Description

The Xantrex Remote Battery Temperature Sensor is a precision sensor that monitors battery temperature and transmits data to compatible Xantrex charge controllers and battery chargers for automatic temperature-compensated charging.

Product Overview

In marine battery systems on boats, this sensor attaches to the battery case or terminal to provide real-time temperature readings, enabling PWM/MPPT solar controllers and TRUEcharge3 chargers to adjust charging voltage dynamically and optimize flooded lead-acid, AGM, or gel battery life in varying engine room or bilge conditions.

Key Specifications

• Cable length: 25 feet (7.6 meters)

• Temperature range: -40°C to +80°C sensing capability

• Connector: RJ11 modular plug for Xantrex BTS port


Technical Specifications

• Enables automatic voltage compensation for flooded batteries, preventing over/under-charging based on temperature (adds voltage when cold, reduces when hot).

• Compatible with Xantrex 30A/60A MPPT controllers, Freedom XC/BC chargers; over-temp shutdown above 70°C or below -25°C.

• IP65-rated sensor withstands marine humidity, vibration, and salt exposure.

What's in the Box

• Xantrex 708-0080 Remote Battery Temperature Sensor with 25ft cable
