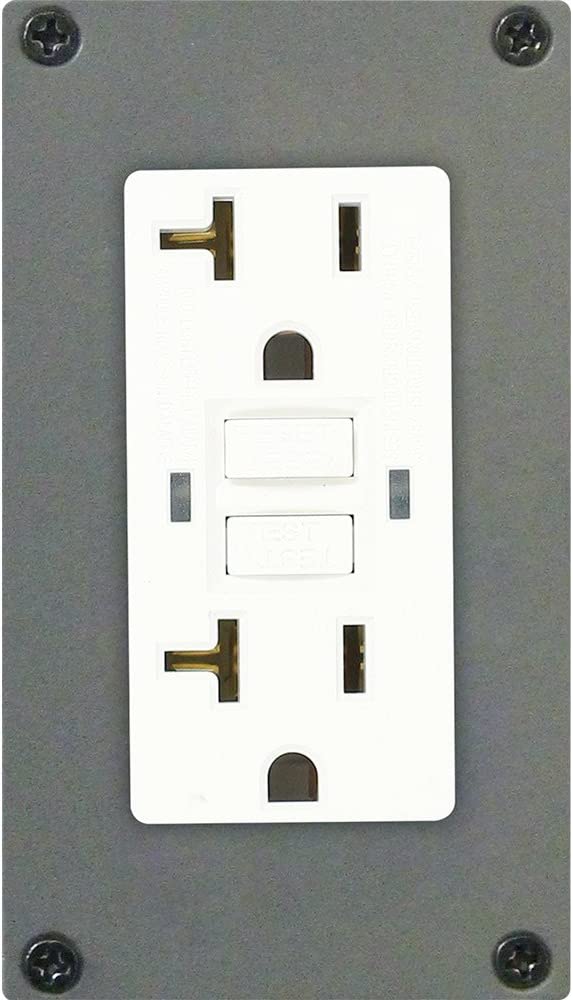

Xantrex 808-9817 GFCI Outlet Option for Freedom X and XC

Product Description

The Xantrex GFCI Outlet Option is a plug-and-play 20 Amp duplex receptacle that adds ground fault protection to Freedom X and XC inverter/charger models for safe 120V AC power access in marine and RV applications.

Product Overview

This accessory enables direct connection of electronics to non-GFCI Freedom X/XC inverters on boats, providing essential safety against electrical shocks while meeting mobile installation requirements during boating and offshore use.

Key Specifications

• NEMA 5-20R duplex outlet with 20A supplementary protector

• Voltage rating: 125 VAC

• Weight: 0.4 lbs (0.2 kg); Dimensions: 3.5 x 2.25 x 4.25 in

• Compatible with all Freedom X (817-1000/2000/3000) and XC (817-1050/2080) models

Technical Specifications

• Factory-wired easy-install connector plugs directly into inverter for immediate use

• Provides IP22-rated protection suitable for marine environments with optional drip shield

• Two-year warranty; meets NEC requirements for GFCI-protected outlets

What's in the Box

• Xantrex 808-9817 GFCI Outlet with pre-wired connector
