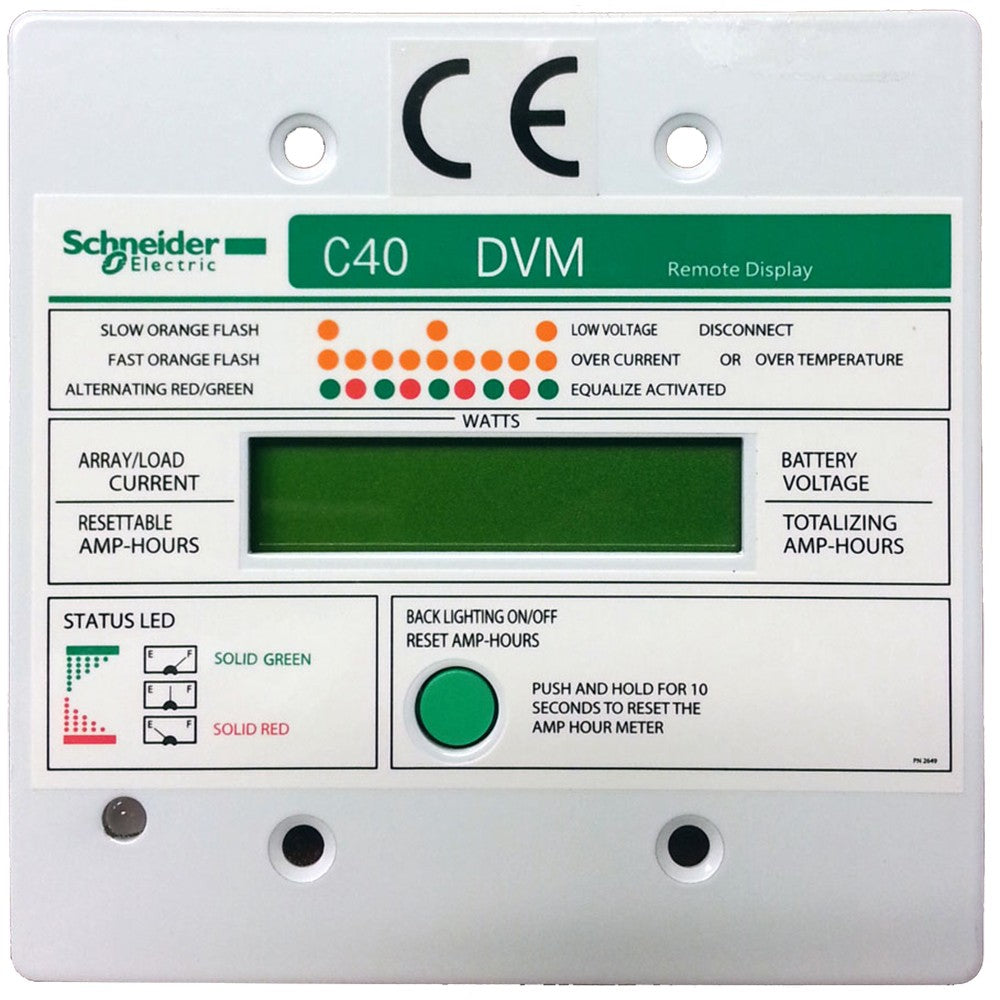

Xantrex CM/R-50 Remote with 50ft Cable

Product Description

The Xantrex CM/R-50 is a digital remote display panel designed for monitoring C-Series charge controllers (C35, C40, C60) in marine battery systems.

Product Overview

In marine applications, this remote meter enables boaters to track solar array performance, DC loads, or diversion loads from a convenient location, displaying real-time data to optimize power management on vessels with off-grid electrical setups.

Key Specifications

• Compatible with Xantrex C35, C40, C60 PWM charge controllers

• 50 ft (15 m) communication cable for remote installation

• Back-lit LCD for low-light visibility

• Multi-color LED status indicators

Technical Specifications

• Displays voltage, current (amperage), resettable amp-hours, and total amp-hours

• Amp-hour reset button with adjustable backlight dimming

• Supports cable runs up to 1,000 ft using six-conductor telephone cable

• Dimensions: 4.6 x 4.6 x 1.4 in (116 x 116 x 35 mm)

• Mounts flush or surface via double-gang outlet box

What's in the Box

• CM/R-50 digital remote display

• 50 ft (15 m) communications cable

• Mounting hardware for flush/surface installation

• User guide
