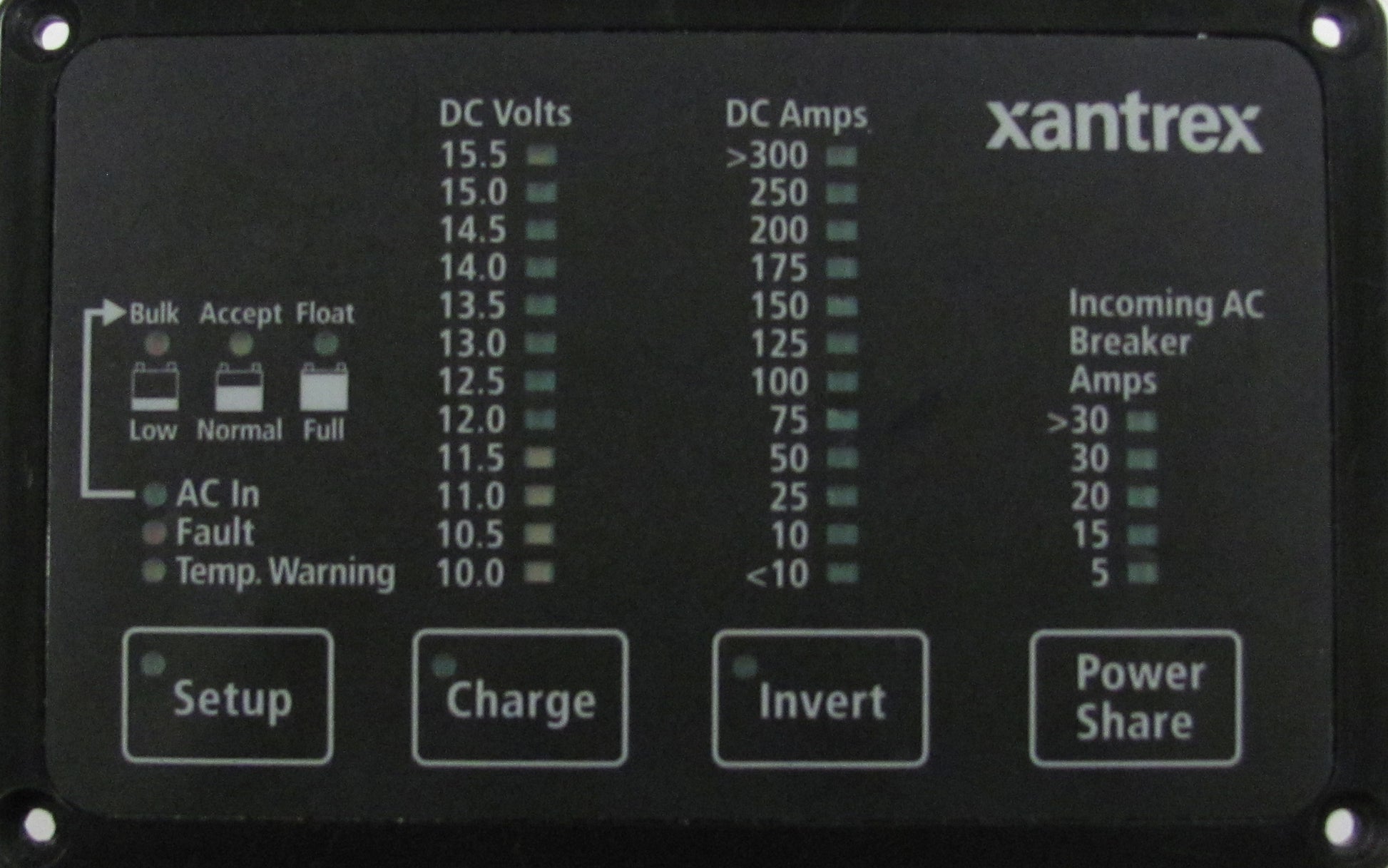

Xantrex FMD 12-25 Remote W/ 25ft Cable

Product Description

Xantrex FMD 12-25 Remote Panel monitors and controls Freedom series inverter/chargers from remote locations with a 25-foot cable. This panel displays battery status and system diagnostics for marine power management.

Product Overview

Boat operators use the FMD 12-25 to monitor DC voltage, AC loads, and inverter faults from helm stations during offshore passages. The splash-resistant design provides independent inverter/charger on/off control and battery state-of-charge indication.

Key Specifications

• Voltage bar graph: 10.0–15.5 VDC display range.

• DC amps bar graph up to 300 amps loaded.

• Dimensions: 5.75 x 3.75 x 1.75 inches.

• 25-foot cable for flexible helm installation.

Technical Specifications

• Compatible with Freedom Combi, 458, and Marine Series inverters.

• Multi-colored LED indicators for low battery and overload warnings.

• Operating temperature: 0–70°C marine environments.

• Splash-resistant front panel design.

What's in the Box

• Single FMD 12-25 Remote Panel.

• 25-foot control cable included.
