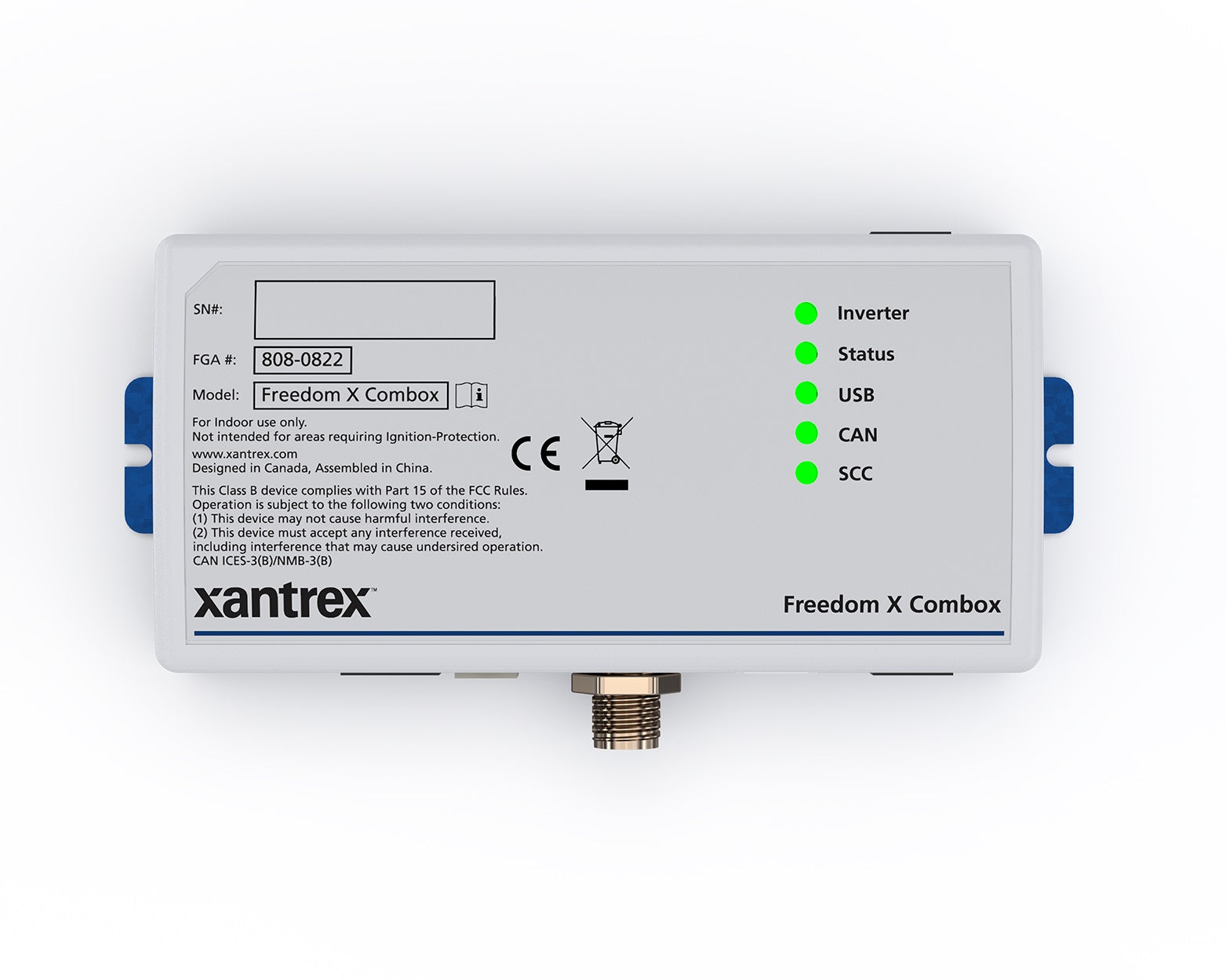

Xantrex Freedom COMBOX Communication Devices.

$158.04

~~$158.04~~ $158.04

Sold out

Shipping calculated at checkout.

Low stock: 2 left

Primary Application: RVs and Caravans RVs and Caravans Marine Vessels

Description

Xantrex Freedom COMBOX Communication Devices

Model:

Freedom COMBOX RV-C: RV/Caravan Communication Device, Model 808-0822
Freedom COMBOX NMEA2K: Marine Communication Device, Model 808-0822-01

Product Description

The Xantrex Freedom COMBOX communication devices enable seamless integration of Freedom X and XC series inverter/chargers with RV-C (for RVs/caravans) or NMEA 2000 (for marine) networks, allowing configuration, monitoring, and control through third-party systems. Compact and easy to install, these devices bridge inverter/chargers to RV-C or NMEA 2000 buses for centralized system management. Both models feature USB ports for firmware upgrades and configuration, and are compatible with the Freedom X Bluetooth Remote Panel for wireless monitoring and setup.

Key Features

Connects Freedom X and XC inverter/chargers to RV-C or NMEA 2000 networks
Enables configuration and monitoring via third-party RV/marine control systems
USB port for firmware upgrades and device configuration
Compatible with Freedom X Bluetooth Remote Panel (808-0817-02)
RV-C protocol for RVs/caravans (808-0822); NMEA 2000 for marine (808-0822-01)
Compact design for easy integration into existing RV/marine electrical systems

Comparison Table

Feature	COMBOX RV-C (808-0822)	COMBOX NMEA2K (808-0822-01)
Primary Application	RVs and Caravans	Marine Vessels
Network Protocol	RV-C	NMEA 2000
Compatible Inverters	Freedom X and XC Series	Freedom X and XC Series
Bluetooth Remote Compatible	Yes (Freedom X Remote Panel)	Yes (Freedom X Remote Panel)
USB Configuration Port	Yes (firmware upgrades)	Yes (firmware upgrades)
Third-Party Integration	RV control systems	Marine MFDs and monitoring
Dimensions	Compact network bridge	Compact network bridge
Power Requirements	Low power draw from bus	Low power draw from bus
