Xantrex Freedom SW Series Inverter/Chargers.

$1,964.95

~~$5,504.35~~ $1,964.95

Sold out

-64%

Shipping calculated at checkout.

21 in stock

Power & Current: 3000W (150A) 2000W (100A) 3000W (150A) 3000W (75A)

Description

Xantrex Freedom SW Series Inverter/Chargers

Models:

Freedom SW 2012: 2000W with 100A Charger, Model 815-2012 (12VDC)

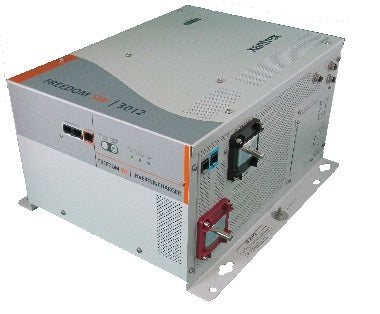

Freedom SW 3012: 3000W with 150A Charger, Model 815-3012 (12VDC)

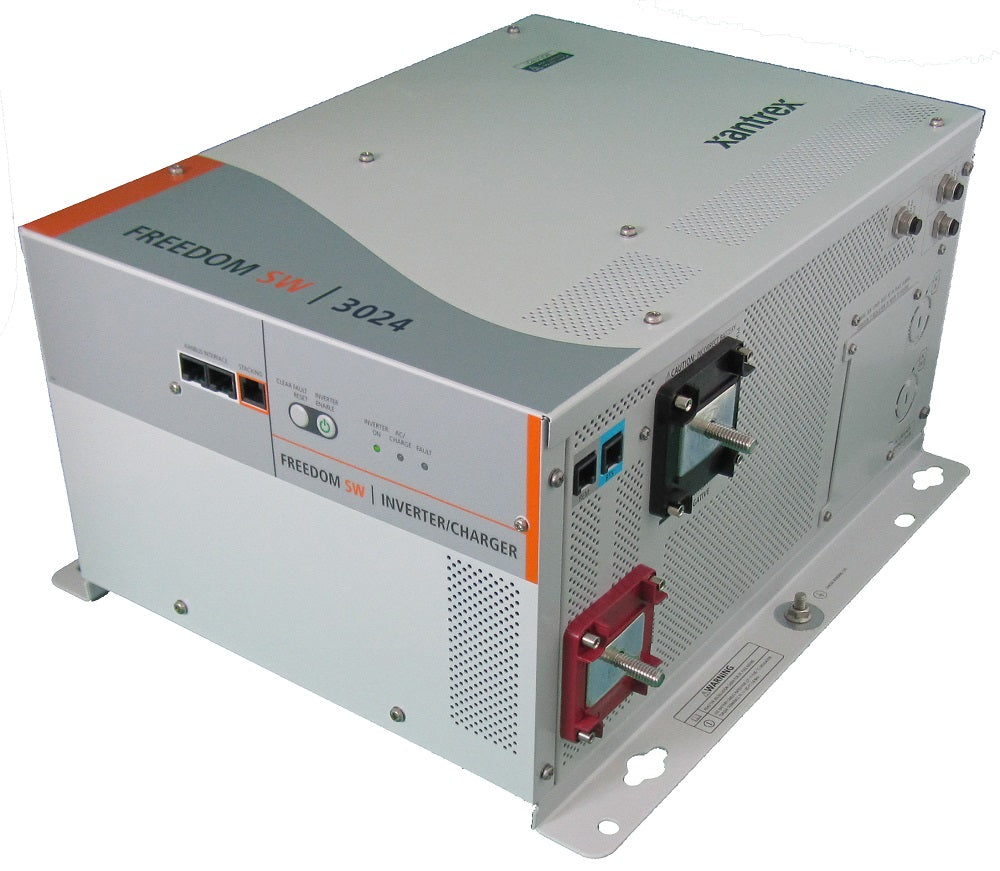

Freedom SW 3024: 3000W with 75A Charger, Model 815-3024 (24VDC)

Product Description

The Xantrex Freedom SW series represents the most advanced inverter/chargers available, featuring pure sine wave output, generator support mode, and parallel/series stacking capabilities for doubled power or 120/240V split phase operation. Designed for demanding commercial, marine, RV, and military applications, these units provide <20ms transfer time between AC sources and inverter power, conformal coated boards for humid environments, and multi-stage power factor corrected charging with remote temperature compensation. Key enhancements include ignition lockout, dead battery charging capability, Xanbus networking for system control, and UL458 marine supplement certification. The powerful surge ratings handle motor loads while maintaining optimal efficiency across wide temperature ranges.

Key Features

Pure sine wave output for sensitive electronics and demanding motor loads
Generator support mode supplements generator when loads exceed capacity
Parallel stacking doubles AC output; series stacking enables 120/240V split phase
<20ms transfer time with built-in 30A transfer relays (dual for 3000W models)
Power factor corrected, 3-stage charging with manual equalization and temperature compensation
Ignition lockout prevents battery drain (with remote panel)
Xanbus enabled for smartphone/tablet monitoring with Combox accessory
Wide operating range -4°F to 140°F with conformal coated boards for marine use

Comparison Table

Feature	Freedom SW 2012 (815-2012)	Freedom SW 3012 (815-3012)	Freedom SW 3024 (815-3024)
Continuous Power	2000 W	3000 W	3000 W
Surge Rating (5 sec)	4000 W	6000 W	6000 W
Battery Charger Current	100 A	150 A	75 A
Output Waveform	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
DC Input Voltage Range	10-16 VDC	10-16 VDC	20-32 VDC
Transfer Relay Rating	1 leg 30 A	2 legs 30 A each	2 legs 30 A each
Peak Efficiency	90%	94%	94%
AC Connections	Single phase in/out	Split phase in/dual out	Split phase in/dual out
Dimensions (H x W x L)	7.75 x 13.5 x 15.25"	7.75 x 13.5 x 15.25"	7.75 x 13.5 x 15.25"
Unit Weight	60.5 lb	73.7 lb	73.7 lb
Operating Temperature	-4°F to 140°F	-4°F to 140°F	-4°F to 140°F
