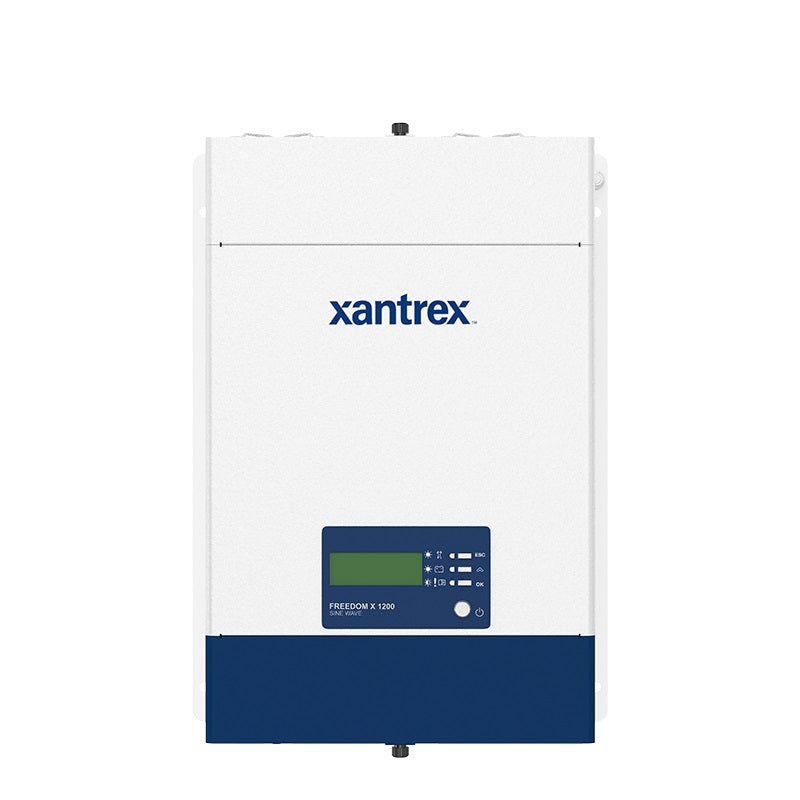

Xantrex Freedom X Pro 1200 1000 watt 120AC 12v DC Inverter

Xantrex Freedom X Pro 1200 1000 watt 120AC 12v DC Inverter

Model: 806-1212-05

Its rugged, industrial design ensures optimum performance in all conditions. Quick connect terminals at AC input & output and pre-wired pigtails cables enable fast and easy installation on the assembly line. Conformal-coated circuit boards and heavy duty metal casing make the FREEDOM X 1200 ideal for mobile applications. It also features true sine wave output, 2x continuous power surge rating, built-in transfer switch and low battery voltage shutdown among other features. The FREEDOM X 1200 Pro has built-in communication card for integration with third-party monitoring and control display panels through RV-C connectivity.

Specifications

Output Power (continuous)	1200 W
Surge Rating	2400 W
Output Voltage Range	110—125 Vac
Output Frequency Regulation (user configurable)	50/60 Hz
Output Wave Form	True Sine Wave
Efficiency (full load)	> 86%
Peak Efficiency	> 91%
No-load Input Power (producing output voltage)	< 10 W
Off Mode Current Draw (display off)	< 4 mA
AC Input Operating Voltage Range	95—130 Vac
AC Transfer Relay	30 A
DC Input Operating Voltage Range	10.5—16.5 Vdc
Transfer Time	10—20 ms
Battery Voltage (nominal)	12 Vdc
Low Battery Cut-out	Adjustable from 10.5—12.1 Vdc
Net Weight	10.4 lb (4.7 kg)
Dimensions	14.8 x 10.4 x 3.5" (376 x 263 x 91 mm)
