Xantrex Freedom X True Sinewave Inverters.

$549.95

~~$669.33~~ $549.95

Sold out

-18%

Shipping calculated at checkout.

Low stock: 1 left

Continuous Power: 1000W 1000W 2000W 2000W (24VDC) 3000W

Description

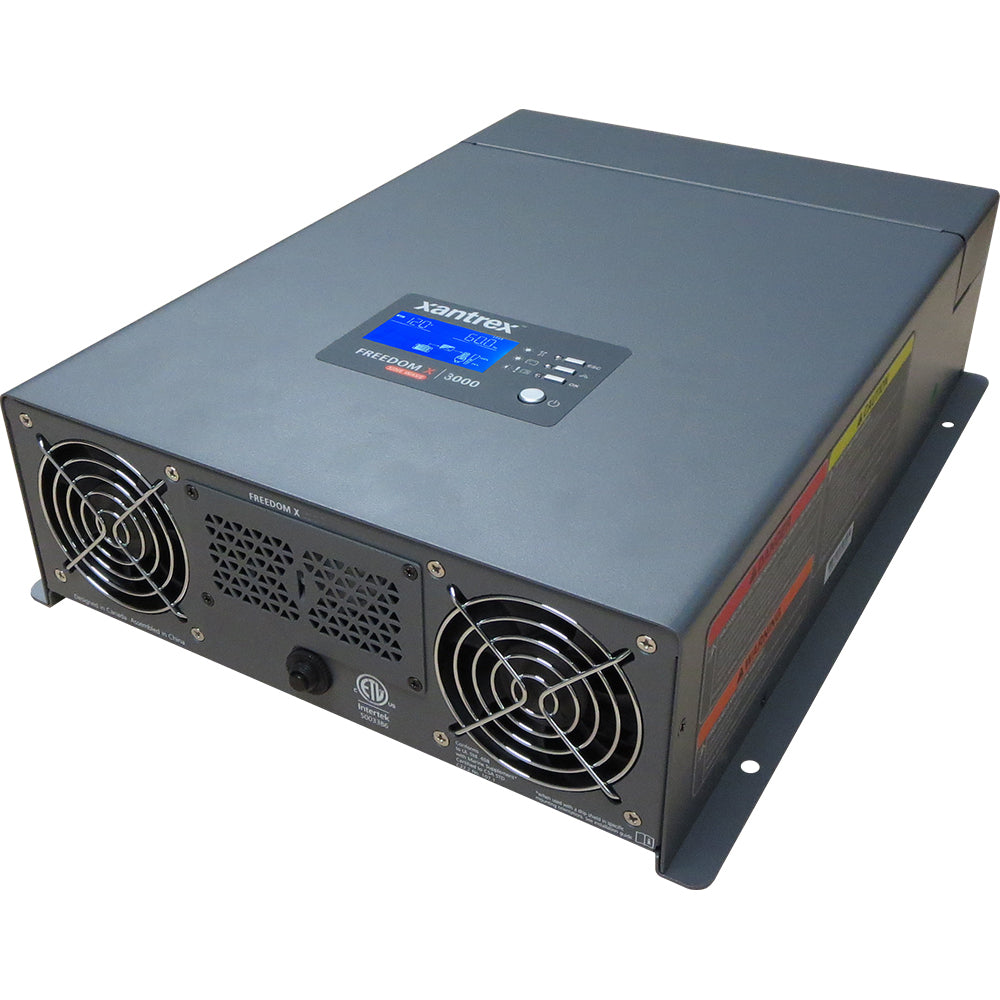

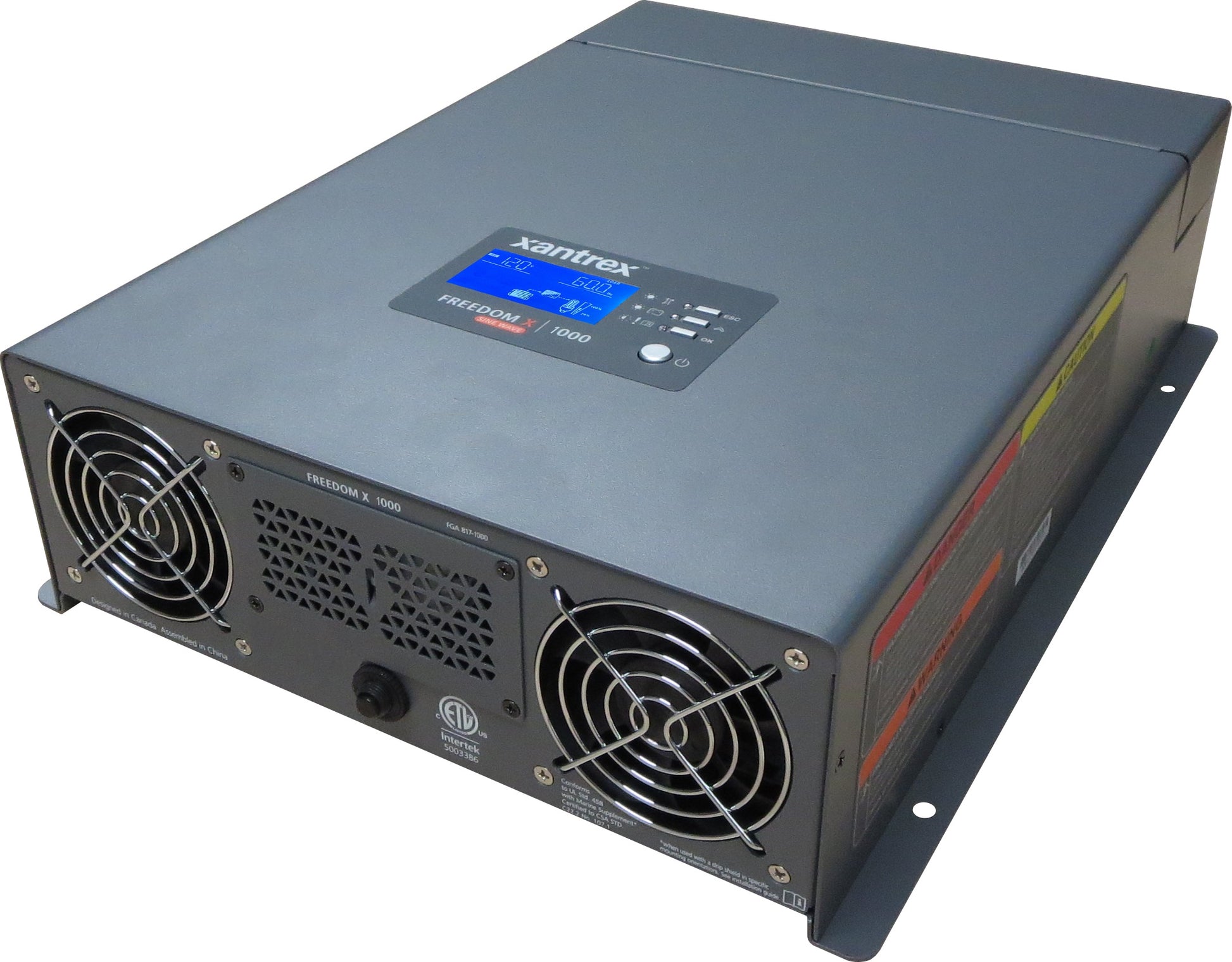

Xantrex Freedom X True Sinewave Inverters

Models:

Freedom X 1000: 1000W True Sinewave Inverter, Model 817-1000 (12VDC)
Freedom X 2000: 2000W True Sinewave Inverter, Model 817-2000 (12VDC)
Freedom X 2000-24V: 2000W True Sinewave Inverter, Model 817-2000-21 (24VDC)
Freedom X 3000: 3000W True Sinewave Inverter, Model 817-3000 (12VDC)

Product Description

The Xantrex Freedom X series delivers premium true sine wave inverter performance in lightweight compact packages designed for demanding marine, RV, and vehicle applications. Each model features extended surge rating up to 2X continuous power for 2 seconds to start motor loads like refrigerators and microwaves, ignition control via 12/24 VDC signal to minimize battery drain, and wide DC input ranges compatible with high-voltage alternators. Built-in 30A AC transfer relays automatically switch between inverter and shore/generator power with quick-connect AC terminals for fast installation. Operating reliably from -4°F to 104°F, these inverters provide clean power for sensitive electronics through huge wiring bays and robust construction.

Key Features

True sine wave output for sensitive electronics and motor loads
Extended surge rating: 2X continuous power for 2 seconds
Ignition control minimizes battery drain via 12/24 VDC signal
Wide DC input range: 10-18 VDC (12V models) or 20-32 VDC (24V model)
Built-in 30A transfer relay for automatic AC source switching
Quick-connect AC input/output terminals and large wiring bay for easy installation
High peak efficiency up to 91% with full output across wide temperature range

Comparison Table

Feature	Freedom X 1000 (817-1000)	Freedom X 2000 (817-2000)	Freedom X 2000-24V (817-2000-21)	Freedom X 3000 (817-3000)
Continuous Power	1000 W	2000 W	2000 W	3000 W
Surge Power	2000 W (2X for 2s)	4000 W (2X for 2s)	4000 W (2X for 2s)	6000 W (2X for 2s)
Continuous Current	8.4 A	16.7 A	16.7 A	25 A
Output Waveform	True Sine Wave	True Sine Wave	True Sine Wave	True Sine Wave
DC Input Voltage Range	10-18 VDC	10-18 VDC	20-32 VDC	10-18 VDC
Transfer Relay	Built-in 30 A	Built-in 30 A	Built-in 30 A	Built-in 30 A
Peak Efficiency	91%	91%	91%	91%
Dimensions (L x W x H)	14.2 x 10.6 x 3.7" (360x270x95 mm)	15.4 x 10.8 x 4.0" (390x275x102 mm)	14.6 x 10.8 x 3.9" (370x275x100 mm)	15.4 x 10.8 x 4.0" (390x275x102 mm)
Full Load DC Current	100 ADC	192 ADC	86 ADC	288 ADC
Operating Temperature	-4 to 140°F (-20 to 60°C)	-4 to 140°F (-20 to 60°C)	-4 to 140°F (-20 to 60°C)	-4 to 140°F (-20 to 60°C)
