Xantrex Freedom XC PRO Inverter/Charger 12vDC in 120vAC Out.

$1,180.95

~~$1,615.49~~ $1,180.95

Sold out

-27%

Shipping calculated at checkout.

Low stock: 3 left

Continuous Power: 2000W 2000W 3000W

Description

Xantrex Freedom XC Pro Inverter/Chargers

Model:

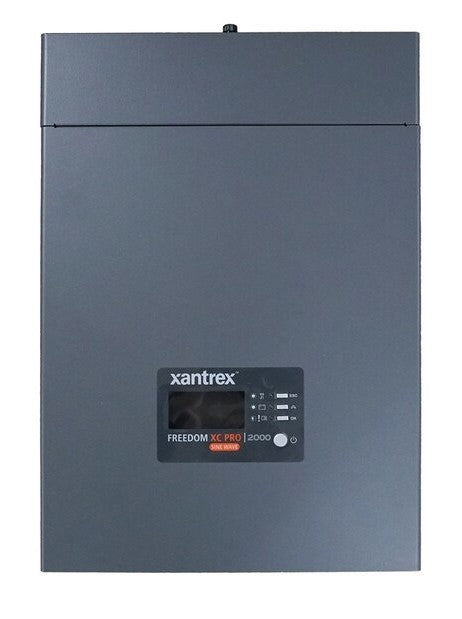

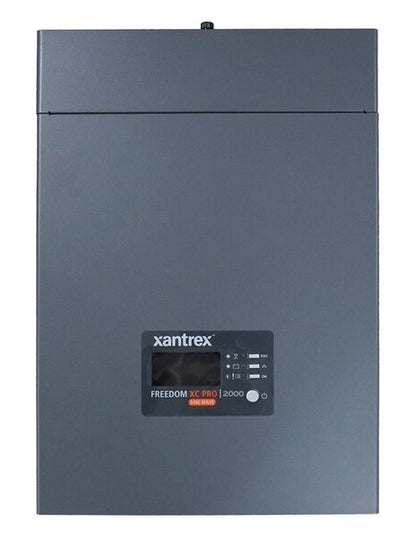

Freedom XC Pro 2000: 2000W True Sinewave Inverter with 100A Charger,
Model 818-2010

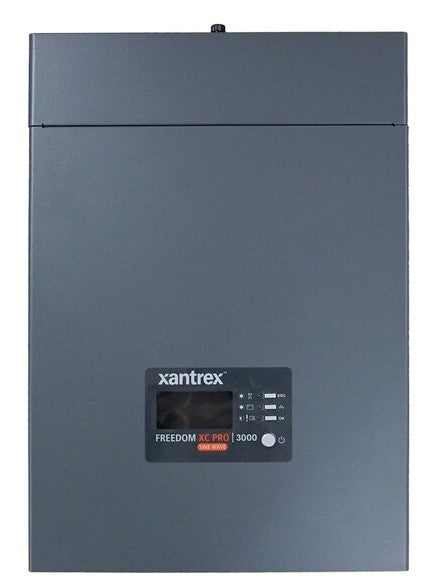

Freedom XC Pro 3000: 3000W True Sinewave Inverter with 150A Charger,
Model 818-3010

Product Description

The Xantrex Freedom XC Pro series represents the most versatile AC power solutions with RV-C and J1939 protocol support, delivering true sine wave output, extended 2X surge rating for 5 seconds to handle motor loads like A/C and refrigerators, and programmable multi-stage charging optimized for lithium ion batteries including LiFePO4. Featuring ignition control to minimize battery drain, wide 10-18 VDC input for high-voltage alternators, programmable AC under-voltage shutdown for weak shore/generator power, power factor corrected charging, dead battery recovery down to 0 Vdc, and power share functionality. The 3000W model includes a built-in 50A transfer relay while both offer quick-connect terminals, compact lightweight design, and full output from -4°F to 104°F.

Key Features

True sine wave output for sensitive electronics and motor loads
Extended surge: 2X continuous power for 5 seconds
Ignition control via 12 VDC signal minimizes battery drain
Programmable AC under-voltage shutdown (85-110 VAC) for weak power sources
Power factor corrected, 3-stage temperature compensated charging up to 18V
Supports lithium ion batteries with easy configuration and battery equalization
Dead battery charging down to 0 Vdc; power share prioritizes AC loads
RV-C/J1939 protocols; 30A (2000W) or 50A (3000W) transfer relays

Comparison Table

Feature	Freedom XC Pro 2000 (818-2010)	Freedom XC Pro 3000 (818-3010)
Continuous Power	2000 W	3000 W
Surge Power	4000 W (≤5 sec)	6000 W (≤5 sec)
Battery Charger Current	100 A (selectable 5-100A)	150 A (selectable 5-150A)
Output Waveform	True Sine Wave	True Sine Wave
Transfer Relay	30 A surge / 24 A continuous	50 A surge / 40 A continuous
DC Input Voltage Range	10.1-18.0 VDC	10.1-18.0 VDC
Peak Efficiency	91%	91%
Full Load Efficiency	≥86%	≥84%
Dimensions (L x W x H w/o flanges)	15.4 x 10.8 x 4.9" (390x275x125 mm)	15.4 x 10.8 x 4.9" (390x275x125 mm)
Operating Temperature	-4 to 140°F (-20 to 60°C)	-4 to 140°F (-20 to 60°C)
