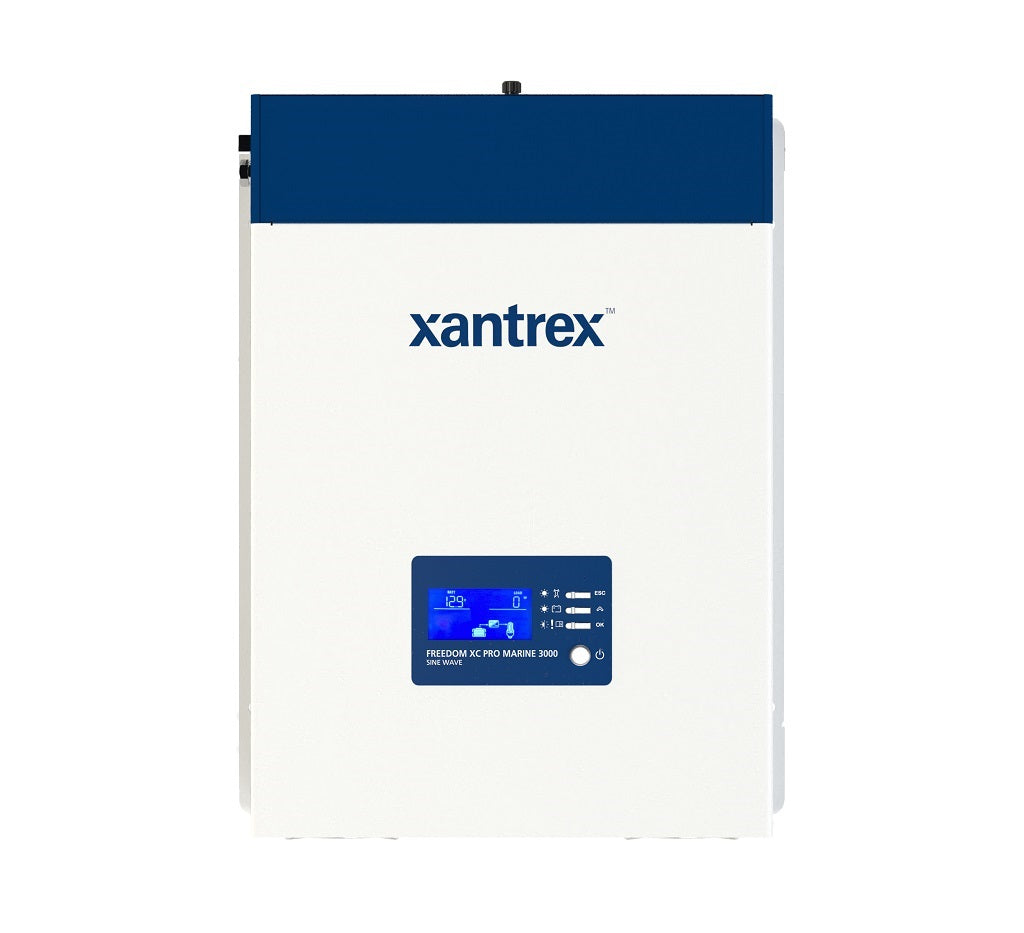

Xantrex Freedom XC PRO Marine Inverter/Charger 12vDC in 120vAC Out.

$1,156.95

~~$2,628.07~~ $1,156.95

Sold out

-56%

Shipping calculated at checkout.

Low stock: 2 left

Continuous Power: 2000W 2000W 3000W

Description

Xantrex Freedom XC PRO Marine Inverter/Chargers

Model:

Freedom XC PRO Marine 2000: 2000W True Sinewave Inverter with 100A Charger, Model 818-2015
Freedom XC PRO Marine 3000: 3000W True Sinewave Inverter with 150A Charger, Model 818-3015

Product Description

The Xantrex Freedom XC PRO Marine series delivers marine-optimized true sine wave inverter/chargers with CANbus NMEA 2000 protocol for seamless integration with third-party monitoring systems, extended 2X surge rating for 5 seconds to handle A/C and refrigerator compressor loads, and Bluetooth app configuration via optional remote panel. Featuring ignition control, wide 10-18 VDC input for high-voltage alternators, programmable AC under-voltage shutdown, power factor corrected multi-stage charging optimized for lithium ion batteries, dead battery recovery down to 0 Vdc, and power share functionality. Both models offer quick-connect terminals, compact lightweight design, full output from -4°F to 104°F, and Micro-C NMEA 2000 connectors for marine network integration.

Key Features

True sine wave output for sensitive electronics and motor loads
Extended surge: 2X continuous power for 5 seconds
CANbus NMEA 2000 protocol with Micro-C connector for marine integration
Ignition control via 12 VDC signal minimizes battery drain
Programmable AC under-voltage shutdown (85-110 VAC) for weak shore/generator power
Power factor corrected, 3-stage temperature compensated charging up to 18V
Supports lithium ion batteries with easy configuration and battery equalization
Dead battery charging down to 0 Vdc; power share prioritizes AC loads
Bluetooth app configuration via optional remote panel (808-0817-02)

Comparison Table

Feature	Freedom XC PRO Marine 2000 (818-2015)	Freedom XC PRO Marine 3000 (818-3015)
Continuous Power	2000 W	3000 W
Surge Power	4000 W (≤5 sec)	6000 W (≤5 sec)
Battery Charger Current	100 A (selectable 5-100A)	150 A (selectable 5-150A)
Output Waveform	True Sine Wave	True Sine Wave
Transfer Relay	30 A surge / 24 A continuous	50 A surge / 40 A continuous
DC Input Voltage Range	10.1-18.0 VDC	10.1-18.0 VDC
Peak Efficiency	91%	91%
Full Load Efficiency	≥86%	≥84%
Dimensions (L x W x H w/o flanges)	15.4 x 10.8 x 4.9" (390x275x125 mm)	15.4 x 10.8 x 4.9" (390x275x125 mm)
Marine Protocol	NMEA 2000 CANbus	NMEA 2000 CANbus
Operating Temperature	-4 to 140°F (-20 to 60°C)	-4 to 140°F (-20 to 60°C)
