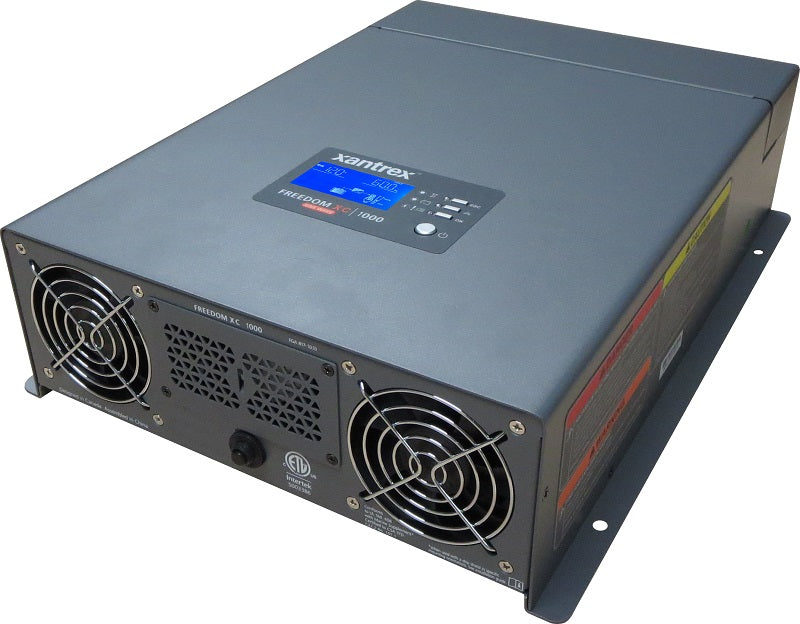

Xantrex Freedom XC True Sinewave Inverter/Chargers.

$878.95

~~$1,152.87~~ $878.95

Sold out

-24%

Shipping calculated at checkout.

Low stock: 6 left

Charger Current: 80A 50A 80A

Description

Xantrex Freedom XC True Sinewave Inverter/Chargers

Model:

Freedom XC 1000: 1000W True Sinewave Inverter with 50A Charger,
Model 817-1050
Freedom XC 2000: 2000W True Sinewave Inverter with 80A Charger,
Model 817-2080

Product Description

The Xantrex Freedom XC series offers premium true sine wave inverter/charger performance in a lightweight and compact design, ideal for vehicle and marine power systems requiring reliable, clean power for sensitive and motor loads. Both models feature an extended surge rating that allows surging up to twice continuous power for 2 seconds to start motor-driven devices like refrigerators and microwaves. Equipped with ignition control, the inverter can be turned on/off with a 12 VDC signal, reducing battery drain by disabling when the ignition is off. The wide 10-18 VDC input range supports operation on high voltage alternators common in modern vehicle chassis. A built-in 30A AC transfer relay automatically switches load between inverter and incoming AC power from shore or generator. Convenient quick-connect AC terminals and a large wiring bay enable fast and easy installation. The advanced power factor corrected multi-stage battery charger optimizes shore power use and battery health, and is programmable to accommodate various battery chemistries with temperature compensation and equalization capabilities. The inverter can even charge dead batteries down to 0 Vdc, while the power share feature prioritizes AC loads by regulating charge current.

Key Features

True sine wave output for sensitive electronics and motor loads
Extended surge rating: 2X continuous power for 2 seconds
Ignition control to minimize battery drain
Wide 10-18 VDC input for compatibility with high-voltage alternators
Built-in 30A transfer relay automatically switches between inverter and shore/generator power
Quick-connect AC input/output terminals for easy wiring
Power factor corrected, multi-stage programmable battery charger with temperature compensation and equalization
Capable of charging dead batteries down to 0 Vdc
Power sharing feature prioritizes loads and limits total input current

Comparison Table

Feature	Freedom XC 1000 (817-1050)	Freedom XC 2000 (817-2080)
Continuous Power	1000 W	2000 W
Surge Power	2000 W (2X continuous for 2s)	4000 W (2X continuous for 2s)
Battery Charger Current	50 A (programmable 5-50A)	80 A (programmable 5-80A)
Output Waveform	True Sine Wave	True Sine Wave
Input Voltage Range	10-18 VDC	10-18 VDC
Transfer Relay	Built-in 30 A AC transfer relay	Built-in 30 A AC transfer relay
Operating Temperature Range	-4 to 140 °F (-20 to 60 °C)	-4 to 140 °F (-20 to 60 °C)
Dimensions (L x W x H)	14.2" x 10.6" x 3.7" (360x270x95 mm)	15.4" x 10.8" x 4.0" (390x275x102 mm)
Weight	Lightweight compact design	Slightly larger due to higher power
Ignition Control	Yes, via 12 VDC signal	Yes, via 12 VDC signal
Power Factor Corrected Charging	Yes, multi-stage with temp compensation	Yes, multi-stage with temp compensation
Dead Battery Charging	Yes, down to 0 Vdc	Yes, down to 0 Vdc
Power Share Function	Yes, prioritizes AC loads	Yes, prioritizes AC loads
