Xantrex Battery Monitors.

Xantrex LinkLITE and LinkPRO Battery Monitors

Model:

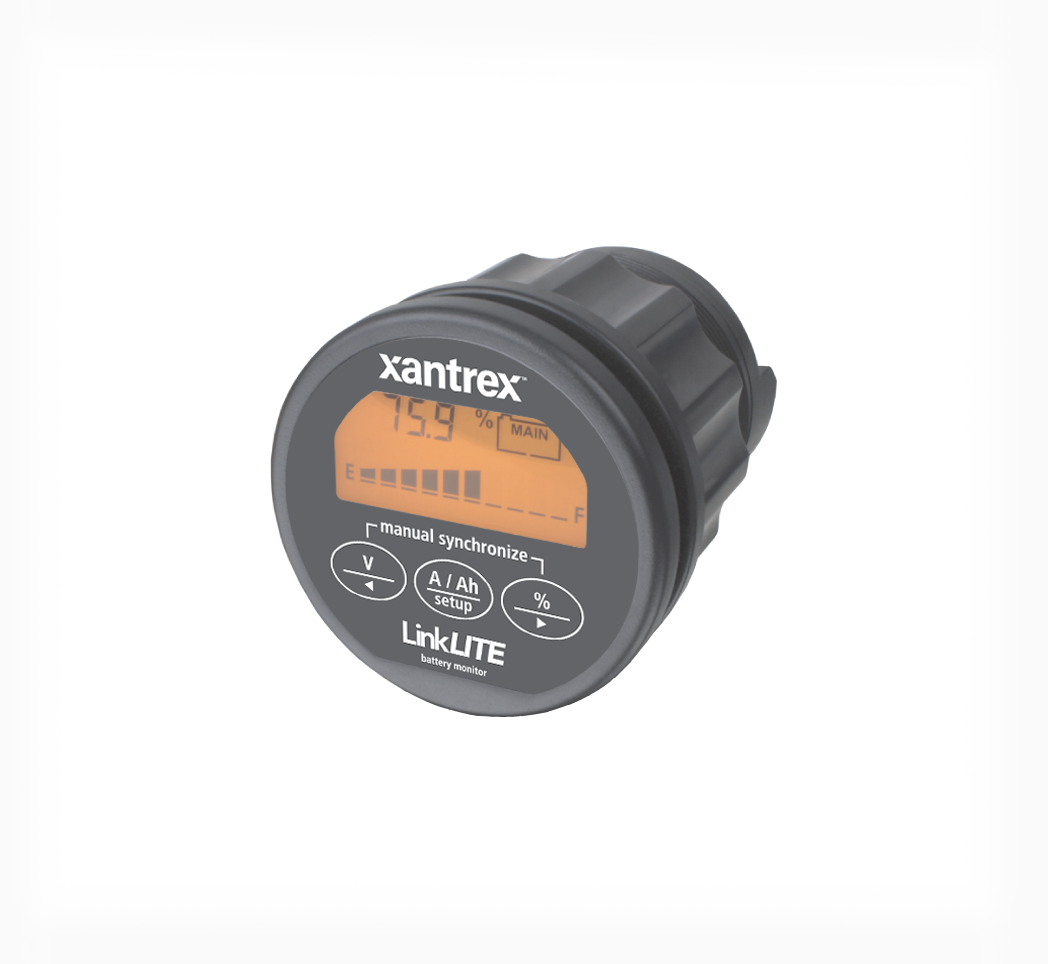

• LinkLITE: 1000A Battery Monitor, Model 84-2030-00

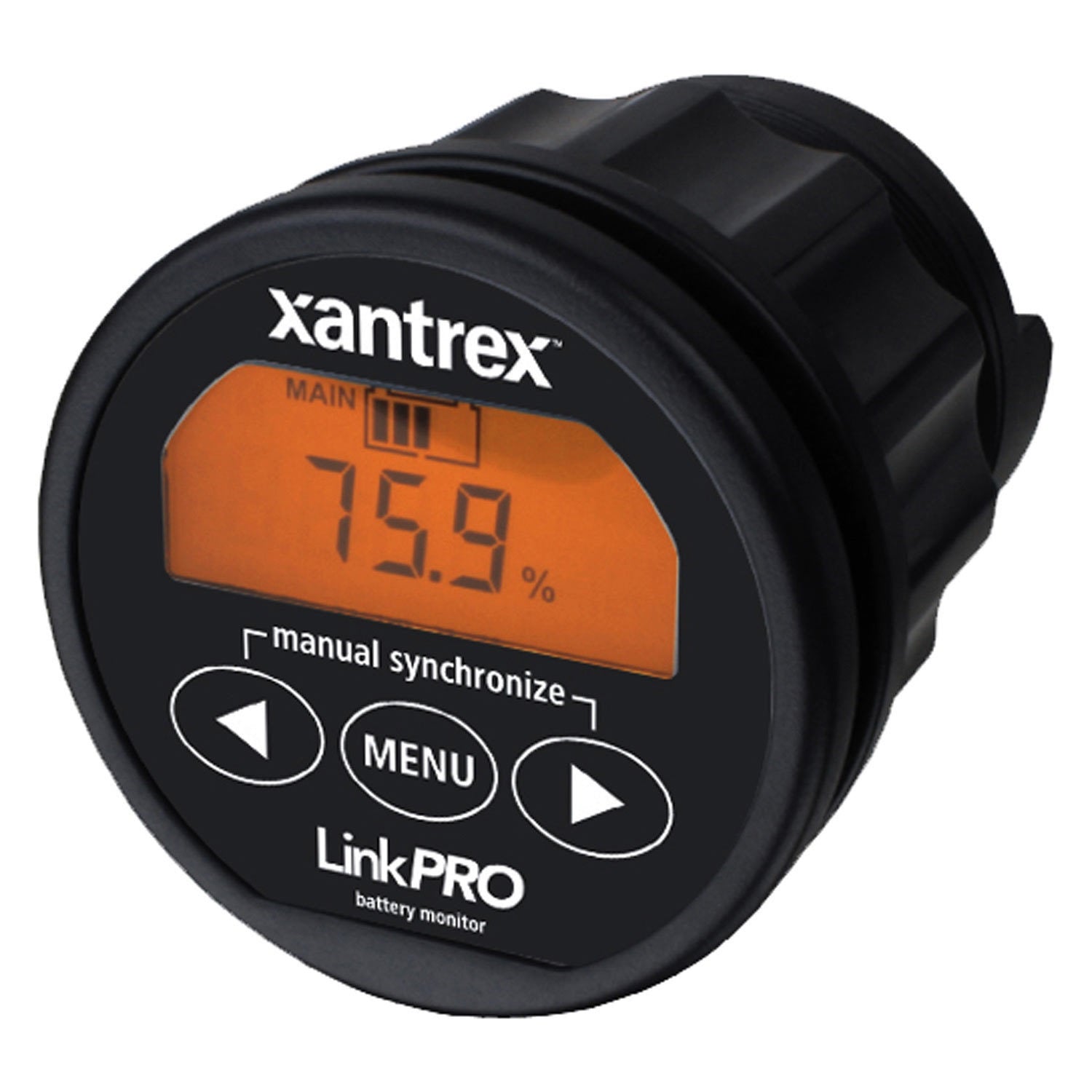

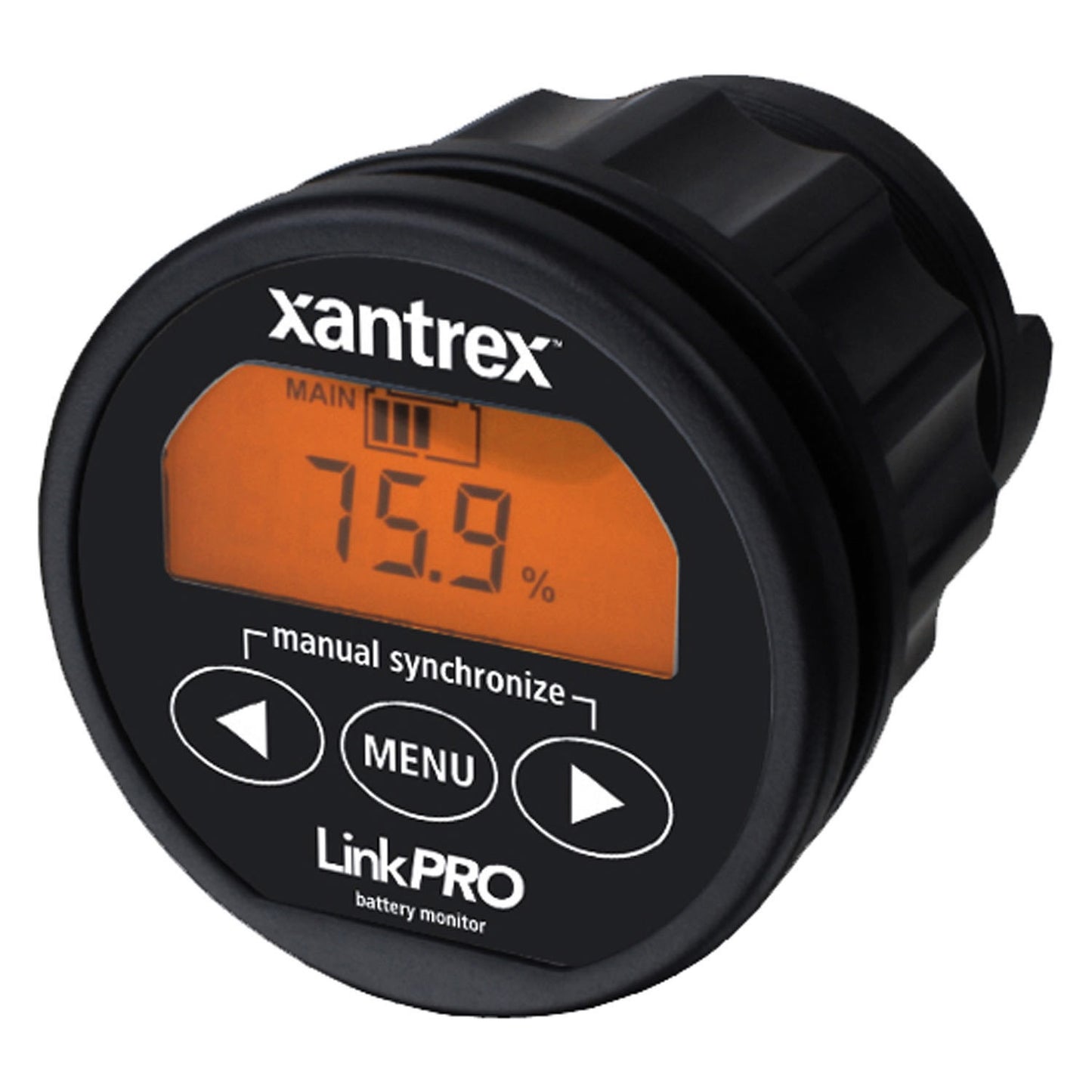

• LinkPRO: 10,000A Battery Monitor, Model 84-2031-00

Product Description

The Xantrex LinkLITE and LinkPRO battery monitors provide precise battery status monitoring like a fuel gauge, displaying voltage, charge/discharge current, consumed amp hours, and remaining battery capacity with advanced algorithms accounting for battery age, temperature, and discharge rates. Both models feature shunt selection for flexible integration (up to 1,000A for LinkLITE, 10,000A for LinkPRO), dual battery voltage inputs, large backlit LCD displays, and programmable alarm relays to auto-start generators or shut down devices at set voltage boundaries. The LinkPRO adds time-remaining display, history logging, communication port, and battery temperature sensor input. Both include a 500A shunt and offer splash-proof front panels with quick nut mounting for marine and RV applications.

Key Features

• Displays voltage, current, consumed amp hours, and remaining battery capacity

• Secondary battery bank voltage monitoring with auto-sensing inputs

• Large backlit LCD display with intuitive button interface

• Programmable alarm relay for generator start or load shutdown

• Shunt selection: up to 1,000A (LinkLITE) or 10,000A (LinkPRO)

• Splash-proof front panel and quick nut mounting construction

• 500 Amp shunt included; CE and e-mark certified

• LinkPRO additional: Time remaining, history events, communication port, battery temperature sensor

Comparison Table

What's In The Box

• One Xantrex Link battery monitor (model as ordered)

• 500 Amp shunt

• Installation hardware and mounting nuts

• User guide and quick start documentation
