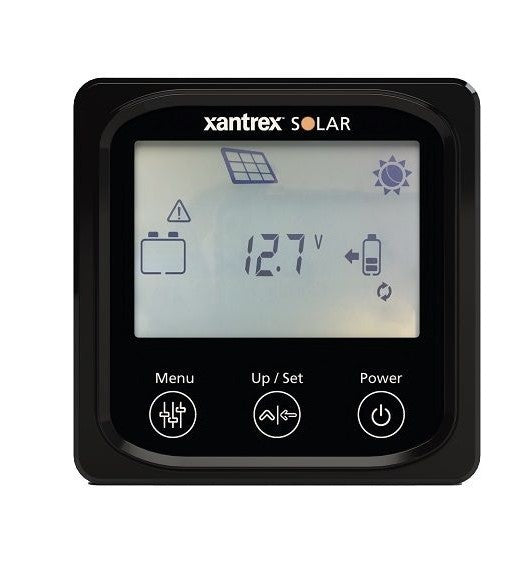

Xantrex Solar MPPT Remote Panel with 25ft Cable

Product Description

The Xantrex Solar MPPT Remote Panel provides real-time monitoring of MPPT charge controllers via a dedicated LCD display and control interface.

Product Overview

This remote panel enables boaters to track solar array performance, battery status, and charging parameters from a convenient helm location, optimizing off-grid power management for marine vessels with solar installations.

Key Specifications

• Includes 25 ft (7.6 m) communication cable for remote mounting

• LCD display shows PV voltage, current, power, battery SOC, and charging stages

• Compact dimensions: 98 × 98 mm (3.8 × 3.8 inches)

• Low power consumption: 10mA at 5VDC

Technical Specifications

• Buttons: Menu, Up/Set, Power/Standby for navigation and configuration

• Operating temperature: -20 to 70°C; IP20 protection rating

• Compatible with Xantrex Solar MPPT 30A/60A charge controllers


What's in the Box

• MPPT Remote Panel (710-0010)

• 25 ft communication cable

• Mounting hardware
