Xantrex Solar Charge Controllers.

Xantrex Solar Charge Controllers

Model:

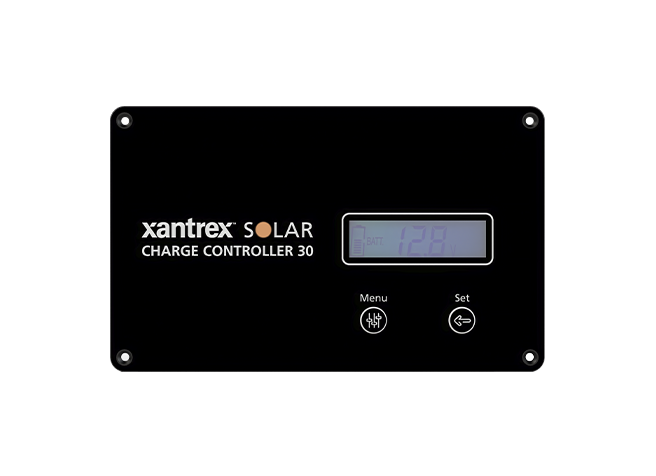

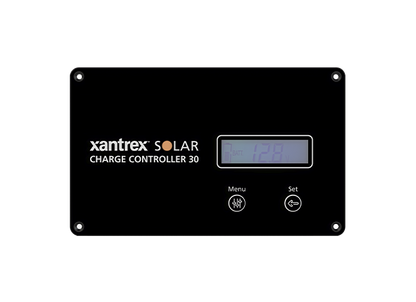

• PWM Charge Controller: 30A PWM,
  Model 709-3024-01

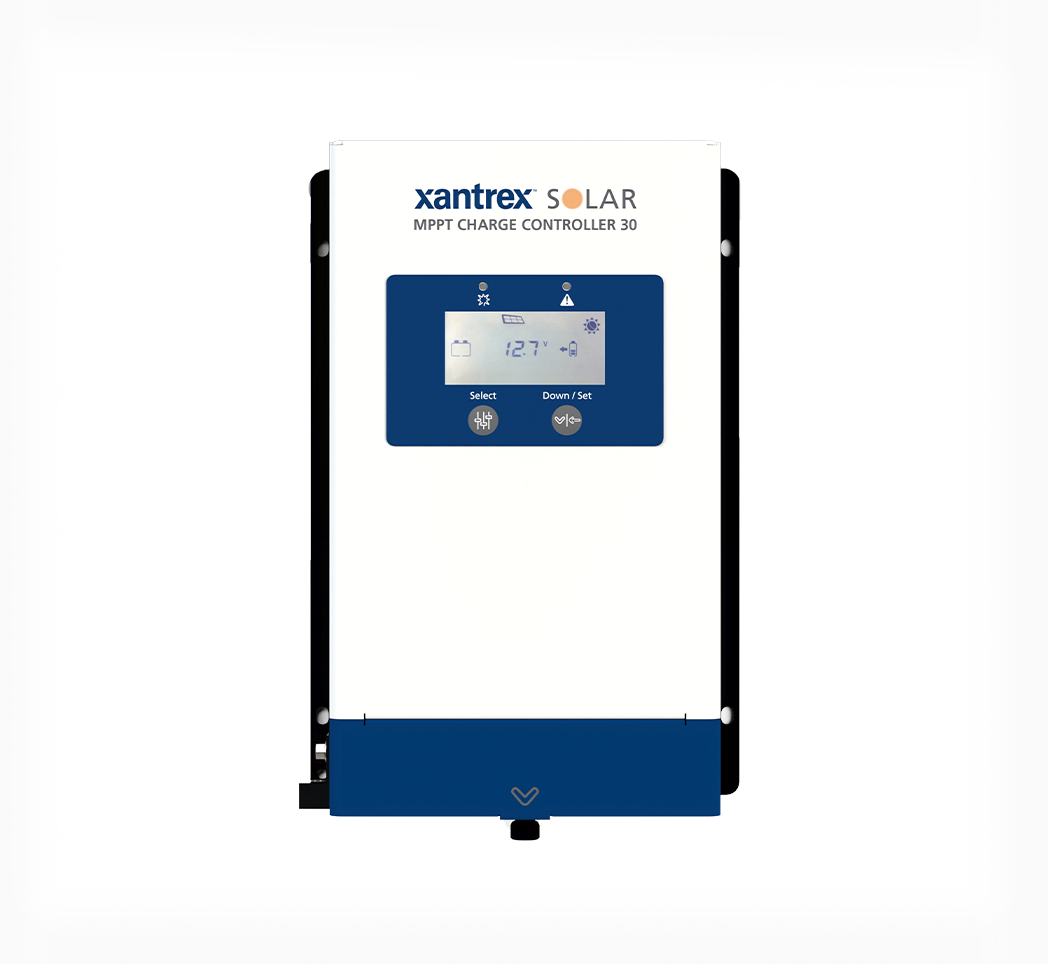

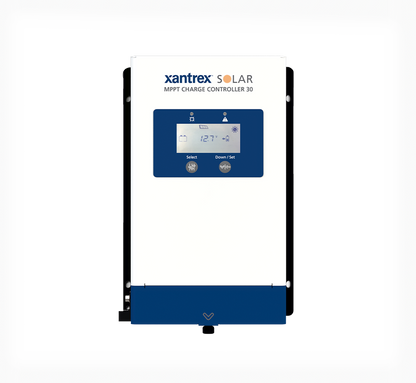

• MPPT Charge Controller: 30A MPPT, Dual-Bank,
  Model 710-3024-01

Product Description

The Xantrex Solar 30A charge controller lineup offers two advanced options for RV, marine, and mobile power systems: a PWM controller for cost-effective, reliable charging and an MPPT controller for maximum energy harvest and dual-bank battery support. Both models feature an aesthetic flush-mount design, integrated LCD displays for real-time system data, best-in-class PV and battery protections, and support for multiple battery chemistries including sealed AGM, gel, flooded, and lithium iron phosphate (LiFePO4). The PWM model provides efficient multi-stage charging (bulk, absorption, float, equalization) for a single bank, while the MPPT model adds high-efficiency maximum power point tracking, higher PV input voltages, and simultaneous charging of house and starter batteries for more flexible and powerful solar system configurations.

Key Features

• Advanced multi-stage charging (bulk, absorption, float, equalization)

• Supports Sealed (AGM), Gel, Flooded, and LiFePO4 batteries

• Integrated LCD display with real-time PV, battery, and charging data

• Best-in-class PV array and battery protections (over/under-voltage, overcurrent, etc.)

• Aesthetic flush-mount industrial design for RV and marine interiors

• Optional remote battery temperature sensor for accurate temperature compensation

Comparison Table

What’s In The Box

• One Xantrex solar charge controller (PWM 709-3024-01 or MPPT 710-3024-01, as ordered)

• Mounting hardware

• User/installation manual
