Xantrex Truecharge3 24v Battery Chargers.

$649.95

~~$1,222.81~~ $649.95

Sold out

-47%

Shipping calculated at checkout.

Low stock: 1 left

Output Current: 20A 10A 20A 30A

Description

Xantrex Truecharge3 24V Battery Chargers

Model:

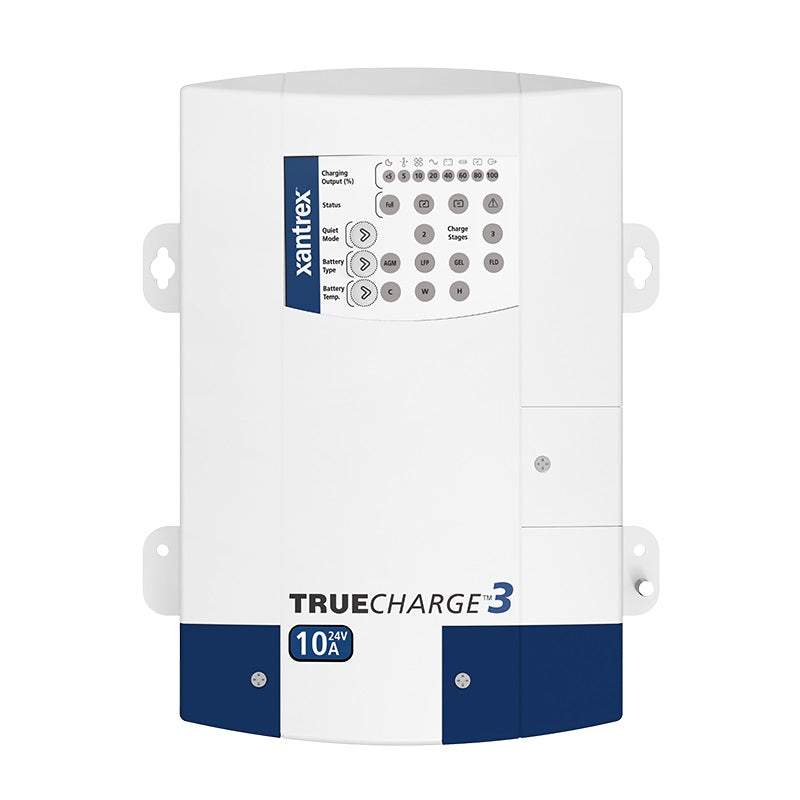

Truecharge3 10A Single Bank: Model 804-2410-10
Truecharge3 20A 3-Bank: Model 804-2420-10

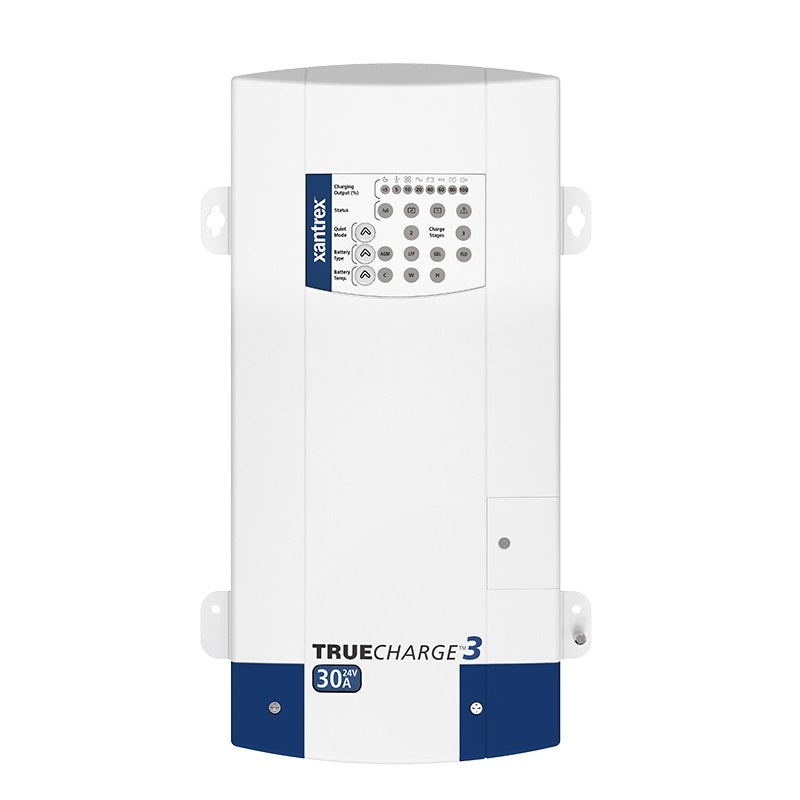

Truecharge3 30A 3-Bank: Model 804-2430-10

Product Description

The Xantrex Truecharge3 24V series provides compact, drip-proof battery chargers with power factor corrected multi-stage charging (bulk, absorption, float, equalization) compatible with Gel, Flooded, AGM, and Lithium-Ion batteries. Engineered for global marine and RV applications, these chargers accept wide 90-265 Vac input (47-63 Hz) for reliable operation on shore/generator power worldwide, featuring low electrical interference, circuit breaker protection against surges/spikes, temperature compensation, and optional remote panels. The 10A model offers single-bank charging while 20A/30A models provide 3 independent battery banks with flexible multi-position mounting.

Key Features

Lithium-ion battery compatible with automatic 3-stage charging
Wide AC input: 90-265 Vac, 47-63 Hz for global shore/generator compatibility
Power factor corrected, >80% efficient multi-stage charging
Drip-proof design with multi-position mounting flexibility
Built-in circuit breaker and surge/spike protection
Temperature compensation (3 settings); optional remote panel
Parallel stack up to 2 chargers for increased capacity
Easy-to-read display for real-time charging status

Comparison Table

Feature	Truecharge3 10A Single (804-2410-10)	Truecharge3 20A 3-Bank (804-2420-10)	Truecharge3 30A 3-Bank (804-2430-10)
Output Current (Nominal)	10 A (1 bank)	20 A (3 banks)	30 A (3 banks)
Charge Voltage Range	28.4-31.0 Vdc	28.4-31.0 Vdc	28.4-31.0 Vdc
Float Voltage Range	26.8-27.6 Vdc	26.8-27.6 Vdc	26.8-27.6 Vdc
Equalize Voltage	32 Vdc	32 Vdc	32 Vdc
Battery Bank Outputs	1 bank	3 banks	3 banks
Min Recommended Battery Size	20 Ah	40 Ah	60 Ah
Charger Efficiency	>80%	>80%	>80%
AC Input Voltage	90-265 Vac (47-63 Hz)	90-265 Vac (47-63 Hz)	90-265 Vac (47-63 Hz)
Operating Temperature	32-140°F (0-60°C)	32-140°F (0-60°C)	32-140°F (0-60°C)
Weight	4.8 lb (2.2 kg)	4.8 lb (2.2 kg)	9.9 lb (4.5 kg)
Dimensions (H x W x L)	2.8 x 6.7 x 9.8" (70x170x250 mm)	2.8 x 6.7 x 9.8" (70x170x250 mm)	3.5 x 6.7 x 13.4" (90x170x340 mm)
