Xantrex Truecharge3 3-Bank 12v Battery Chargers.

$318.95

~~$815.21~~ $318.95

Sold out

-61%

Shipping calculated at checkout.

Low stock: 1 left

Output Current: 20A 20A 40A 60A

Description

Xantrex Truecharge3 3-Bank 12V Battery Chargers

Model:

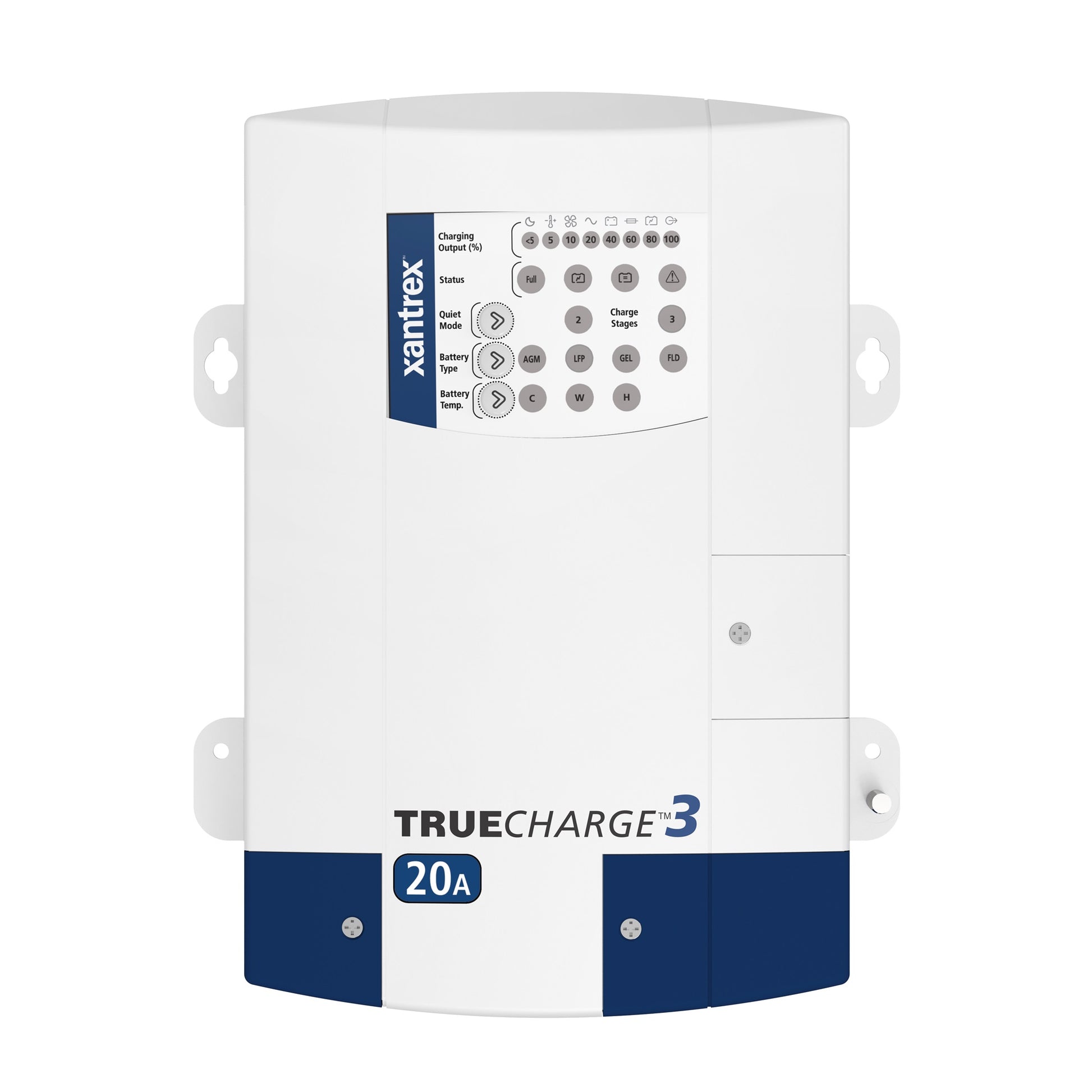

Truecharge3 20A 3-Bank: Model 804-1220-10

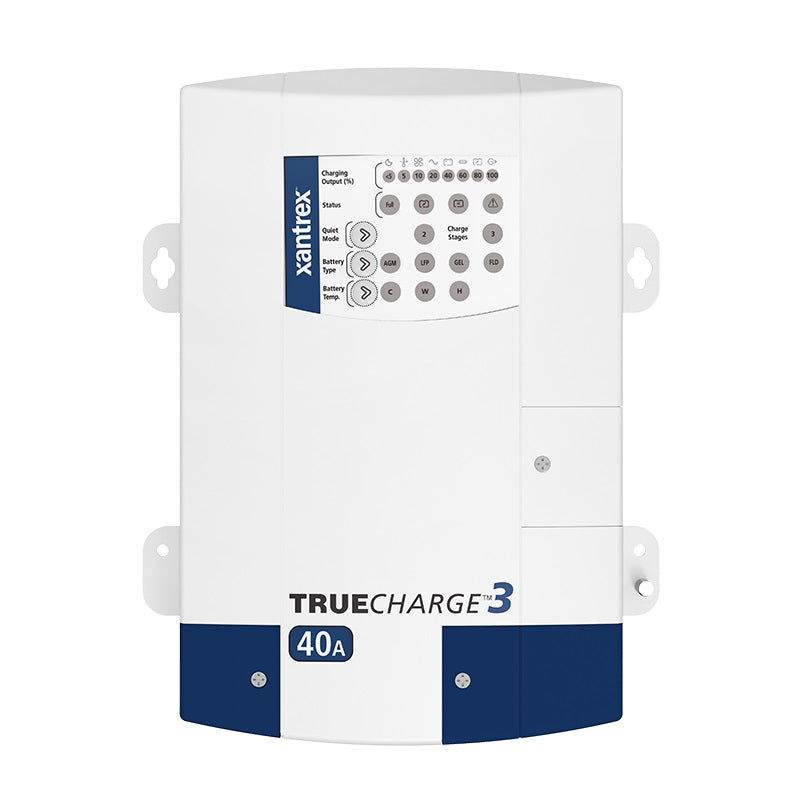

Truecharge3 40A 3-Bank: Model 804-1240-10

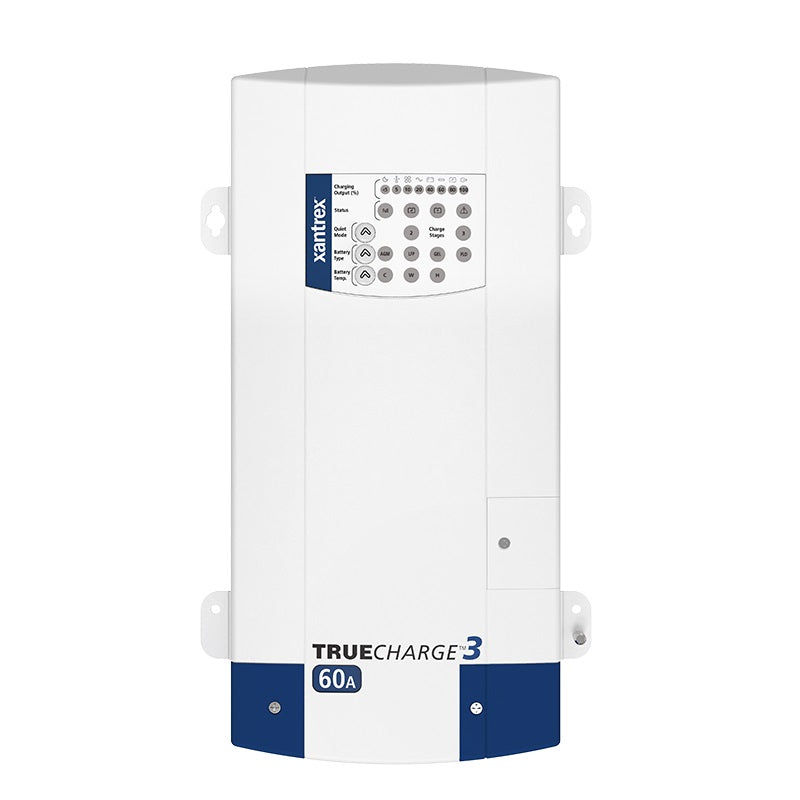

Truecharge3 60A 3-Bank: Model 804-1260-10

Product Description

The Xantrex Truecharge3 series offers compact, drip-proof 3-bank 12V battery chargers with power factor corrected multi-stage charging (bulk, absorption, float, equalization) compatible with Gel, Flooded, AGM, and Lithium-Ion batteries. Designed for global recreational and commercial marine/RV applications, these chargers accept wide 90-265 Vac input (47-63 Hz) for reliable operation on poor-quality shore/generator power worldwide. Featuring low electrical interference, circuit breaker protection against surges/spikes, three independent battery bank outputs, temperature compensation settings, and optional remote panels, they provide efficient charging (>80% efficiency) with flexible multi-position mounting in harsh environments.

Key Features

Lithium-ion battery compatible with automatic 3-stage charging
3 independent battery banks (3 positive / 1 shared negative terminals)
Wide AC input: 90-265 Vac, 47-63 Hz for global shore/generator power
Power factor corrected, >80% efficient multi-stage charging
Drip-proof design with multi-position mounting flexibility
Built-in circuit breaker and surge/spike protection
Temperature compensation (3 settings); optional remote panel
Parallel stack up to 2 chargers for increased capacity

Comparison Table

Feature	Truecharge3 20A (804-1220-10)	Truecharge3 40A (804-1240-10)	Truecharge3 60A (804-1260-10)
Output Current (Nominal)	20 A	40 A	60 A
Charge Voltage Range	14.2-15.5 Vdc	14.2-15.5 Vdc	14.2-15.5 Vdc
Float Voltage Range	13.4-13.8 Vdc	13.4-13.8 Vdc	13.4-13.8 Vdc
Equalize Voltage	16 Vdc	16 Vdc	16 Vdc
Battery Bank Outputs	3 banks	3 banks	3 banks
Min Recommended Battery Size	40 Ah	80 Ah	120 Ah
Charger Efficiency	>80%	>80%	>80%
AC Input Voltage	90-265 Vac (47-63 Hz)	90-265 Vac (47-63 Hz)	90-265 Vac (47-63 Hz)
Operating Temperature	32-140°F (0-60°C)	32-140°F (0-60°C)	32-140°F (0-60°C)
Weight	4.8 lb (2.2 kg)	4.8 lb (2.2 kg)	9.9 lb (4.5 kg)
Dimensions (H x W x L)	2.8 x 6.7 x 9.8" (70x170x250 mm)	2.8 x 6.7 x 9.8" (70x170x250 mm)	3.5 x 6.7 x 13.4" (90x170x340 mm)
