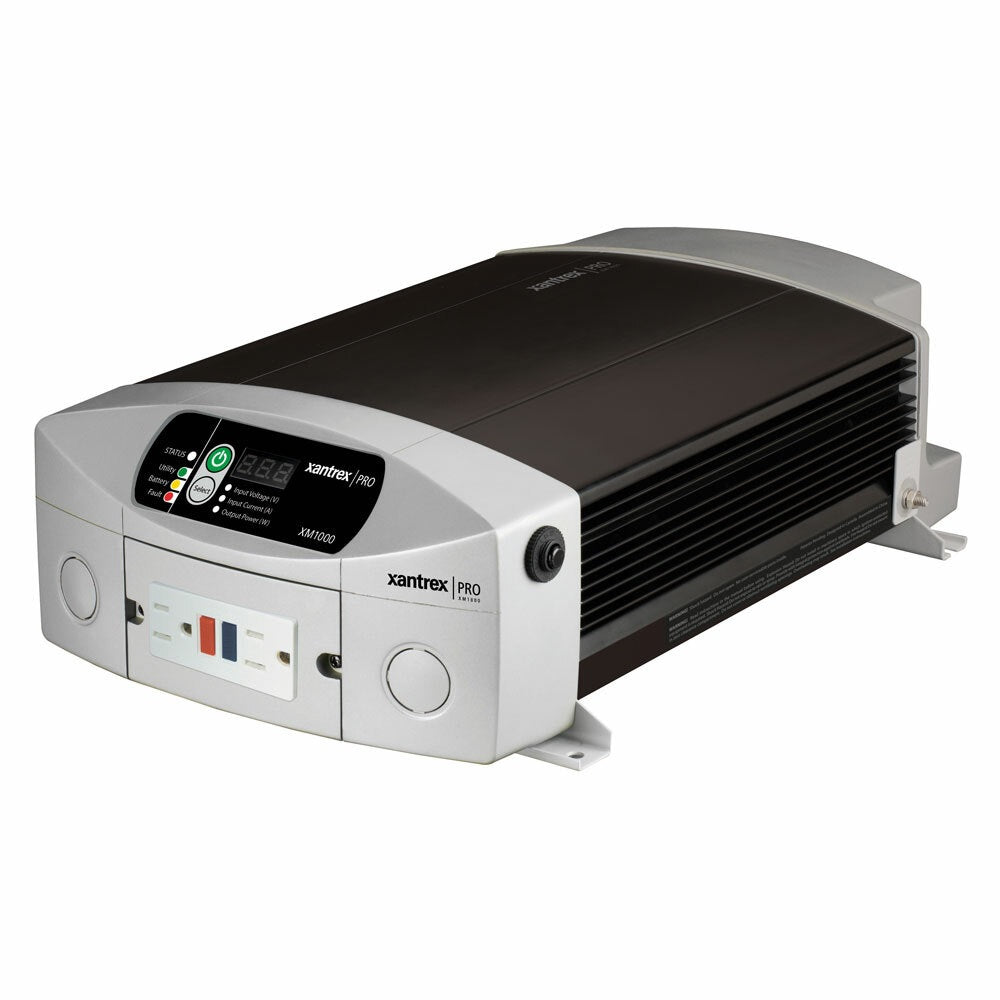

Xantrex XM Series PRO Inverters Modified Sinewave.

$429.95

~~$1,034.82~~ $429.95

Sold out

-58%

Shipping calculated at checkout.

Low stock: 2 left

Continuous Power: 1000 W 1000 W 1800 W

Description

Xantrex XM Series PRO Inverters

Model:

XM1000: 1000W Modified Sine Wave Inverter,
Model: 806-1010
XM1800: 1800W Modified Sine Wave Inverter,
Model: 806-1810

Product Description

The Xantrex XM Series PRO Inverters provide quiet, efficient household power when shore power is unavailable, ideally complementing generators in RV and marine applications. Designed for user-friendly, versatile installation, these inverters feature a detachable digital remote control that displays precise inverter, AC source, and battery status from a convenient remote location. Their automatic built-in transfer switch seamlessly detects changes in generator or shore power to ensure uninterrupted power availability. Both 1000W and 1800W models are engineered to withstand demanding marine and RV environments, featuring conformal coated circuit boards to resist moisture and meet FCC Class B and UL 458 safety certifications. They offer horizontal or vertical mounting flexibility to fit any compartment.

Key Features

Powers TVs, small appliances, and electronics efficiently with 1000W or 1800W output
Built-in 15-amp circuit breaker for GFCI load protection
Up to 25A pass-through capacity for hardwired loads
Detachable digital remote control displays power output, AC source, and battery voltage
Conformal coated electronics for moisture resistance and durability
Designed for hardwired or GFCI receptacle connection (GFCI receptacle included)
Automatic transfer switch ensures power supply continues from inverter or utility
Comprehensive protection including battery over/under-voltage, overload, short-circuit, thermal shutdown, and ground-fault

Comparison Table

Feature	XM1000 (806-1010)	XM1800 (806-1810)
Continuous Power	1000 W	1800 W
Surge Power	2000 W	3600 W
Output Current (Continuous)	8.3 A	15 A
Output Voltage (No Load)	115 V +/- 10 V	115 V +/- 10 V
Output Frequency	60 Hz +/- 1 Hz	60 Hz +/- 1 Hz
Output Waveform	Modified Sine Wave	Modified Sine Wave
Peak Efficiency	88%	88%
Weight	7.5 lb	9.5 lb
Dimensions (H x W x D)	4 x 8.3 x 13 in (103x211x329 mm)	4 x 8.3 x 15.5 in (103x211x393 mm)
Transfer Relay Rating	15-25 A	20-25 A
Input Operating Voltage Range	11.0-15.5 VDC	11.0-15.5 VDC
Mounting Orientation	Horizontal or vertical	Horizontal or vertical
